732E Eccentric Control Valve Positioner ANSI / ASME Class 150 - 1500 Body Rating

Basic Information
Place of Origin: China
Brand Name: KOSO
Certification: CE
Model Number: 732E
Minimum Order Quantity: 1 set
Packaging Details: One 732E eccentric PARA-SEAL butterfly valve for KOSO control valve with Flowserve APEX4000 series positioner packed with one fumigation wooden box.
Delivery Time: 7 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/Month
Name: 732E Eccentric PARA-SEAL Butterfly Valve For KOSO Control Valve With Flowserve APEX4000 Series Positioner Type: 732E
Body Size: 3"(80A)~96"(2400A) Body Rating: ANSI/ASME Class 150~1500
Fluid Temperature: -196~600° Connections: RF RTJ
Body Materials: SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M Etc. Disc Treatment: Chrome Plated Or Stellited
Disc Materials: SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M Etc. Seat Leakage: FCI70-2 CLASS V Or CLASS VI
High Light:

digital valve positioner

,

smart valve positioner

732E eccentric PARA-SEAL butterfly valve for KOSO

control valve with Flowserve APEX4000 series positioner





   SPECIFICATION



Body Type 732E
Body Size 3"(80A)~96"(2400A)
Rating ANSI/ASME Class 150~1500
Temperature -196~600°
Connection RF RTJ
Body materials SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M etc.
Disc materials SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M etc.
Disc treatment Chrome plated or Stellited
Range ability 60° Opening/25:1
90° Opening/50:1
Flow characteristics Approximate Eq% (Inherent Characteristic)
Seal ring type Laminated or Metal
Seal ring materials SUS316L/Graphite or SUS630/PH
Seat leakage FCI70-2 CLASS V or CLASS VI
Actuator combination 6300RB, 6400RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator; 3500RB, 3600RB: Solid State Electronic Actuator; 5200RA: Pneumatic Diaphragm Actuator

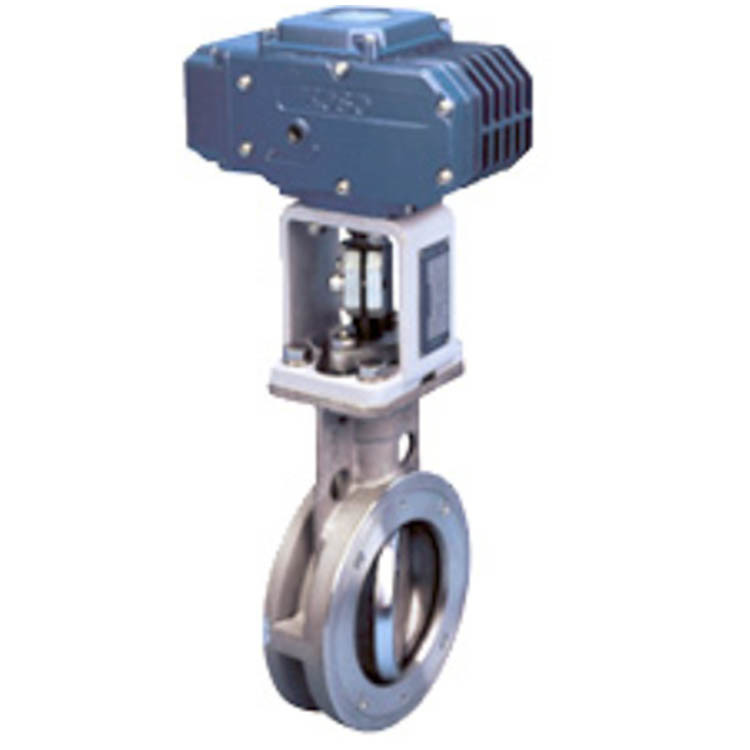

732E Eccentric Control Valve Positioner ANSI / ASME Class 150 - 1500 Body Rating 0
