Explosion Proof ABB Smart Valve Positioner EDP300 With HART Communication

Basic Information
Place of Origin: America
Brand Name: ABB
Certification: CE EAC
Model Number: TZIDC 200,210,
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 7 to 20 Work days
Payment Terms: L/C, T/T, D/A, D/P, MoneyGram
Supply Ability: 500 Set Per Month
Set Point: 4 To 20 MA Valve Travel: 3.6 To 300 Mm
Opening Angle: 24 To 100° Material: Aluminum
Communication: HART® Field Communication Protocol
High Light:

digital valve positioner

,

smart valve positioner

Explosion-proof ABB smart Digital Valve Positioner EDP300 with HART communication



Product Introduction


The PositionMaster EDP300 is an electronically configurable positioner with communication capabilities, designed for mounting on pneumatic linear or part-turn actuators. It features a compact design, modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the actuator allow for considerable time savings as well as optimum control behavior.





Quick Details


Place of Origin Sweden
Brand Name ABB
Model Number EDP300
Diagnostics 5 Pressure Sensors
Materials Case/Cover: - Aluminum ASTM 360
Welded BW or SW
Operating Temperature Standard Temperature
Screwed NPT 1/4" through 2" (20 through 50 mm)
Body Materials Cast iron PFA lined
Actuators Model 35 spring-opposed rolling diaphragm
Trim Eccentric rotary plug
inherent Characteristics Linear



Fieldbus & HART - EDP300

ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.
  • Read first
    – Software/hardware revisions: Version matrix

Software and documentation:

  • HART
    – Software: DTM, EDD

Stand-alone tool:
ABB offers software tools that use the listed drivers in the table above for your device configuration and monitoring requirements.







Specifications


Actuation Double-acting, Spring-return, Linear
Control Type On/Off, Throttling, Positioning
Operating Temperature Standard Temperature
Power Source Pneumatic
Application Angle Valve, Global Valve

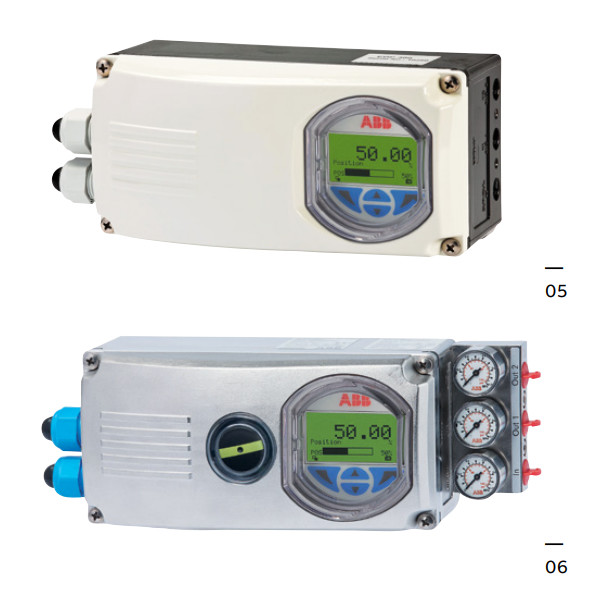

Explosion Proof ABB Smart Valve Positioner EDP300 With HART Communication 0



The extended diagnostics feature of the PositionMaster EDP300 provides the user the opportunity to perform selectable valve performance diagnostics and to schedule Control Valve preventive maintenance as determined by the results to ensure increased system availability and to minimize unforeseen cost-intensive failures. In this document we provide examples of typical online and offline tests that can be performed by the EDP300 positioner: - Partial Stroke Test - Valve Signature - Speed over Position Test - Butterfly Diagnostic - Drag Indicator — - Valve Step Response



Detailed Image








Explosion Proof ABB Smart Valve Positioner EDP300 With HART Communication 1





Explosion Proof ABB Smart Valve Positioner EDP300 With HART Communication 2









Packaging and Delivery


Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free.  Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days



Our Service


1. Swift delivery
For common parts, we can deliver the goods within 3 days

2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
