4 - 20 MA YTC YT1000L Control Valve Positioner Aluminum Material Fast Response Time

4 - 20 MA YTC YT1000L Control Valve Positioner Aluminum Material Fast Response Time

digital valve positioner

smart valve positioner

Place of Origin:

KR

Brand Name:

YTC

Certification:

CE EAC

Model Number:

YT 1000

Contact Us

Request A Quote
Product Details
Set Point:
4 To 20 MA
Valve Travel:
3.6 To 300 Mm
Opening Angle:
24 To 100°
Material:
Aluminum
Product Description

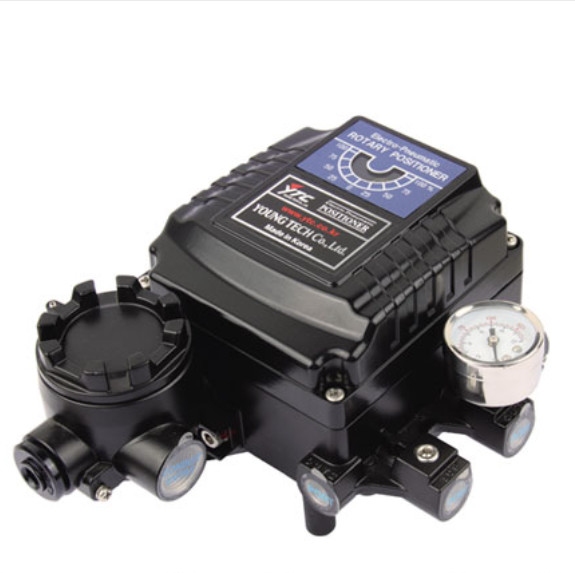

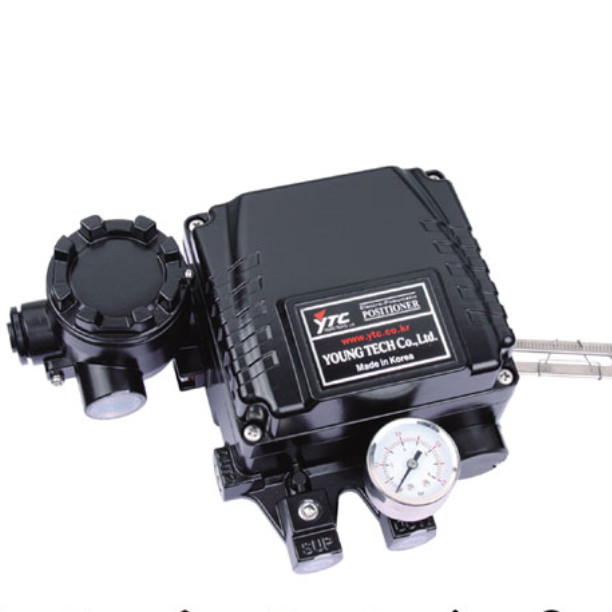

YTC YT-1000L smart Digital Valve Positioner Electro-Pneumatic Positioner for control valve


Product Introduction


The Electro-Pneumatic Positioner YT-1000L is used for operation of pneumatic rotary valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.


Quick Details


Place of Origin Korea
Brand Name YTC
Model Number YT-1000L
Diagnostics 5 Pressure Sensors
Materials Case/Cover: - Aluminum ASTM 360
Welded BW or SW
Operating Temperature Standard Temperature
Screwed NPT 1/4" through 2" (20 through 50 mm)
Body Materials Cast iron PFA lined
Actuators Model 35 spring-opposed rolling diaphragm
Trim Eccentric rotary plug
inherent Characteristics Linear





General YT-1000 / 1050 series Electro-Pneumatic Positioner accurately controls valve stroke in response to an input signal of 4~20mA from the controller.
Main Features and Functions
- It is compatible with most of controllers.
- Response time is very fast and accurate.
- Split range 4~12mA or 12~20mA can be set by simple operating. (Inform us when ordering as the parts are different.)
- Low air consumption.
- Simple Direct / Reverse Action change.
- Simple Zero & Span adjustment.
- Position transmitter or limit switch is available as internal or external option on the positioner. However, positioner is non-explosion type when internal option has been selected. In case of external option, both the positioner and the external products can be selected with explosionproof certified products.
- Orifices can be installed even in the field to minimize the hunting occurrence and optimize operating conditions.
- A/M switch can be used to direct supply air to the actuator or to manually operate the positioner or valve without any signal.
- It has IP66, Type 4X (FM) ingress protection grade.
- Polyester powder coating resists the corrosion process. (except YT-1050).
- Maintenance of the positioner is easy because of modularized inner structure.


Packaging and Delivery


Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days



Our Service


1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.
5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
