Robot Arm Mechanical Pneumatic Parallel Gripper Industrial Robot Gripper 180g Load

Basic Information
Place of Origin: China
Brand Name: Rochu
Certification: CE
Model Number: FM-B3V4/__
Minimum Order Quantity: 1 set
Packaging Details: One Bottle gripper and mechanical gripper more fingers pneumatic parallel gripper for robotic arm china packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: Bottle Gripper And Mechanical Gripper More Fingers Pneumatic Parallel Gripper For Robotic Arm China Type: B
Model: FM-B3V4/__ Hr: 19mm
Hmax: 10mm Hmin: 9mm
H: 45mm W: 25mm
Load: 180g Self Weigh: 42g
High Light:

high speed robot arm

,

machine learning robotic arm

Bottle gripper and mechanical gripper more fingers

pneumatic parallel gripper for robotic arm china



Specification



Specification
Product name more fingers pneumatic parallel gripper for robotic arm china
Type B
Model FM-B3V4/__
Hr 19m
Hmax 10mm
Hmin 9mm
H 45mm
W 25mm
Lf 31mm
L 61mm
Load 180g
Self weigh 42g













Robot Arm Mechanical Pneumatic Parallel Gripper Industrial Robot Gripper 180g Load 0




Product Description



FM Style

According to the installation mode and characteristics, Rochu finger module is divided into V4 style and V5 style.

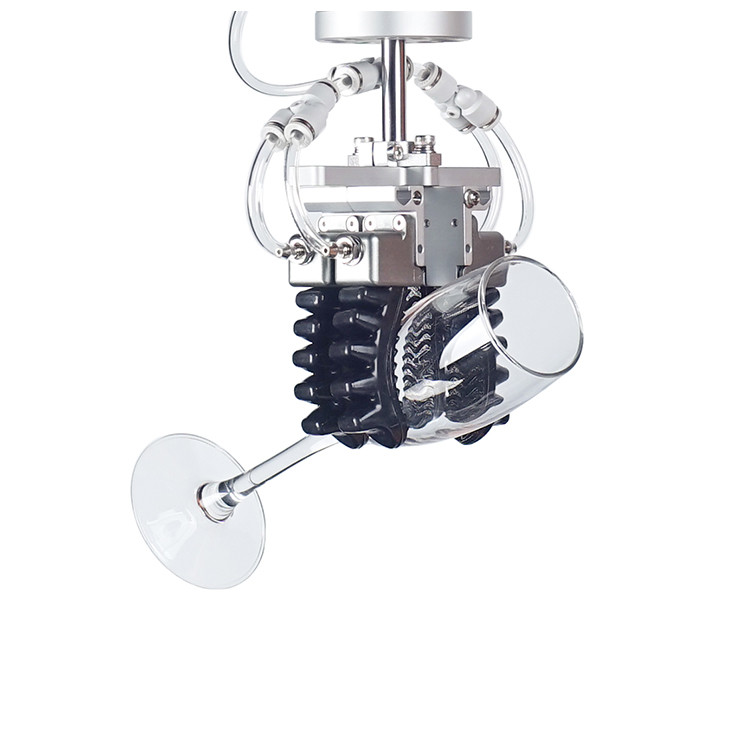

V4 style--- High load in series air circuit

The V4 style finger module air pipe is installed on the side. The advantage is that only need one air pipe to drive multiple
fingers when multiple fingers are installed together. It is mainly used in the application with diameter over 50mm, weight
over 200g, and more than two fingers working at the same time.The air pipe is simple and convenient, saving space,
reducing space interference, and suitable for compact space scene.

Robot Arm Mechanical Pneumatic Parallel Gripper Industrial Robot Gripper 180g Load 1

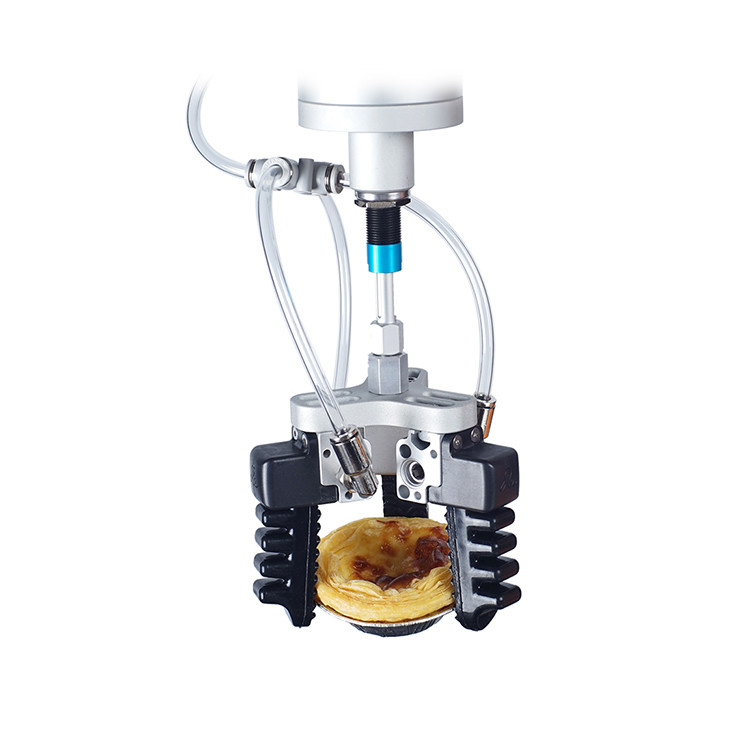

V5 style--- Flexible and thin, small finger distance
The air pipe of V5 style finger module is installed on the back, and each finger module needs independent air pipe. V5style finger module is thinner and lighter. The space is only 8mm when placed opposite, suitable for grabbing small and light products.
Robot Arm Mechanical Pneumatic Parallel Gripper Industrial Robot Gripper 180g Load 2
