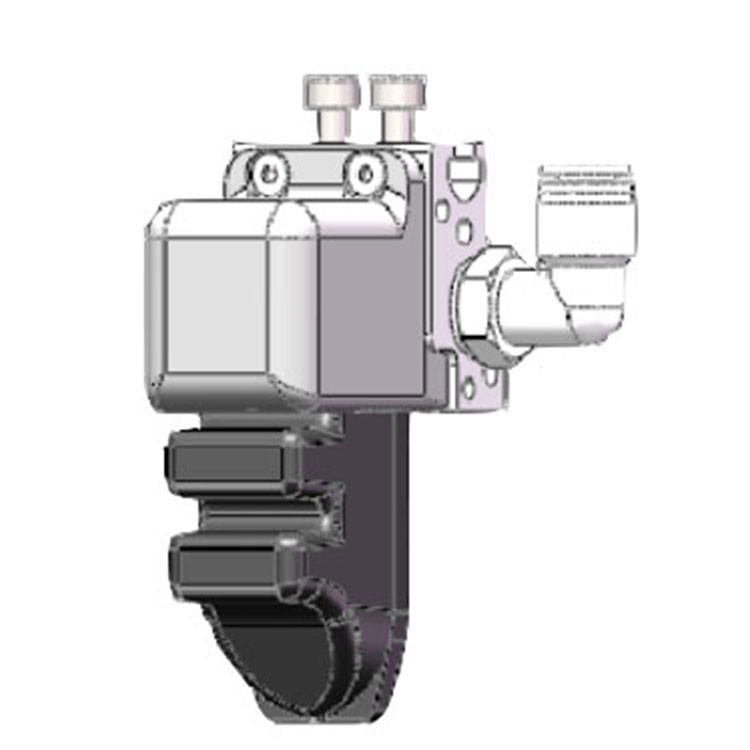

3 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification

Basic Information
Place of Origin: China
Brand Name: Rochu
Certification: CE
Model Number: FM-A3V4/___
Minimum Order Quantity: 1 set
Packaging Details: One air 3 fingers robot gripper mechanical pneumatic parallel gripper for robotic arm china packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: Air 3 Fingers Robot Gripper Mechanical Pneumatic Parallel Gripper For Robotic Arm China Type: A
Model: FM-A3V4/___ Hr: 16.5mm
Hmax: 8mm Hmin: 8.5mm
H: 51mm W: 31mm
Load: 300g Self Weigh: 70g
High Light:

high speed robot arm

,

machine learning robotic arm

air 3 fingers robot gripper mechanical pneumatic parallel

gripper for robotic arm china



Specification



Specification
Product name 3 fingers pneumatic manipulator robot handset gripper
Type A
Model FM-A3V4/___
Hr 16.5mm
Hmax 8mm
Hmin 8.5mm
H 51mm
W 31mm
Lf 41mm
L 78mm
Load 300g
Self weigh 70g




3 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification 0










3 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification 13 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification 23 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification 3

Product Description



FM Style

According to the installation mode and characteristics, Rochu finger module is divided into V4 style and V5 style.

V4 style--- High load in series air circuit

The V4 style finger module air pipe is installed on the side. The advantage is that only need one air pipe to drive multiple
fingers when multiple fingers are installed together. It is mainly used in the application with diameter over 50mm, weight
over 200g, and more than two fingers working at the same time.The air pipe is simple and convenient, saving space,
reducing space interference, and suitable for compact space scene.

3 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification 4

V5 style--- Flexible and thin, small finger distance
The air pipe of V5 style finger module is installed on the back, and each finger module needs independent air pipe. V5style finger module is thinner and lighter. The space is only 8mm when placed opposite, suitable for grabbing small and light products.
3 Fingers Pneumatic Manipulator Robotic Arm Gripper 300g Load CE Certification 5
