||4 To 20 MA
||3.6 To 300 Mm
||24 To 100°
digital valve positioner,
smart valve positioner

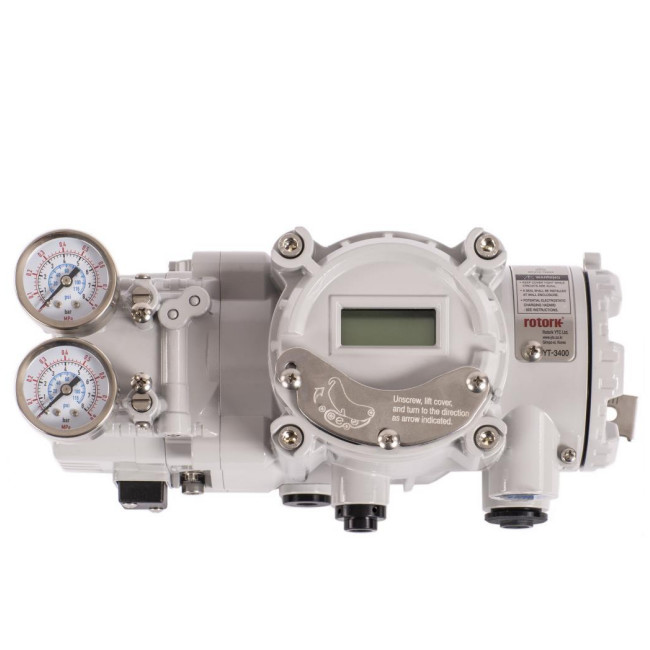

Rotork smart Digital Valve Positioner YT-3300 single acting positioner for control valve
YT-3300 / 3350 / 3303 / 3301 series Smart Valve Positioner accurately controls valve stroke in response to an input signal of 4~20mA from the controller. Built-in micro-processor optimizes the positioner’s performance and provides unique functions such as Auto-Calibration, PID Control, and HART Protocol Communications.
|Place of Origin
||5 Pressure Sensors
||Case/Cover: - Aluminum ASTM 360
||BW or SW
||NPT 1/4" through 2" (20 through 50 mm)
||Cast iron PFA lined
||Model 35 spring-opposed rolling diaphragm
||Eccentric rotary plug
➢ LCD display enables users to monitor the positioner status.
➢ User will easily understand the method of using 4 buttons because it work same in all versions of firmware interfaces.
➢ When unexpected situation like momentary blackout happens, our positioner boot-time only take 0.5 second and this can minimize the travel of valve which consequentially increase the safety of system.
➢ Positioner operates normally even there are sudden changes in supply pressure and / or high vibration environment.
➢ YT-3301 remote positioner is stronger on high temperature and vibration environment because it is separated into remote sensor and positioner.
➢ The method of Auto Calibration is very simple.
➢ As an advantage of having very low air consumption, It could greatly reduce operating costs in large-scale plants.
➢ It is compatible with most of controllers.
➢ Orifices can be installed even in the field to minimize the hunting occurrence and optimize operating conditions.
➢ Various information about positioner can be processed by HART communication (HART option)
➢ Valve system becomes more stable by outputting analog feedback signal. ➢ Different valve characteristics can be adjusted – Linear, Quick Open, Equal Percentage, and User Set which user can make 5 or 18 points characterizations.
➢ Tight Shut – Close and Shut - Open can be set.
➢ PID parameters can be adjusted in the field without any additional communicator.
➢ A/M switch can be used to direct supply air to the actuator or to manually operate the positioner or valve without any signal.
➢ Split range 4~12mA or 12~20mA can be set.
➢ Operating temperature for remote sensor of YT-3301 is -40 ~ 120℃. Operating temperature for positioners is -30 ~ 85℃ or -40 ~ 85℃ (Please check certified explosion proof temperature)
➢ Hand calibration function can set Zero point or End point manually.
➢ It has IP66, Type 4X(FM) protection grade.
➢ Polyester powder coating resists the corrosion process. (except YT-3350).
Packaging and Delivery
Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
The products will be shipped after receiving the deposit or full payment within 15 working days
1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.
5. Quickly response
Our staff will keep 24h online and answer your question very quickly.
