| MOQ: | 1 set |
| Standard Packaging: | One HAN'S YAG lamp pumped laser welder WF600 welding equipment for laser welding machines packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 50 sets /Month |

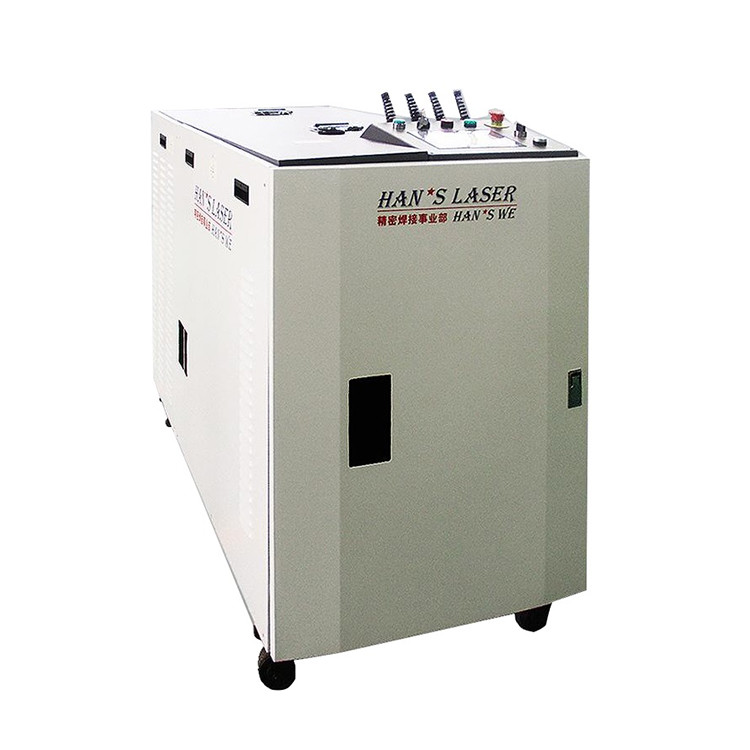

HAN'S YAG lamp pumped laser welder WF600 welding
equipment for laser welding machines
Specification
| Laser model | WCF80 | WCF150 | WF350 | WF600 |
| Laser type | YAG | YAG | YAG | YAG |
| Laser wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Laser output average power | 80W | 150W | 300W | 600W |
| Max. laser peak power | 5kW | 6kW | 6kW | 9Kw (12kW optional) |
| Max. laser pulse energy | 30J | 30J | 30J (standard) | 50J/ (90J optional) |
| 60J/90J (optional) | ||||
| Pulse width | ≤50ms | ≤50ms | ≤50ms | ≤50ms |
| Pulse frequency | ≤100Hz | ≤200Hz | ≤200Hz | ≤200Hz |
| Waveform number | 50 groups | 50 groups | 50 groups | 50 groups |
| Fiber transmission number | 2 paths | 2 path | 2 paths standard, 4 paths at most | 1 path standard, 4 paths at most |
| Beam split mode | Time splitting | Time splitting | High speed beam split | Energy splitting or time splitting |
| Fiber core diameter | 0.4mm | 0.6mm | 0.6mm (standard) 0.3/0.4mm optional | 0.6mm |
| Closed-loop feedback control mode | Laser power feedback | Laser power feedback | Laser power feedback | Laser power feedback |
| Aiming positioning mode | Red light guide (CCD optional) | Red light guide (CCD optional) | Red light guide (CCD optional) | Red light guide (CCD optional) |
| Cooling mode | Internal air cooling | Internal air cooling (external water cooling optional) | External water cooling | External water cooling |
| Main machine power consumption | 5kW | 7kW | 16.5kW | 20kW |
| Power demand (voltage, frequency and current) | 220V±10%/50Hz 25A | 380V±10%/50Hz 32A | 380V±10%/50Hz 40A | 380V±10%/50Hz 42A |
| Main machine weight | 350kg | 350kg | 450kg | 500kg |
| Main machine dimension (L*W*H) | 1280x550x1165mm | 1280x550x1165mm | 1480x610x1100mm | 1518x700x1180mm |
| Water chiller rated power | —— | —— | 3.5kW | 9.7kW |
| Water chiller cooling capacity | —— | —— | 7.5Kw (12.5kW optional) | 17.5kW |
| Water chiller power demand | —— | —— | 220V±10% 50Hz 16.5A | 380V±10%/50Hz 17A |
| Water chiller dimension (L*W*H) | —— | —— | 850x550x1158mm | 1156x800x1430mm |
Product Description
Company Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
|
|
