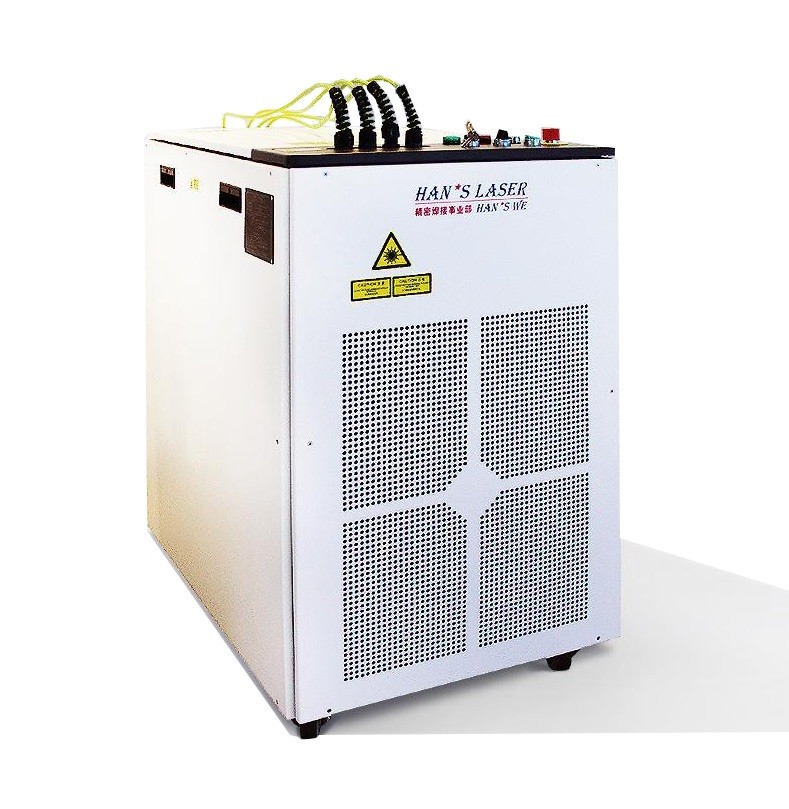

FP300 Robotic Arm Parts 300W Fiber Laser Welding Machine 532nm Wavelength

Basic Information
Place of Origin: China
Brand Name: HAN'S
Certification: CE
Model Number: FP300
Minimum Order Quantity: 1 set
Packaging Details: One 300W fiber laser welding machine FP300 for Battery welding, pipe welding, thin steel plate welding equipment packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: 300W Fiber Laser Welding Machine FP300 For Battery Welding, Pipe Welding, Thin Steel Plate Welding Equipment Model: PG3
Type: YAG Wavelength: 532nm
Laser Output Average Power: 3W Max. Laser Peak Power: 1Kw
Pulse Width: ≤5ms Pulse Frequency: ≤10Hz
Waveform Number: 50 Groups Main Machine Weight: 350kg
High Light:

robot vacuum accessories

,

vacuum suction cups



300W fiber laser welding machine FP300 for Battery welding,

pipe welding, thin steel plate welding equipment



Specification



Product name 300W fiber laser welding machine FP300 for Battery welding, pipe welding, thin steel plate welding equipment
Laser model FP300
Laser wavelength 1070nm
Working mode Continuous/pulse
Max. laser average power Pulse 300W/ continuous 300W
Max. laser peak power 3000W
Max. laser pulse energy 30J
Pulse width Pulse 0.2-50ms
Pulse frequency ≤5000Hz
Waveform number ≤50 groups, each group ≤16 segments
Fiber output number 2 paths standard, 4 paths at most
Max. beam split frequency 80Hz
Fiber core diameter 200μm (standard)
Aiming positioning mode Red light guide (CCD and monitor, optional)
Cooling mode Forced air cooling (its own)
Main machine power consumption <1.8kW
Power demand 220V±10%, 50/60Hz
Dimension 600x900x900mm



Product Description


YAG laser welder PB300CE
Summary information
1. High aspect ratio, thin line weld width, narrow heat affected zone, zero deformation, and fast welding speed.
2. Smooth and clean weld with or without simple process after welding.
3. High weld strength, no porosity, eliminates the impurities of the base metal.
4. The microstructure can be refined after welding, Weld strength is at least equal to or exceeds base metal strength.
5. Tiny laser spot can be precisely positioned and easily automated.
6. Suitable dissimilar metal welding.
7. Excellent for spot welding, butt welding, overlap sealing welding.

Fiber Laser Welding Machine - FP Series:

FP series is a new generation near-infrared semiconductor pumped fiber laser. With good beam quality, fiber transmission and high electro-optical conversion efficiency, It is mainly used for rapid welding thin materials.

The welding process is conduction welding, with the laser radiation heats the surface of the workpiece, and the surface heat is diffused to the inside through heat conduction.

By controlling parameters such as the width, energy, peak power and repetition frequency of the laser pulse, the workpiece can be melted to form a specific molten pool. It is widely applied to weld micro and small parts.

Application:
  • Battery welding, pipe welding, thin steel plate welding
  • Electronic components, instrumentation, medical equipment, small metal parts welding



Material

  • Stainless Steels, Carbon Steels
  • Gold & Silver, Aluminum, Tool Steels
  • Nickel Alloys, Brass & Copper, Titanium
