Large Nozzle Design Pressure Reducing Valve Threaded NPT / BSPT Bronze Material

Basic Information
Place of Origin: China
Brand Name: KUNKLE
Certification: CE
Model Number: 215V
Minimum Order Quantity: 1 set
Packaging Details: One Valve Models 215V Safety Relief Valves with 3200MD+ positioner packed with one fumigation wooden box.
Delivery Time: 7 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/Month
Name: Valve Models 215V Safety Relief Valves With 3200MD+ Positioner Brand: KUNKLE
Model: 215V Connections: Threaded NPT Or BSPT
Temperature Range: -20° To 406°F (-29° To 208°C) Sizes: 50, 65 And 80 Mm
Vacuum Range: 2" To 29" Hg (67.7 To 982 Mbarg) Valve Type: Safety Relief Valves
Codes: PED Material: Bronze
High Light:

self operated regulator

,

fisher relief valve



Valve Models 215V Safety Relief Valves with 3200MD+

positioner



SPECIFICATION



Product Name Valve Models 215V Safety Relief Valves with 3200MD+ positioner
size 2”, 2½” and 3” [50, 65 and 80 mm]
Brand KUNKLE
Model 215V
Connections Threaded NPT or BSPT
Temperature range -20° to 406°F (-29° to 208°C)
Vacuum range 2" to 29" Hg (67.7 to 982 mbarg)
Valve Type Safety Relief Valves
Codes PED
Material Bronze


Product Description

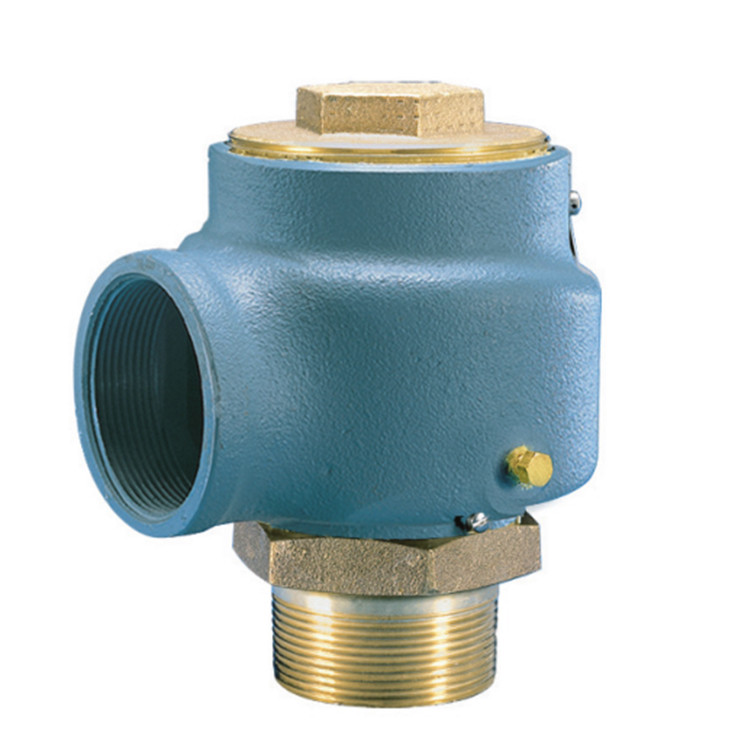

Kunkle Valve Models 215V/337 Safety Relief Valves



Cast iron non-code vacuum relief and ASME Section VIII air/gas, ‘UV’, National Board certified safety valves, both PED certified for non-hazardous gas

Features:

  • Large nozzle design provides high capacity.
  • Flat bronze valve seats are lapped for optimum performance.
  • Warn ring offers easy adjustability for precise opening with minimum pre-open or simmer.
  • Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
  • Model 215V has seal cap for vacuum service.
  • Model 337 has 'lift-pin' lift device for easy manual testing.
  • Bronze nozzle and disc as standard. Optional SS trim available.
  • Each valve tested and inspected for pressure setting and leakage.

Applications:


• Bulk hauling trailers/equipment.
• Light gauge tanks.
• Protection of high volume vacuum pumps and conveying systems.
