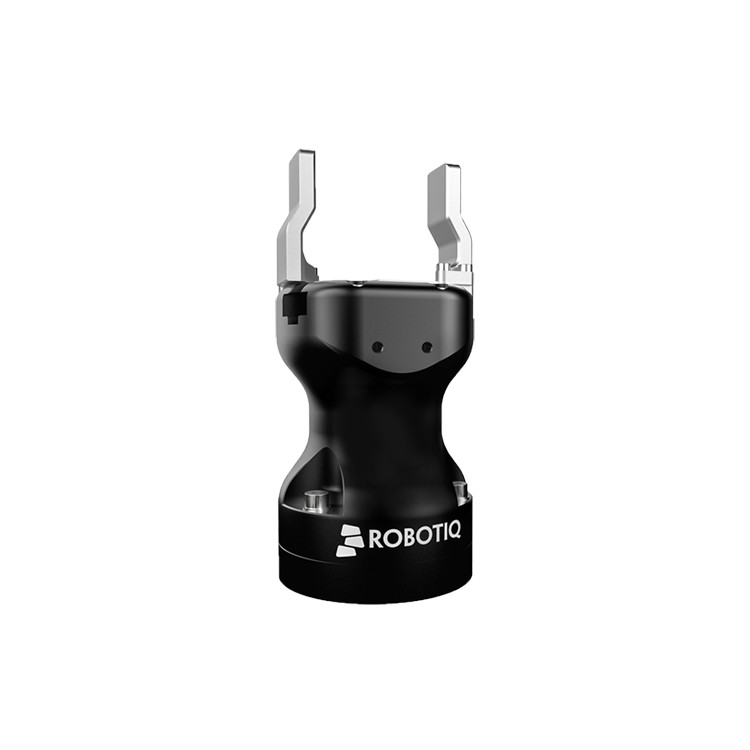

IP67 Robotic Arm Parts Adaptive Gripper 50mm Stroke For Collaborative Robots

IP67 Robotic Arm Parts Adaptive Gripper 50mm Stroke For Collaborative Robots

robot vacuum accessories

vacuum suction cups

Place of Origin:

China

Brand Name:

Robotiq

Certification:

CE

Model Number:

Hand-E

Contact Us

Request A Quote
Product Details
Product Name:
Robot Arm Gripper Hand-E ISO/TS 15066 20 To 150 Mm/s Adaptive Gripper Easy-to-use Software For Collaborative Robots
Brand:
Robotiq
Model:
Hand-E
Stroke:
50 Mm
Grip Force:
20 To 130 N
Friction Grip Payload:
5 Kg
Form-fit Grip Payload:
3kg
Gripper Weight:
1kg
Closing Speed:
20 To 150 Mm/s
Ingress Protection (IP) Rating:
IP67
Product Description

Robot arm gripper Hand-E ISO/TS 15066 20 to 150 mm/s Adaptive Gripper easy-to-use software for collaborative robots



Specification

  Hand-E
Stroke 50 mm 2.0 in
Grip Force 20 to 130 N 4.5 to 27 lbf
Form-fit Grip Payload 5 kg 11 lbs
Friction Grip Payload* 3 kg 7 lbs
Gripper Weight 1 kg 2 lbs
Closing speed 20 to 150 mm/s 0.8 to 5.9 in/s



Product Description



Hand-E Grippers

  • The gripper for collaborative robots
  • Plug + Play and easy to program
  • High accuracy and wide stroke
  • Ideal for precision assembly tasks
  • Built for industrial applications and harsh environments

Application



Hand-E’s high accuracy and 50 mm parallel stroke make it perfect for precision assembly tasks, while its sealed design ensures reliability in the toughest manufacturing conditions—including CNC machining. Hand-E’s design adheres to ISO/TS 15066 standard best practices, with maximum force, rounded edges, self-locking functionalities, and other features making it the gripper for collaborative robots.



Hand-E Features

Built for collaborative robots

50-mm stroke gripper model is suited to collaborative robots

Integrates seamlessly with Robotiq’s Wrist Camera and FT 300 Force Torque Sensor

Ergonomic shape for hand-guiding

Easy to program

Intuitive interface for quick onboarding and use

No training required

Automatic part detection, position feedback, and part validation

Designed for industrial needs

Precise and durable

High force and payload

Withstands harsh manufacturing conditions



2F-85 and 2F-140 Grippers

  • Plug + Play on collaborative robots
  • Eliminate changeovers & reduce tooling costs
  • Pick parts of different size and shapes
  • Automate all your applications with one gripper
  • Program your application in minutes

Application

The 2F-85 and 2F-140 Adaptive Grippers are the world’s best-selling grippers for collaborative robots. Use them to accomplish a complete lineup of applications with a fast time-to-production—no robotics expertise required. They’re key to a highly flexible and reliable robotic cell.

Gripper Features



Built for collaborative robots

  • Two wide stroke options: 85 mm and 140 mm
  • Patented finger design enables both internal and external parallel gripping, as well as a unique encompassing grip mode



Simple to program

  • One easy-to-use software interface for all Adaptive Gripper models
  • Built-in grip and dimension validation
  • Automatic part detection and position feedback



Suit industrial needs

  • Robust, factory-proven hardware
  • High pinch force and payload


Product Information
