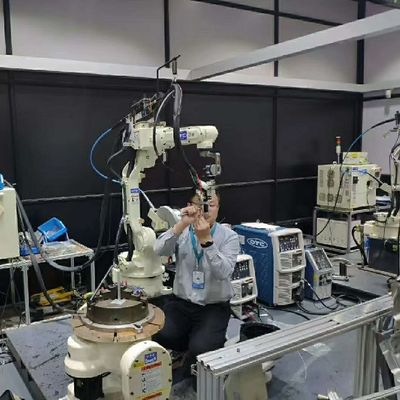

FD-B6 OTC Welding Robot Industrial Robotic Arm Floor Type Installation

Basic Information
Brand Name: OTC
Model Number: FD-B6
Minimum Order Quantity: 1
Price: negatiation
Packaging Details: robotic welding FD-B4S 7 axis robot arm and welding torches and tig welding machines for sale for OTC packed with fumigation box
Delivery Time: 4-12 week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Name: Cheap Robotic Weld Arm FD-B6 Axis Welding Robot And Robot Welding Manipulator For OTC Model: FD-B6
Usage: For Welding Type: Industrial Robot Arm
Reach: 2.24m Payload: 100KG
Position Repeatability RP (mm): ± 0.08 Mm Axes: 6
Installation Type: Floor Type Weight: 319 Lbs. (145 Kg)
High Light:

robotic welding machine

,

cnc welding robot

cheap robotic weld arm FD-B6 axis welding robot and robot welding manipulator for OTC


Product description


Specification Value
Number of Axes 6
Maximum Payload Capacity 13.2 lbs (6 kg)
Positional Repeatability ± 0.08 mm
Drive Capacity 3132W
Working Range, Arm, J1 (Rotation) ±170 ° (±50°)
Working Range, Arm, J2 (Lower Arm) -155 ° to +90°
Working Range, Arm, J3 (Upper Arm) -170° to +245°
Working Range, Wrist, J4 (Swing) ±155° (+/- 170°)
Working Range, Wrist, J5 (Bending) -45° to +225°
Working Range, Wrist, J6 (Twist) ±205° (+/- 360°)
Maximum Velocity, Arm, J1 (Rotation) 4.19 rad/s (240°/s) [3.32 rad/s (190°/s)]
Maximum Velocity, Arm, J2 (Lower Arm) 4.19 rad/s (240°/s)
Maximum Velocity, Arm, J3 (Upper Arm) 4.01 rad/s (230°/s)
Maximum Velocity, Wrist, J4 (Swing) 7.5 rad/s (430°/s)
Maximum Velocity, Wrist, J5 (Bending) 7.50 rad/s (430°/s)
Maximum Velocity, Wrist, J6 (Twist) 11.0 rad/s (630°/s)
Wrist Load, Allowable Moment, J4 (Swing) 10.5 N⋅m
Wrist Load, Allowable Moment, J5 (Bending) 10.5 N⋅m
Wrist Load, Allowable Moment, J6 (Twist) 5.9 N⋅m
Wrist Load, Allowable Moment of Inertia, J4 (Swing) 0.28 kg⋅m²
Wrist Load, Allowable Moment of Inertia, J5 (Bending) 0.28 kg⋅m²
Wrist Load, Allowable Moment of Inertia, J6 (Twist) 0.06 kg⋅m²
Arm operation cross-sectional area 3.59 m² x 340°
Environmental Conditions (0 to 45 °C), 20 ~ 80% RH (No condensation)
Mass 319 lbs. (145 kg)
Upper arm payload capacity 22.05 lbs. 10 kg
Installation type Floor / Ceiling / Wall
Paint color White (Munsell notation 10GY 9/1)



Our FD-B6 arc-welding robot utilizes a streamlined, through-arm coaxial cable, which gives you maximum mobility in tight work spaces. This compact design makes welding in confined spaces or complicated fixtures a snap.

The FD-B6’s streamlined coaxial cable improves wire feeding, giving you better overall weld quality.

FD-B6 OTC Welding Robot Industrial Robotic Arm Floor Type Installation 0FD-B6 OTC Welding Robot Industrial Robotic Arm Floor Type Installation 1

ARC WELDING ROBOT MANIPULATOR

• Through-arm cable design improves torch reach & wire feeding

• Offers a wide working range with an independently articulated arm

• Seamless digital connection with all OTC DAIHEN brand welding power supplies

• Improved vibration restraining control provides smooth robot movement

• Built-in mechanical shock sensor

• Single source technology – all components are manufactured by OTC DAIHEN.

• Highly versatile design supports most welding applications

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

• Improved Specification for severe condition such as high-humidity & high-temperature

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation


Product Image


FD-B6 OTC Welding Robot Industrial Robotic Arm Floor Type Installation 2
