| Place of Origin: | China |
|---|---|
| Brand Name: | HAN'S |
| Certification: | CE |
| Model Number: | Elfin10 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | One CNC robot arm Elfin10 6 axis payload 10kg industrial robot and HAN's Collaborative Robot packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG |
| Delivery Time: | 7 working days after deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets /Month |
| Product Name: | CNC Robot Arm Elfin10 6 Axis Payload 10kg Industrial Robot And HAN's Collaborative Robot | Model: | Elfin 10 |
|---|---|---|---|
| Type: | Collaborative Robot | Axis: | 6 |
| Payload: | 10kg | Reach: | 1000mm |
| Weight: | 17kg | Power: | 350W In Typical Cycle |
| Tool Speed: | 1m/s | Repeatability: | ±0.05mm(under Normal Conditions) |
| High Light: | Collaborative Cnc Robot Arm,6 Axis Cnc Robot Arm,1m/S Collaborative Welding Robot |
||

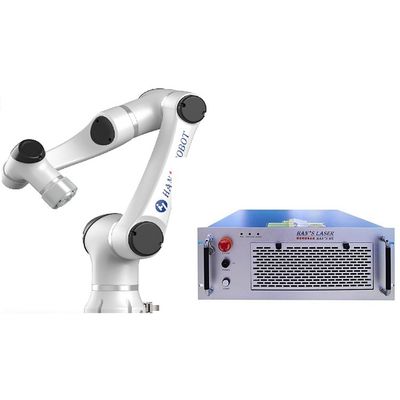

CNC robot arm Elfin10 6 axis payload 10kg industrial robot
and HAN's Collaborative Robot
Specification
| Specifications | ||||
| Product name | CNC robot arm Elfin10 6 axis payload 10kg industrial robot and HAN's Collaborative Robot | |||
| model | E10 | |||
| weight | 17kg | |||
| payload | 10kg | |||
| reach | 1000mm | |||
| power | 150W in typical cycle | |||
| joint range | ±360° | |||
| joint speed | J1-J2 85°/S, J3-J6 135°/S | |||
| tool speed | 1m/s | |||
| repeatability | ±0.05mm(under normal conditions) | |||
| degree of freedom | 6 | |||
| control box size | 536*445*319mm | |||
| end I/O port | digital input:4,digital output:4,analog input:2 | |||
| control box I/O port | digital input:16,digital output:16, analog input:2,analog output:2 | |||
| I/O source | 24V 2A | |||
| communication | TCP/IP | |||
| programming | graphical programming,remote process call | |||
| IP classification | IP54 | |||
| collaborative operation | 10 advanced configurations for safety | |||
| main material | aluminum alloy | |||
| working temperature | 0-50℃ | |||
| power input | 200-240V AC,50-60Hz | |||
| cable | cable to connect the control box:5m,cable to connect teach pendant:5m | |||
Product Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
