Clean Payload 4kg Reach 505.8mm 6 Axis Articulated Robot

Basic Information
Place of Origin: China
Brand Name: KAWASAKI
Certification: CE
Model Number: MC004N
Minimum Order Quantity: 1 set
Packaging Details: One 6 axis robot arm MC004N clean robot payload 4kg reach 505.8mm for medical and pharmaceutical robots pulator for Kawasaki packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: 6 Axis Robot Arm MC004N Clean Robot Payload 4kg Reach 505.8mm For Medical And Pharmaceutical Robots Pulator For Kawasaki Type: Articulated Robot
Model: MC004N Axis: 6
Payload: 4kg Reach: 505.8mm
Mass: 25kg Mounting: Floor, Ceiling
Positional Repeatability: ±0.05 Controller: F60
High Light:

6 Axis Articulated Robot

,

Clean Articulated Robot

,

4kg Articulated Robot Arm

6 axis robot arm MC004N clean robot payload 4kg reach 505.8mm

for medical and pharmaceutical robots pulator for Kawasaki



Specification



MC004N SPECIFICATIONS
Type Articulated Robot
Degrees of Freedom (axes) 6
Payload (kg) 4
Max. Reach (mm) 505.8
Positional Repeatability (mm) ✽1 ±0.05
Motion Range (°) Arm Rotation (JT1) ±180
Arm Out-in (JT2) +135 - −95
Arm Up-down (JT3) +60 - −155
Wrist Swivel (JT4) ±270
Wrist Bend (JT5) ±120
Wrist Twist (JT6) ±270
Max. Speed (°/s) Arm Rotation (JT1) 200
Arm Out-in (JT2) 180
Arm Up-down (JT3) 225
Wrist Swivel (JT4) 700
Wrist Bend (JT5) 500
Wrist Twist (JT6) 350
Allowable Moment (N•m) Wrist Swivel (JT4) 8.5
Wrist Bend (JT5) 8.5
Wrist Twist (JT6) 4.0
Allowable Moment of Inertia (kg•m2) Wrist Swivel (JT4) 0.2
Wrist Bend (JT5) 0.2
Wrist Twist (JT6) 0.1
Mass (kg) 25
Mounting Floor, Ceiling
Installation Environment Ambient Temperature (°C) 10 - 35
Relative Humidity (%) 35 - 85 (No dew, nor frost allowed)
Controller / Power Requirements (kVA) F60 / 2.0
Protection✽2 Wrist : IP67 equivalent / Base : IP65 equivalent
Cleanliness ISO Class5



Product Description

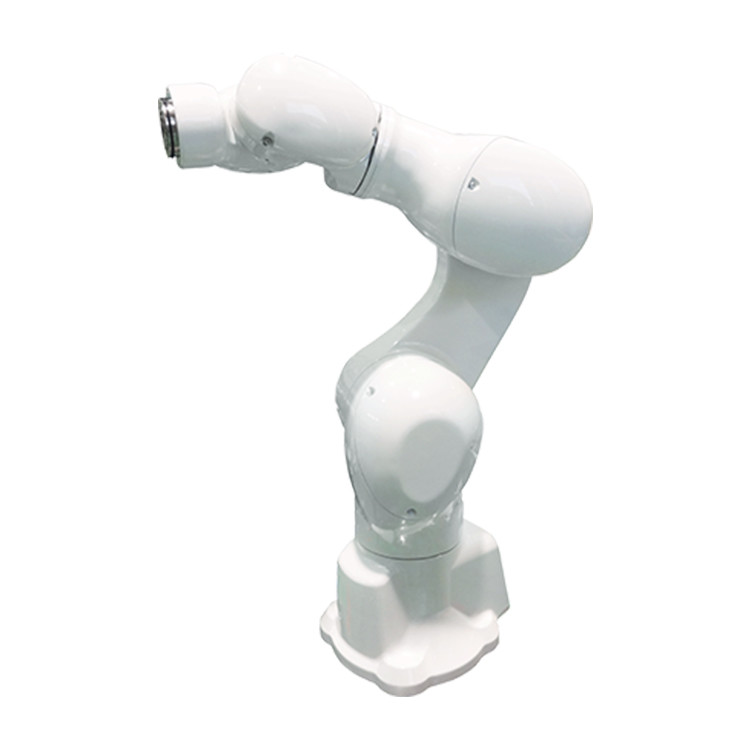

MC004N Robot

MEDICAL & PHARMACEUTICAL ROBOT

The MC004N clean robot helps prevent human errors, contamination risks, and exposure to High Potency Pharmaceutical Ingredients, such as anticancer drugs. The robot meets the healthcare industry’s processing equipment specifications for accuracy, consistency and cleanliness, making it ideal for assembly, dispensing, inspection and material handling applications.

Clean Payload 4kg Reach 505.8mm 6 Axis Articulated Robot 0





Clean Payload 4kg Reach 505.8mm 6 Axis Articulated Robot 1Clean Payload 4kg Reach 505.8mm 6 Axis Articulated Robot 2





Product Information

1
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
