Home /Products/Other/MIG MAG Welding IP65 Servo Robot Laser Seam Tracker

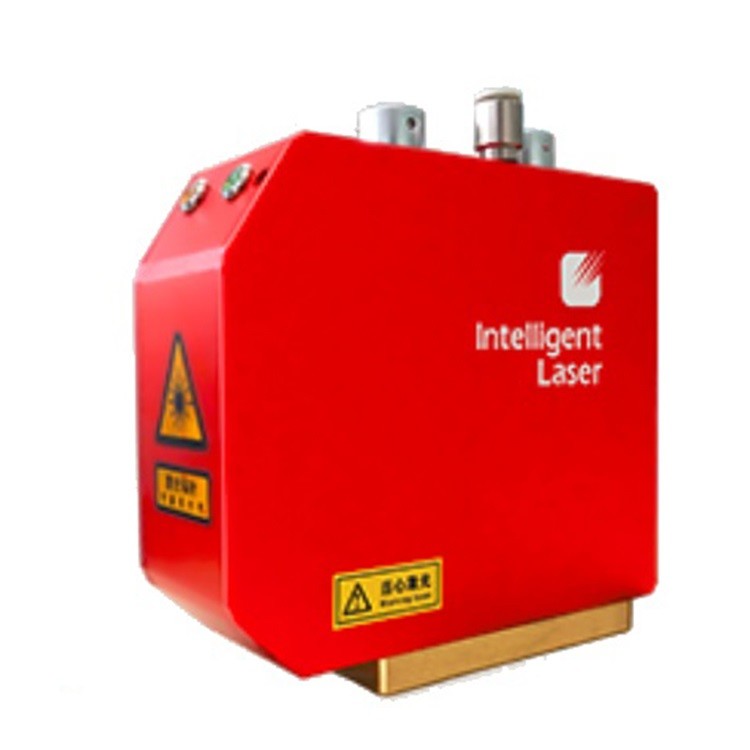

MIG MAG Welding IP65 Servo Robot Laser Seam Tracker

1 set
MOQ
MIG MAG Welding IP65 Servo Robot Laser Seam Tracker
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Laser Velding Seam Tracking Tracking System IL-HSP Series Industrial Robot Vision System For Welding Requirement
Model: IL-HSP Series
Optimum Viewing Distance(mm): 100
Viewing Distance Scope(mm): 92-109
Depth Of Focus(mm): 17
Field Of View (mm): 10
Minimum Welding Seam Gap (mm): 0.07
Weight(kg): 0.73
Working Ternperature(°C): 5- 40
Protection Level: IP65(Customizable IP67)
Highlight:

Servo Robot Laser Seam Tracker

,

IP65 Laser Seam Tracker

,

MAG Laser Seam Tracking Machine
Basic Infomation
Place of Origin: China
Brand Name: MEGMEET
Certification: CE
Model Number: IL-HSP series
Payment & Shipping Terms
Packaging Details: One Laser velding seam tracking tracking system IL-HSP series industrial robot vision system for welding requirement packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Description

Laser velding seam tracking tracking system IL-HSP series

industrial robot vision system for welding requirement



Specification



  MODEL
Sensor data IL-HSP-100SD01 IL-HSP-100SD02 IL-HSP-100SD03 IL-HSP-100SD04
Optimum viewing distance(mm) 100 98 100 150
viewing distance scope(mm) 92-109 76-130 84-120 111-216
Depth of focus(mm) 17 54 36 105
Field of view (mm) 10 32 21 34
Minimum welding seam gap can be
detected(mm)		 0.07 0.1 0.07 0.2
Weight(kg) 0.73 0.74 0.73 0.65
Working ternperature(°C) 5- 40
Protection level IP65(Customizable IP67)

Product Description



SYSTEM COMPOSITION:

Intelligent laser welding seam tracking system is composed by laser sensor and control host.
Laser sensor is used for welding seam active acquisition and control host is used for welding
seam real time processing meanwhile keep conimunication with robot. It has locating and
tracking functions also can satisfy the need of intelligent welding requirement.


APPLICATION WELDING TECHNOLOGY:

•MIG welding • MAG welding • TIG welding •SAW
• Laser welding , Hybrid laser welding • Friction stir welding •Plasma wdding

MIG MAG Welding IP65 Servo Robot Laser Seam Tracker 0
