K Band 26 GHz Vacuum 16 Bar Pneumatic Rotary Actuator

Basic Information
Brand Name: E+H
Model Number: FMR57
Minimum Order Quantity: 1
High Light:

26 GHz Pneumatic Rotary Actuator

,

16 Bar Pneumatic Rotary Actuator

,

K Band Pneumatic Actuator

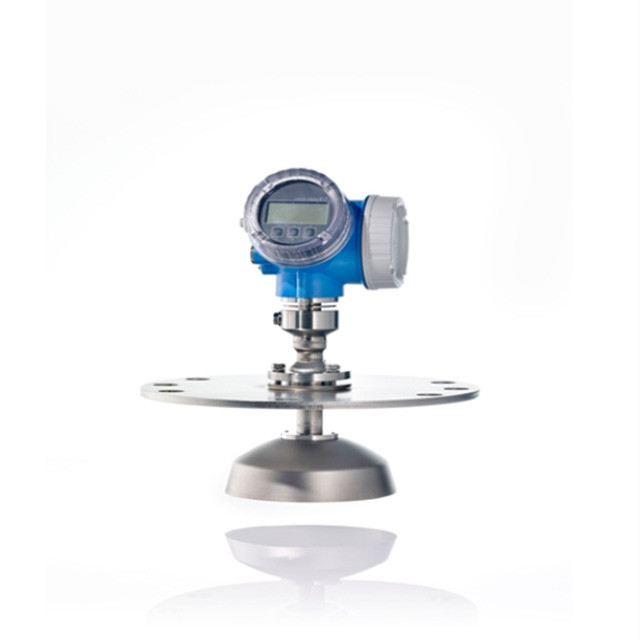

Radar measurement Time-of-Flight Micropilot FMR57 E+H origin quality sensor applying solids level

Specification



Product Name Radar measurement Time-of-Flight Micropilot FMR57 E+H origin quality sensor applying solids level
Model Micropilot FMR57
Application Radar Micropilot measurement
Supply / Communication 2-wire / 4-wire
Frequency K-band (~26 GHz)
Antenna Parabolic DN200/8", DN250/10" Horn DN80/3", DN100/4"
Accuracy +/- 3 mm (0.12 in)
Ambient temperature -40...+80 °C (-40...+176 °F)
Process temperature -40...+400 °C (-40...+752 °F)
Process pressure absolute Vacuum...16 bar
MMain wetted parts 316L, PEEK, PTFE, Polyamid


Detailed Images

K Band 26 GHz Vacuum 16 Bar Pneumatic Rotary Actuator 0Radar measurement Time-of-Flight Micropilot FMR57 E+H  origin quality sensor  applying  solids level Radar measurement Time-of-Flight Micropilot FMR57 E+H  origin quality sensor  applying  solids level =1

Our Services



1.Swift delivery

For common parts, we can deliver the goods within 3 days



2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
