Mechanical Bottle Gripper IP40 Stroke 85mm Robotic Arm Parts with robot arm

Basic Information
Place of Origin: China
Brand Name: Robotiq
Certification: CE
Model Number: 2F-85 and 2F-140
Minimum Order Quantity: 1 set
Packaging Details: One Robot arm gripper 2F-85 and 2F-140 payload 5kg Adaptive Gripper for collaborative robots and all applications packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: Robot Arm Gripper 2F-85 And 2F-140 Payload 5kg Adaptive Gripper For Collaborative Robots And All Applications Brand: Robotiq
Model: 2F-85 And 2F-140 Stroke: 85mm
Grip Force: 20 To 235 N Friction Grip Payload: 5 Kg
Form-fit Grip Payload: 5 Kg Gripper Weight: 0.9kg
Closing Speed: 20 To 150 Mm/s Ingress Protection (IP) Rating: IP40
High Light:

Stroke 85mm Robotic Arm Parts

,

IP40 Robotic Arm Parts

,

Mechanical Bottle Gripper

Bottle gripper and mechanical gripper more fingers

pneumatic parallel gripper for robotic arm china



Specification



  2F-85 2F-140
Stroke 85 mm 3.3 in 140 mm 5.5 in
Grip Force 20 to 235 N 4.5 to 50 lbf 10 to 125 N 2 to 25 lbf
Form-fit Grip Payload 5 kg 11 lbs 2.5 kg 5.5 lbs
Friction Grip Payload 5 kg 11 lbs 2.5 kg 5.5 lbs
Gripper Weight 0.9 kg 2 lbs 1 kg 2 lbs




Product Description

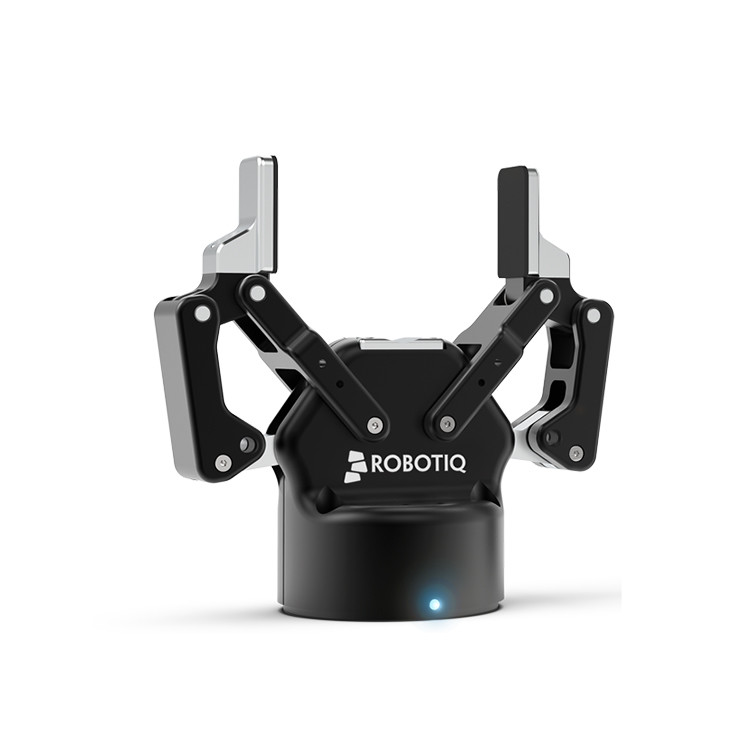

2F-85 and 2F-140 Grippers

  • Plug + Play on collaborative robots
  • Eliminate changeovers & reduce tooling costs
  • Pick parts of different size and shapes
  • Automate all your applications with one gripper
  • Program your application in minutes

Application

The 2F-85 and 2F-140 Adaptive Grippers are the world’s best-selling grippers for collaborative robots. Use them to accomplish a complete lineup of applications with a fast time-to-production—no robotics expertise required. They’re key to a highly flexible and reliable robotic cell.

Gripper Features



Built for collaborative robots

  • Two wide stroke options: 85 mm and 140 mm
  • Patented finger design enables both internal and external parallel gripping, as well as a unique encompassing grip mode



Simple to program

  • One easy-to-use software interface for all Adaptive Gripper models
  • Built-in grip and dimension validation
  • Automatic part detection and position feedback



Suit industrial needs

  • Robust, factory-proven hardware
  • High pinch force and payload


Product Information

1
Our Service
1. Swift delivery
For common parts, we can deliver the goods within 3 days
2. Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance



4. Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5. Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
