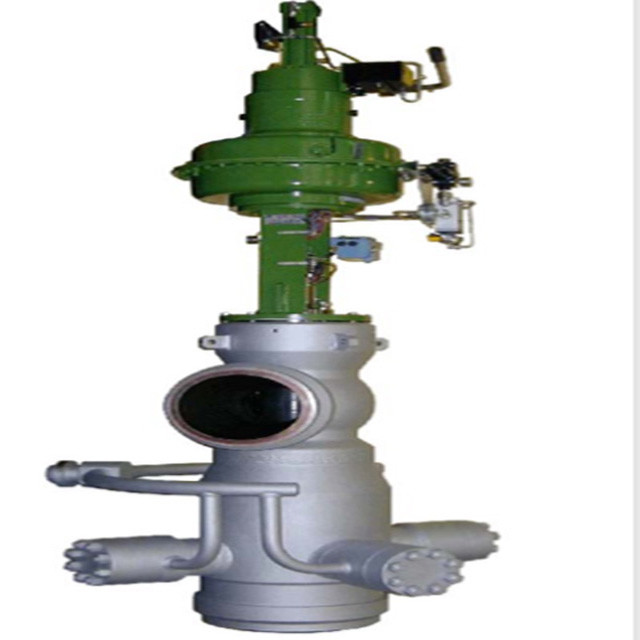

SA182 F91 14" Port Bypass Pneumatic Control Valve

Basic Information
Brand Name: Parcol
Model Number: 1-5700 series control valves
Minimum Order Quantity: 1
High Light:

Bypass Pneumatic Control Valve

,

14" Port Pneumatic Control Valve

,

SA182 F91 Bypass Valve

Parcol bypass valve pressure reducing and desuperheating stations 1-5700 series control valves

Specification



Product Name Parcol bypass valve pressure reducing and desuperheating stations 1-5700 series control valves
Model 1-5700 series control valves
Application bypass valve
Body rating up to ANSI 2500 (up to ANSI 4500 on request)
Body Material SA182 F91 / SA182 F22
Flanged Body Bonnet connection ANSI 150/600
Materials of construction trim parts are usually made of nitrided or stellited F6NM alloy steel
port 14''
Desuperheater Parcol LVM 3-4122
inlet DN 24" ANSI 600 BW
outlet DN 48" ANSI 300 BW
Leakage class up to class V both for balanced and unbalanced plug


Detailed Images

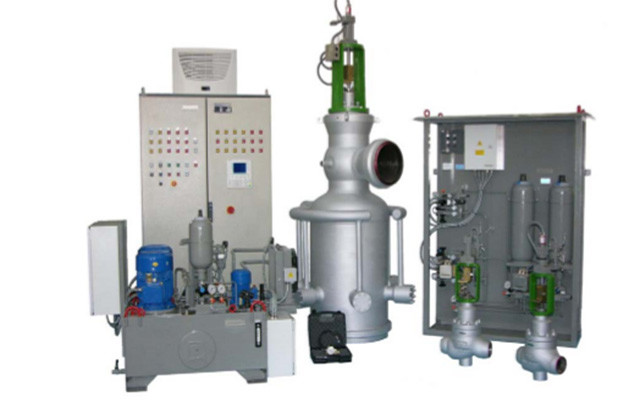

SA182 F91 14" Port Bypass Pneumatic Control Valve 0Parcol  bypass valve pressure  reducing and  desuperheating  stations 1-5700 series control valves1
