Floor Mounting Payload 210kg Welding 6 Axis Robot Arm

Basic Information
Place of Origin: China
Brand Name: KAWASAKI
Certification: CE
Model Number: CX210L
Minimum Order Quantity: 1 set
Packaging Details: One 6 axis robot arm CX210L industrial welding china robot with E02 robot controller for Kawasaki packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: 6 Axis Robot Arm CX210L Industrial Welding China Robot With E02 Robot Controller For Kawasaki Model: CX210L
Axis: 6 Payload: 210kg
Reach: 2699mm Type: Articulated Robot
Mounting: Floor Mass: 870kg
Color: Munsell 10GY9/1 Equivalent Installation: Floor Mounting
High Light:

Welding 6 Axis Robot Arm

,

210kg 6 Axis Robot Arm

,

Floor Mounting Articulated Robot Arm

6 axis robot arm CX210L industrial welding china robot with

E02 robot controller for Kawasaki





Specification



CX210L SPECIFICATIONS
Product name 6 axis robot arm CX210L industrial robot welding china robot with E02 robot controller for Kawasaki
Type Articulated Robot
Degrees of Freedom (axes) 6
Payload (kg) 210

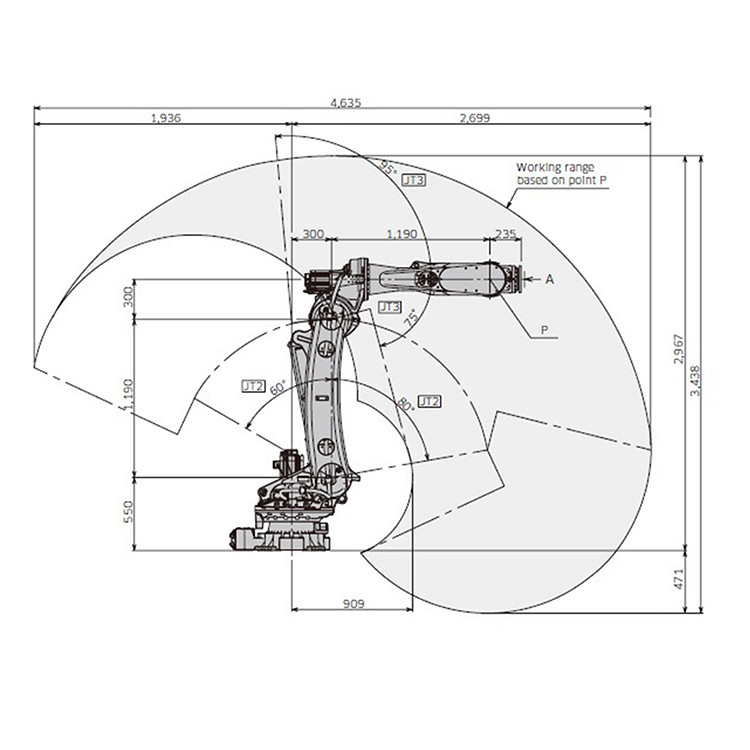

Max. Reach (mm) 2,699
Positional Repeatability (mm) ±0.06
Motion Range (°) Arm Rotation (JT1) ±160
Arm Out-in (JT2) +80 - −60
Arm Up-down (JT3) +95 - −75
Wrist Swivel (JT4) ±210
Wrist Bend (JT5) ±120
Wrist Twist (JT6) ±360
Max. Speed (°/s) Arm Rotation (JT1) 125
Arm Out-in (JT2) 115
Arm Up-down (JT3) 115
Wrist Swivel (JT4) 155
Wrist Bend (JT5) 160
Wrist Twist (JT6) 220
Allowable Moment (N•m) Wrist Swivel (JT4) 1,370
Wrist Bend (JT5) 1,370
Wrist Twist (JT6) 700
Allowable Moment of Inertia (kg•m2) Wrist Swivel (JT4) 199.8
Wrist Bend (JT5) 199.8
Wrist Twist (JT6) 154.9
Mass (kg) 870

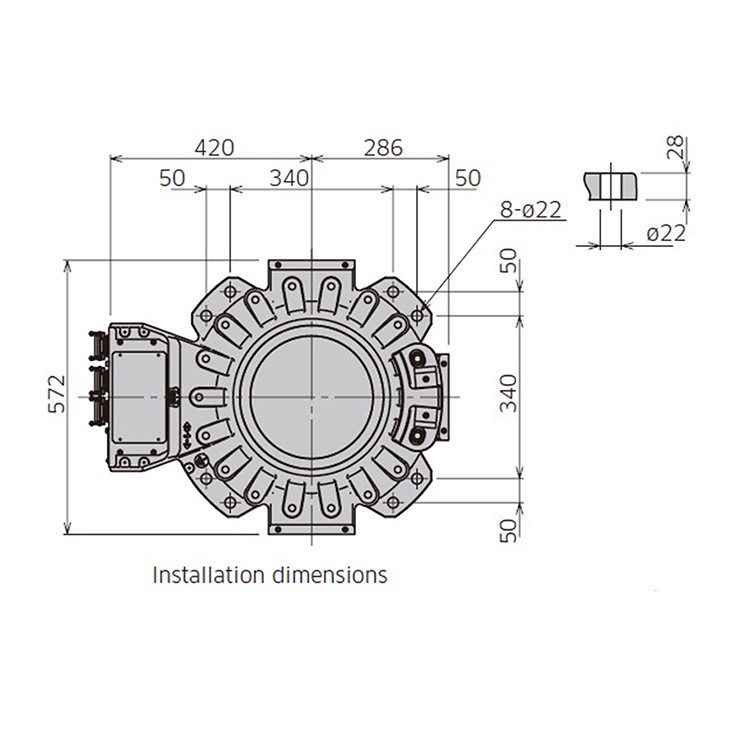

Mounting Floor
Installation Environment Ambient Temperature (°C) 0 - 45
Relative Humidity (%) 35 - 85 (No dew, nor frost allowed)
Controller / Power Requirements (kVA) America E02 / 7.5
Europe E02 / 7.5
Japan&Asia E02 / 7.5



Product Description

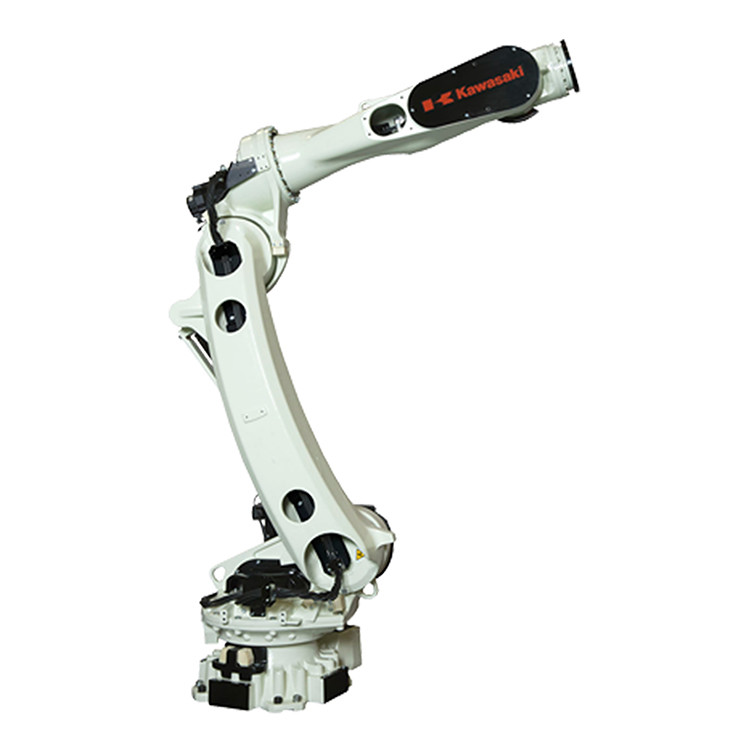

CX210L Robot

NEW GENERAL-PURPOSE LARGE PAYLOAD ROBOT

The CX210L robot has a payload capacity of 210 kg, the highest of the general-purpose CX series robots. The CX robots offer a large payload capacity and feature a robust, yet lightweight, hollow arm and a new smaller sized universal controller. The series high-speed and slim arm design was developed to suit a wide range of applications, from material handling to spot welding.


Applications:



Floor Mounting Payload 210kg Welding 6 Axis Robot Arm 0Floor Mounting Payload 210kg Welding 6 Axis Robot Arm 1



















1
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
