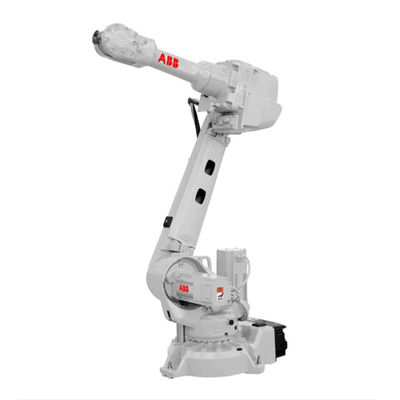

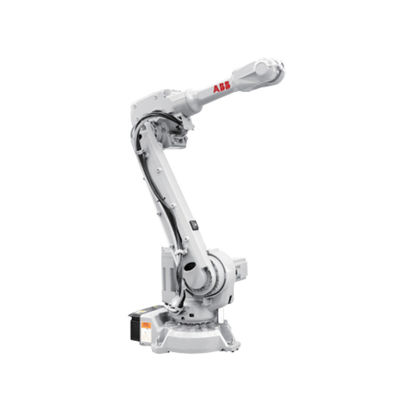

6 Axis robot arm IRB2600 reach 1650mm IP67 industrial robot with laser welding machine

Basic Information
Place of Origin: China
Brand Name: ABB
Certification: CE
Model Number: IRB2600
Minimum Order Quantity: 1 set
Price: USD 20000/set
Packaging Details: One Automatic ABB Robot Arm IRB2600 Small Welding Robot 6 Axis 20kg Handling Capacity with robotiq gripper packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: Automatic ABB Robot Arm IRB2600 Small Welding Robot 6 Axis 20kg Handling Capacity With Robotiq Gripper Axis: 6
Payload: 20kg Reach: 1650mm
Mounting: Floor, Wall, Shelf, Tilted, Inverted Handling Capacity: 20kg
Supply Voltage: 200-600 V, 50/60 Hz Controller: IRC5 Single Cabinet
Protection: Standard IP67; Optional FoundryPlus 2
High Light:

20kg ABB Robot Arm

,

6 Axis ABB Robot Arm

,

1650mm Robotic Welding Arm

Automatic ABB Robot Arm IRB2600 Small Welding Robot 6

Axis 20kg Handling Capacity with robotiq gripper

Specification



Robot version Reach (m) Handling capacity (kg) Max wrist torque (Nm) Max wrist torque (Nm)
Axis 4 & 5 Axis 6
IRB 2600-20/1.65 1.65 20 36.3 16.7
IRB 2600-12/1.65 1.65 12 21.8 10
IRB 2600-12/1.85 1.85 12 21.8 10
Number of axes 6+3 external (up to 36 with MultiMove)
Protection Standard IP67; optional FoundryPlus 2
Mounting Floor, wall, shelf, tilted, inverted
Controller IRC5 Single cabinet, IRC5 Dual cabinet



Performance (according to ISO 9283)

Robot version Position repeatability RP Path repeatability RT
(mm) (mm)
IRB 2600-20/1.65 0.04 0.13
IRB 2600-12/1.65 0.04 0.14
IRB 2600-12/1.85 0.04 0.16



Motion range
Axis 1 rotation +180° to -180°
Axis 2 arm +155° to -95°
Axis 3 arm +75° to -180°
Axis 4 wrist +400° to -400° Max. rev: +251 to -251
Axis 5 bend +120° to -120°
Axis 6 turn +400° to -400° Max. rev: + 274 to - 274

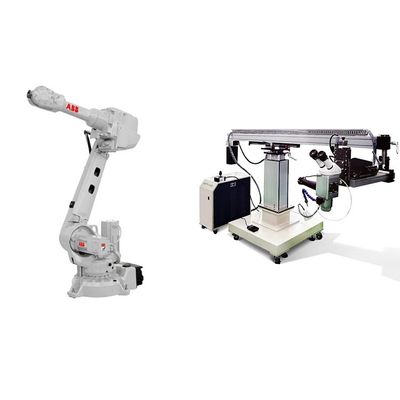

6 Axis robot arm IRB2600 reach 1650mm IP67 industrial robot with laser welding machine 06 Axis robot arm IRB2600 reach 1650mm IP67 industrial robot with laser welding machine 1

Product Description



IRB 2600

ABB further extends its mid range robot family



The IRB 2600 is the second model in the sharp generation range with enhanced and new capabilities. It is a compact robot with a high payload capacity. The design has been optimized for targeted applications like arc welding, material handling and machine tending. The IRB 2600 is available in three variants, with options for floor, wall, shelf, tilted or inverted mounting onfigurations.



Sharp accuracy

With the best accuracy in its class, the IRB 2600 can help you increase output with higher process speeds and lower scrap rates, resulting in improved productivity. This is particularly useful in process applications, such as arc welding. The high accuracy is achieved by use of the patented TrueMove™ motion control software.



Short cycle times

Thanks to the compact and optimized design resulting in a low weight, the IRB 2600 can cut the cycle times of the industry benchmark by up to 25 %. The patented QuickMove™ motion control software ensures that the maximum acceleration achievable is highest in its class, together with high maximum speeds. The benefit is increased production capacity and high productivity.



Large working range

The combination of large working range and flexible mounting makes it possible to reach machines to be served without interfering with auxiliary equipment. By optimising the robot placement, you’ll benefit from higher productivity. Flexible mounting is also very useful when you are simulating the best position for your application.



Compact design

The IRB 2600 has the same small foot print as IRB 4600. With the IRB 2600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines. The robots’ design makes it easier for the lower arm to reach straight downwards. Best protection available ABB has the most comprehensive protection program for industrial robots on the market. The IRB 2600 has IP67 as standard and FoundryPlus 2 as option.



Main applications

• Arc Welding

• Assembly

• Material Handling

• Machine Tending

• Material Removal

• Cleaning/Spraying

• Dispensing • Packing
