150W Max Payload 3kg Collaborative 6 Axis Robotic Arm

Basic Information
Place of Origin: China
Brand Name: AUBO
Certification: ce EAC
Model Number: i3
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999set /month
Maximum Reach: 832 Mm Maximum Payload: 3kg
Number Of Axis: 6 Mounting Position: Floor/ Ceiling/Wall
Pose Repeatability: (ISO 9283):± 0.02 Mm Lifetime: 30000h
High Light:

Collaborative 6 Axis Robotic Arm

,

3kg 6 Axis Robotic Arm

,

150W Robotic Arm Parts

Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA



Main Specifications
Maximum reach:832 mm
Maximum payload:3kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:150W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description
Product Name Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA
Application Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA ,main application welding assenbly and stacking ,palletizing collaborative.
Model Aubo i3
Robot Arm
Maximum reach 832 mm
Maximum payload 3 kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Lifetime 30000h
Weight 15.5 kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 150W
Material Aluminum alloy
Ambient temperature 0-45°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±175°
A2 ±175°
A3 ±175°
A4 ±175°
A5 ±175°
A6 ±175°
Controller
Size 380mm*350mm*258mm
Weight 15Kg
Cable length 5m
Colour Black
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP54
I/O port 16 in/16 out
Teach pendant
Size 355mm*235mm*54mm
Weight 1.57Kg
Screen 12 inch Resistive LCD touch screen
Cable length 4m
Protection rating IP54
Colour Orange+black

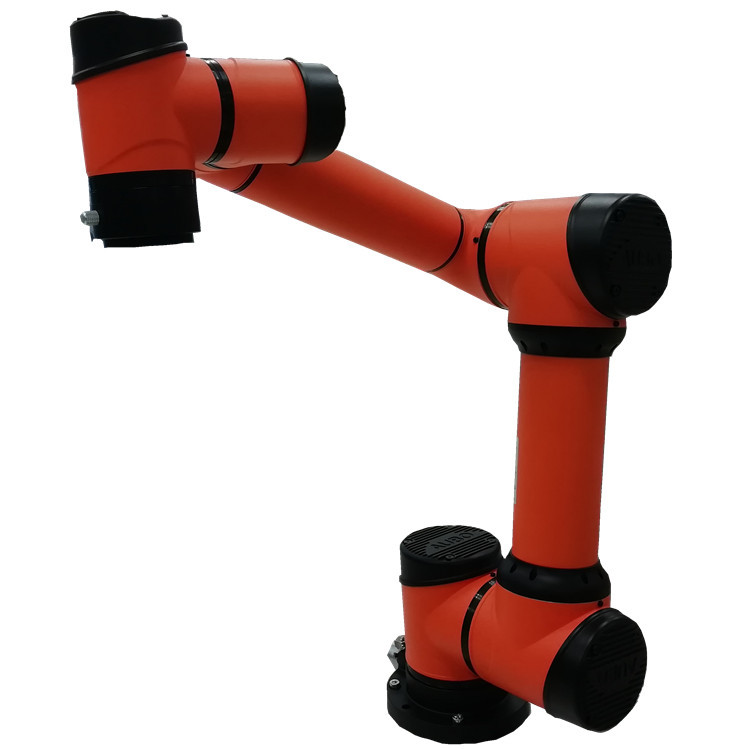

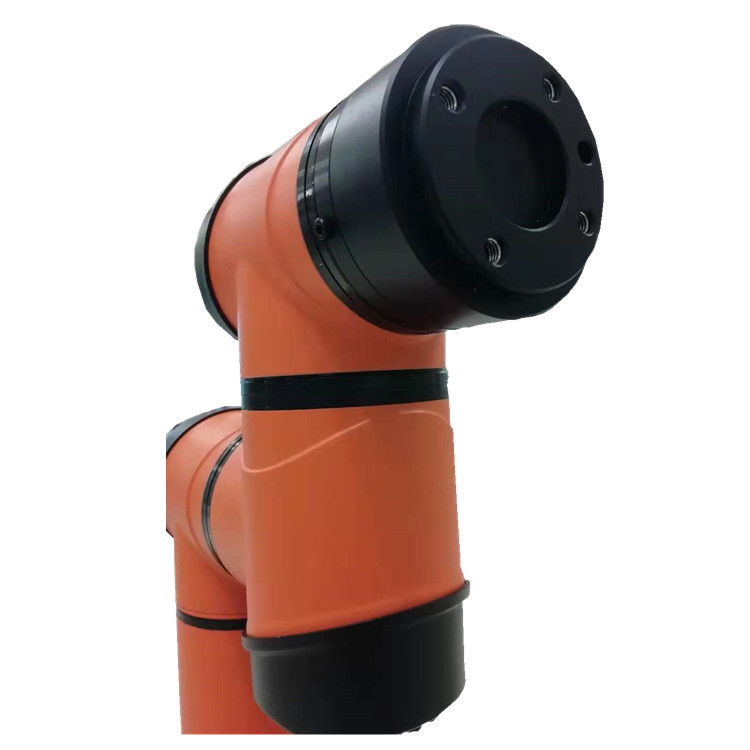

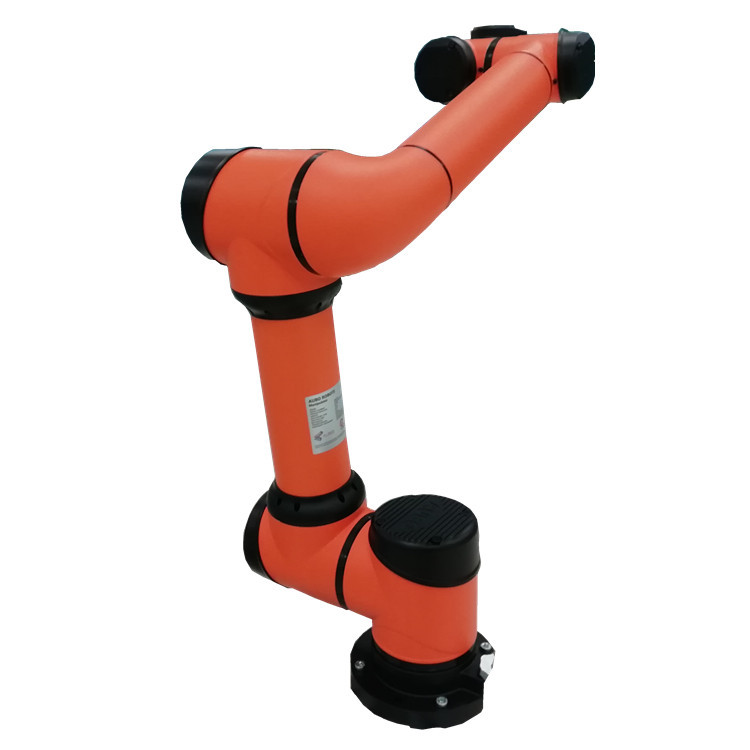

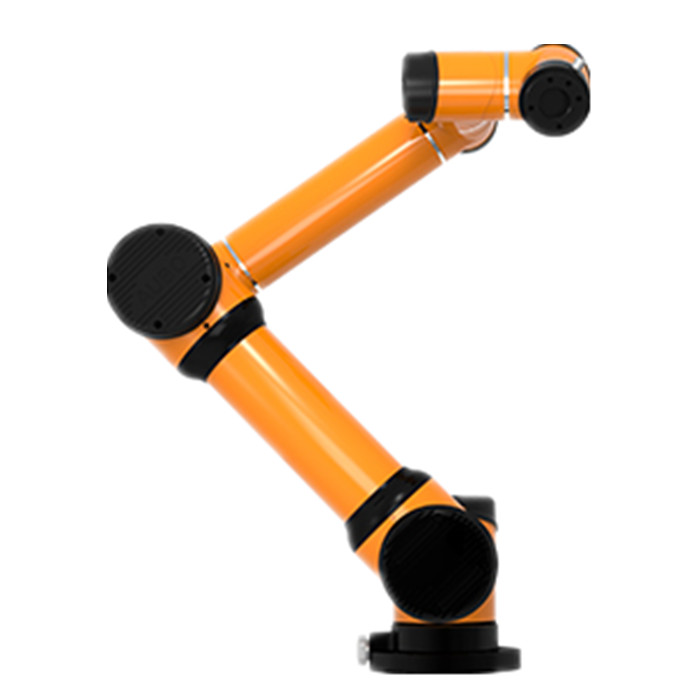

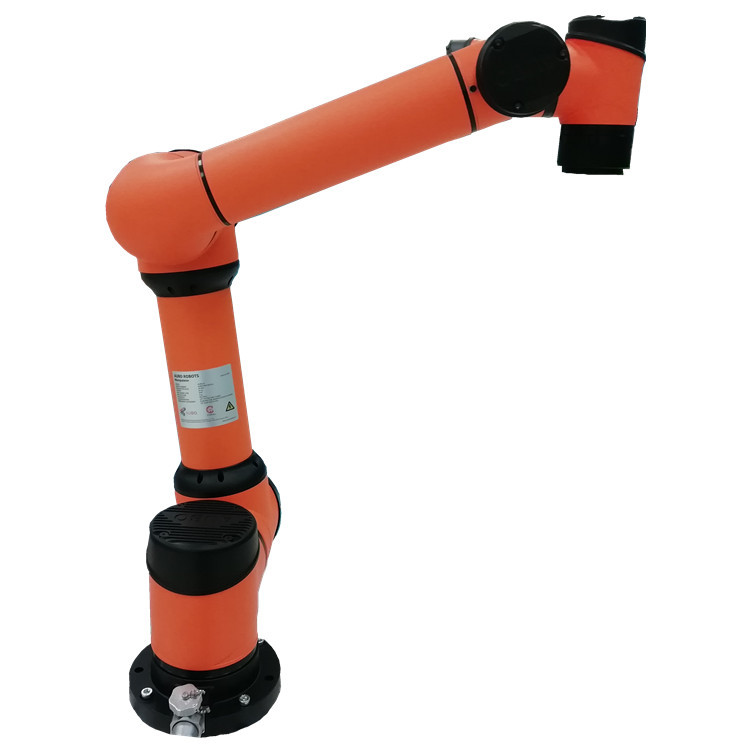

Detailed Images

Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 7Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 8Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 8Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 9

Collaborative robot AUBO i3 6 axis  low cost high lifetime mini industrial collaborative robot assembly cobot  CHINA
