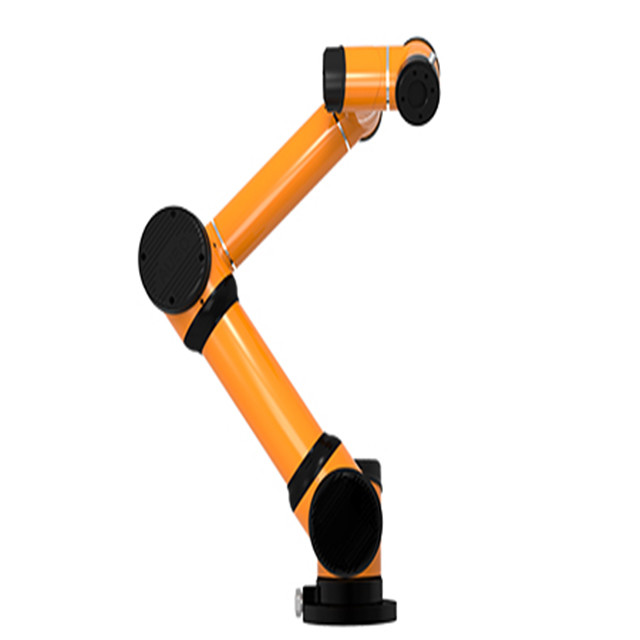

DC 48V Collaborative 6 Axis 200W Industrial Robot Arm

Basic Information
Place of Origin: China
Brand Name: Aubo
Certification: ce eac
Model Number: i5
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 set /month
Maximum Payload: 5 Kg Maximum Reach: 924.5 Mm
Pose Repeatability (ISO 9283): ± 0.02 Mm Number Of Axes: 6
Mounting Position: Floor/ Ceiling/Wall I/O Port: 16 In/16 Out
High Light:

6 Axis Industrial Robot Arm

,

200W Industrial Robot Arm

,

DC 48V Collaborative Robot Arm

Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china



Main Specifications:


Maximum reach:924.5 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description
Product Name Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china
Application Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china; 6 axis industrial robot arm ;low cost industrial robot ;welding robot china;
Model Aubo i5
Robot Arm
Maximum reach 924.5 mm
Maximum payload 5 kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor/ Ceiling/Wall
Lifetime 30000h
Weight 24 kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 200W
Material Aluminum alloy
Ambient temperature 0-45°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±175°
A2 ±175°
A3 ±175°
A4 ±175°
A5 ±175°
A6 ±175°
Controller
Size 727mm*623mm*235mm
Weight 20Kg
Cable length 5m
Colour Black
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP54
I/O port 16 in/16 out
Teach pendant
Size 355mm*235mm*54mm
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 4m
Protection rating IP54
Colour Orange+black
Detailed Images

Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 1Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 2Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 3Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 4Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 5Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china e6Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 7Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 8Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 8Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china 9
