The ROTORK YTC YT-3700 / 3750 series Smart electric actuator valve positioner for rotork actuator

The ROTORK YTC YT-3700 / 3750 series Smart electric actuator valve positioner for rotork actuator

Brand Name:

Vanessa

Model Number:

3700/3750

Contact Us

Request A Quote
Product Details
Product Name:
ROTORK YTC YT-3700 / 3750 Series Smart Valve Positioner
Brand:
ROTORK
Model:
YT-3700 / 3750
Matrial:
Alloy/Steel
Valve Style:
Positioner
Impedance:
Max.500 20mA DC
Supply Pressure:
0.14~0.7Mpa
Linearity:
±0.5% F.S
Hysteresis:
±0.5% F.S
Sensitivity:
±0.2% F.S
Reapeatability:
±0.3% F.S
Product Description

The ROTORK YTC YT-3700 / 3750 series Smart electric actuator valve positioner for rotork actuator

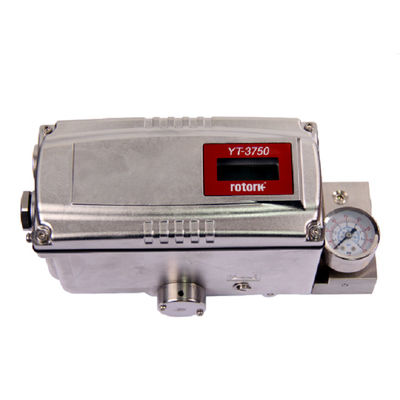

product image

The ROTORK YTC YT-3700 / 3750 series Smart electric actuator valve positioner for rotork actuator

Smart Positioner YT-3700 / 3750 series Smart Valve Positioner accurately controls valve stroke in response to an input signal of 4~20mA from the controller. Built-in micro-processor optimizes the positioner’s performance and provides unique functions such as Auto-Calibration, PID Control, and HART Protocol Communications. .



Main Features

(1) LCD display enables users to monitor the positioner status.
(2) User will easily understand the method of using 4 buttons because it work same in all versions of firmware interfaces.
(3) When unexpected situation like momentary blackout happens, our positioner boot-time only take 0.5 second and this can minimize the travel of valve which consequentially increase the safety of system.
(4) Positioner operates normally even there are sudden changes in supply pressure and / or high vibration environment.
(5) The method of Auto Calibration is very simple.
(6) As an advantage of having very low air consumption, It could greatly reduce operating costs in large-scale plants.
(7) It is compatible with most of controllers.
(8) Orifices can be installed even in the field to minimize the hunting occurrence and optimize operating conditions.

Product Description



Product name The ROTORK YTC YT-3700 / 3750 series Smart electric actuator valve positioner for rotork actuator
Model YT-3700 / 3750
Output Signal 4 to 20 mA DC
Supply pressure 0.14~0.7Mpa
Impedance Max.500 20mA DC
Linearity ±0.5% F.S
Hysteresis ±0.5% F.S
Sensitivity ±0.2% F.S
Reapeatability ±0.3% F.S
Communication Hart(ver.7)
