JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm

1
MOQ
JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm
Features Gallery Product Description Request A Quote
Features
Specifications
Maximum Reach: 1073 Mm
Maximum Payload: 18 Kg
Pose Repeatability (ISO 9283): ± 0.03 Mm
Number Of Axes: 6
Mounting Position: Any Angle
Lifetime: 30000h
Power Consumption: 600W
Power Supply: DC 24V
Highlight:

6 Axis Collaborative Robotic Arm

,

600W Collaborative Robotic Arm

,

DC 24V Metal Robot Arm

Basic Infomation
Place of Origin: China
Brand Name: JAKA
Certification: ce eac
Model Number: JAKA Zu 18
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 999 sets/month
Product Description

JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm

Main Specifications
Maximum reach:1073 mm
Maximum payload:18 kg
Pose repeatability (ISO 9283):± 0.03 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc

Power consumption:600W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description
Product Name JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm
Application JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm mainly apply in high precision handling assembly
Model JAKA Zu 18
Robot Arm
Maximum reach 1073m
Maximum payload 18 kg
Pose repeatability (ISO 9283) ± 0.03 mm
Number of axes 6
Mounting position any angle
Lifetime 30000h
Weight 35kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 600W
Material Aluminum alloy
Ambient temperature 0-50°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±270°
A2 -85°,+265°
A3 ±175°
A4 -85°,+265°
A5 ±270°
A6 ±270°
Controller
Size 410mm*307mm*235mm
Weight 16Kg
Cable length 6m
Colour silver and red
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP44
I/O port 16 in/16 out
Teach pendant
Size 355mm*235mm*54mm
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 6m
Protection rating IP54
Colour silver and red

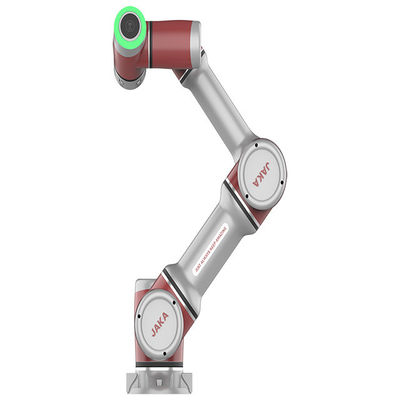

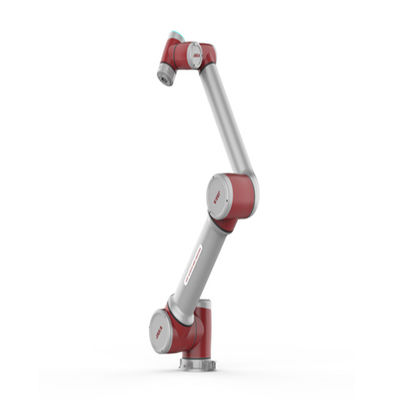

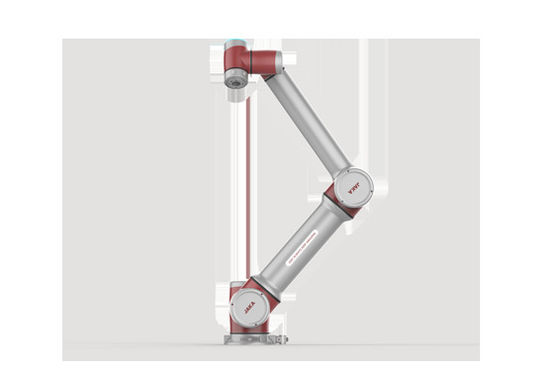

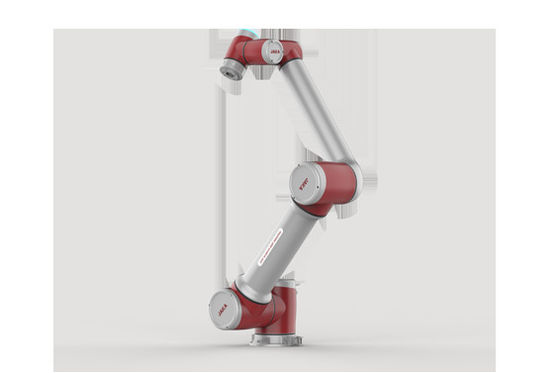

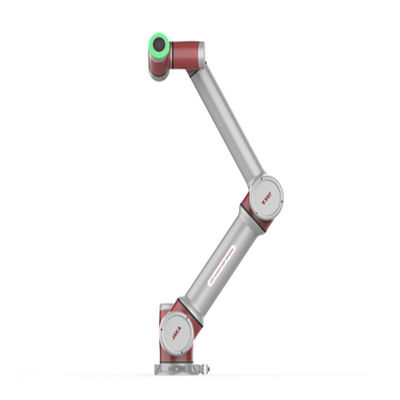

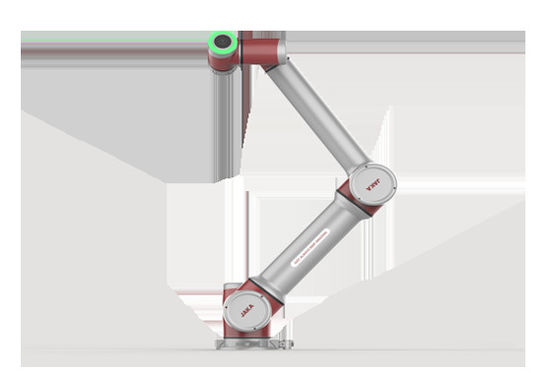

Detailed Images

JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm 0JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm 1JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm 2JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm 3

JAKA Zu 18 6 axis cobot arm with low cost price in China application on industrial joint cobot arm 4
