Place of Origin:
America
Brand Name:
onrobot
Certification:
ce eac
Model Number:
RG2-FT
Contact Us
Video
Video

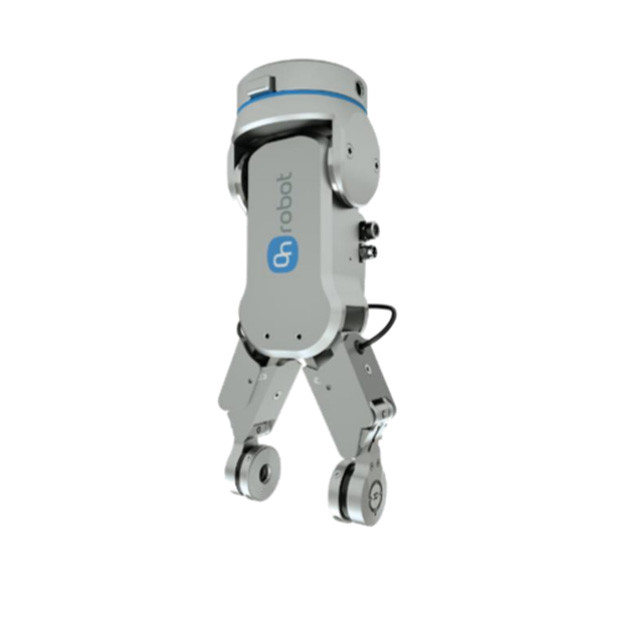

industrial robot arm spare parts gripper RG2-FT 6 axis grinding robot
Main Specifications
Model: onrobot robotic gripper RG2-FT
Power supply : 6.5 - 22V
Payload Force Fit : 2kg ( 4.4 lb)
Current consumption: 70 - 600 mA
Weight:1.25kg (2.76 lb)
Protection rating:IP54
| Production Name | industrial robot arm spare parts gripper RG2-FT 6 axis grinding robot |
| Model | onrobot robotic gripper RG2-FT |
| Application | robotic gripper |
| Power supply | 6.5 - 22V |
| Payload Force Fit | 2kg ( 4.4 lb) |
| Current consumption | 70 - 600 mA |
| Payload Form Fit | 4kg(8.8lb) |
| Storage temperature | 0(°C) ~60(°C) |
| Motor | Integrated, electric BLDC |
| Calculated MTBF | 30.000 hours |
| Weight | 1.25kg (2.76 lb) |
| Protection rating | IP54 |
| Relative humidity | 95% |
| Dimensions | 8.6 x 5.9 x 1.9 (inch) |
| Adjustable bracket tilting accuracy | < 1 |
| Gripping speed | 55 ~184[mm/s] |
| Gripping time | 0.04 /0.07 /0.11s |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Send your inquiry directly to us
