industrial robot arm spare parts gripper RG2-FT 6 axis grinding robot
Main Specifications

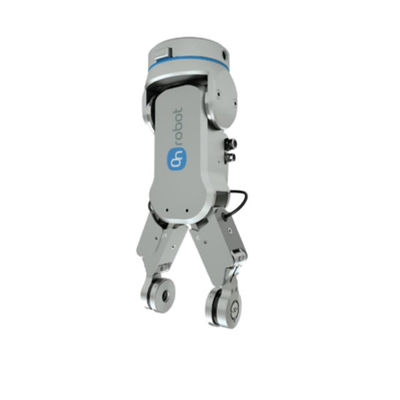

Model: onrobot robotic gripper RG2-FT
Power supply : 6.5 - 22V
Payload Force Fit : 2kg ( 4.4 lb)
Current consumption: 70 - 600 mA
Weight:1.25kg (2.76 lb)
Protection rating:IP54
| Production Name | industrial robot arm spare parts gripper RG2-FT 6 axis grinding robot |
| Model | onrobot robotic gripper RG2-FT |
| Application | robotic gripper |
| Power supply | 6.5 - 22V |
| Payload Force Fit | 2kg ( 4.4 lb) |
| Current consumption | 70 - 600 mA |
| Payload Form Fit | 4kg(8.8lb) |
| Storage temperature | 0(°C) ~60(°C) |
| Motor | Integrated, electric BLDC |
| Calculated MTBF | 30.000 hours |
| Weight | 1.25kg (2.76 lb) |
| Protection rating | IP54 |
| Relative humidity | 95% |

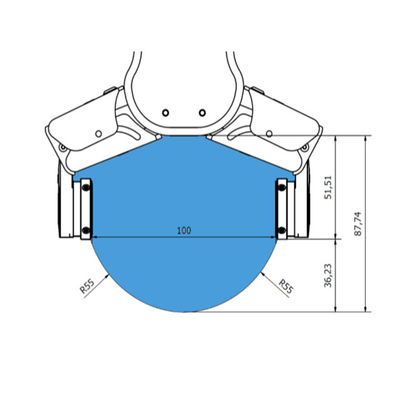

| Dimensions | 8.6 x 5.9 x 1.9 (inch) |
| Adjustable bracket tilting accuracy | < 1 |
| Gripping speed | 55 ~184[mm/s] |
| Gripping time | 0.04 /0.07 /0.11s |
