235N Stroke 85mm UR 5 Collaborative Robot Gripper

Basic Information
Place of Origin: Canada
Brand Name: robotiq
Certification: CE EAC
Model Number: 2F-85
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets/ month
Stroke (adjustable): 85 Mm Friction Grip Payload: 5 Kg
Gripper Mass: 0.9 Kg Grip Force (adjustable): 20 To 235 N
Ingress Protection (IP) Rating: IP40
High Light:

UR 5 Collaborative Robot Gripper

,

85mm Collaborative Robot Gripper

,

235N Collaborative Robot Gripper

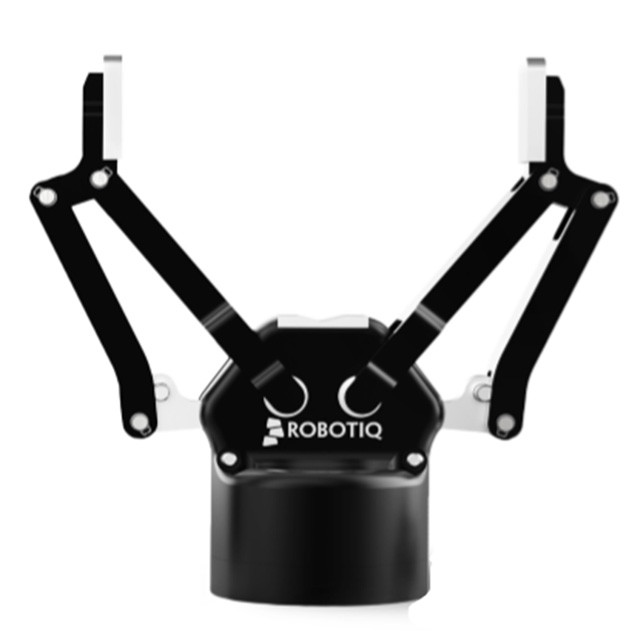

robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm

Main Specifications

Model: 2F-85 robotic gripper
Stroke (adjustable): 85 mm
Friction grip payload : 5 kg
Gripper mass : 0.9 kg
Ingress protection (IP) rating :IP40







Product Description
Production Name robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm
Model 2F-85 robotic gripper
Application robotic gripper
Stroke (adjustable) 85 mm
Form-fit grip payload 5 kg
Friction grip payload 5 kg
Grip force (adjustable) 20 to 235 N
Gripper mass 0.9 kg
Position resolution (fingertip) 0.4 mm
Ingress protection (IP) rating IP40
Closing speed (adjustable) 20 to 150 mm/s
Communication protocol Modbus RTU (RS-485)



6 axis industrial robot arm spare parts robotic gripper VG10  with sucking disc

Detailed Images

robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm robotiq 2F-85 robot gripper combine with UR 5 collaborative robot directly on sixth axis robot arm
