UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking

Basic Information
Place of Origin: Canada
Brand Name: robotiq
Certification: CE EAC
Model Number: 2F-140
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets/ month
Stroke (adjustable): 140mm Friction Grip Payload: 2.5kg
Gripper Mass: 1 Kg Grip Force (adjustable): 10 To 125 N
Ingress Protection (IP) Rating: IP40
High Light:

UR 10 Robotic Arm Parts

,

140mm Robotic Arm Parts

,

2.5kg Industrial Robot Parts

UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking

Main Specifications

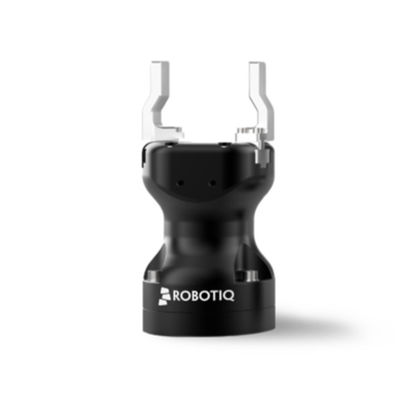

Model: 2F-140 robotic gripper
Stroke (adjustable): 140 mm
Friction grip payload : 2.5 kg
Gripper mass : 1 kg
Ingress protection (IP) rating :IP40







Product Description
Production Name UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking
Model 2F-140 robotic gripper
Application robotic gripper
Stroke (adjustable) 140 mm
Form-fit grip payload 2.5 kg
Friction grip payload 2.5 kg
Grip force (adjustable) 10 to 125 N
Gripper mass 1kg
Position resolution (fingertip) 0.6 mm
Ingress protection (IP) rating IP40
Closing speed (adjustable) 30 to 250 mm/s
Communication protocol Modbus RTU (RS-485)



UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking

Detailed Images

UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking  UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking  UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking  UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking  UR 10 collaborative robots combine with ROBOTIQ 2F-140 robotic gripper robot arm kit for material picking
