2.0KVA Arm Welding 2010mm 6 Axis Yaskawa Robot Arm

Basic Information
Place of Origin: China
Brand Name: Yaskawa
Model Number: MOTOMAN AR2010
Minimum Order Quantity: 1 set
Packaging Details: ONE YASKAWA MOTOMAN AR2010 industrial spot welding robot arm 6 Axis for Arc Welding machine packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
Delivery Time: 30 work days
Supply Ability: 5 sets per month
Product Name: 6 Axis Robot Arm YASKAWA AR2010 For Robot Arm Welding Industrial Robot Function: Multifunctional
Controlled Axes: 6 Max. Payload: 12kg
Repeatability: ±0.08mm Max. Working Range R: 2010mm
Temperature: 0-45 ℃ Humidity: 20%-80%
Weight: 260kg Power Supply, Average: 2.0KVA
High Light:

6 Axis Yaskawa Robot Arm

,

Yaskawa AR2010 Robot Arm

,

2010mm Yaskawa Robot Arm

6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot



Main Specifications:

Model:AR2010
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260kg

Specification



Product Name YASKAWA AR2010 industrial robot 6 Axis robot arm for robot arm welding 12kg Payload 2010mm Arm
Model AR2010
Application Arc Welding tasks
Maximum reach 2010mm
Maximum payload 12kg
Pose repeatability (ISO 9283) ± 0.08mm
Number of axes 6
Mounting position Floor, Wall, Ceiling
Weight 260 kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller

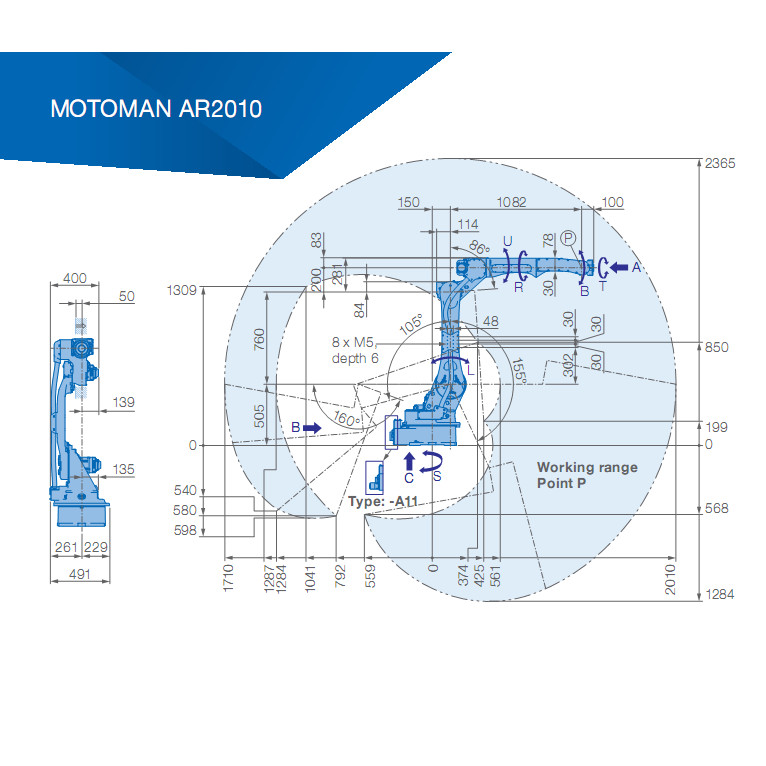

Motion range
S 180° to -180°
L 155° to -105°
U 160° tp -86°
R 200° to -200°
B 150° to -150°
T 455° to -455°





6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot

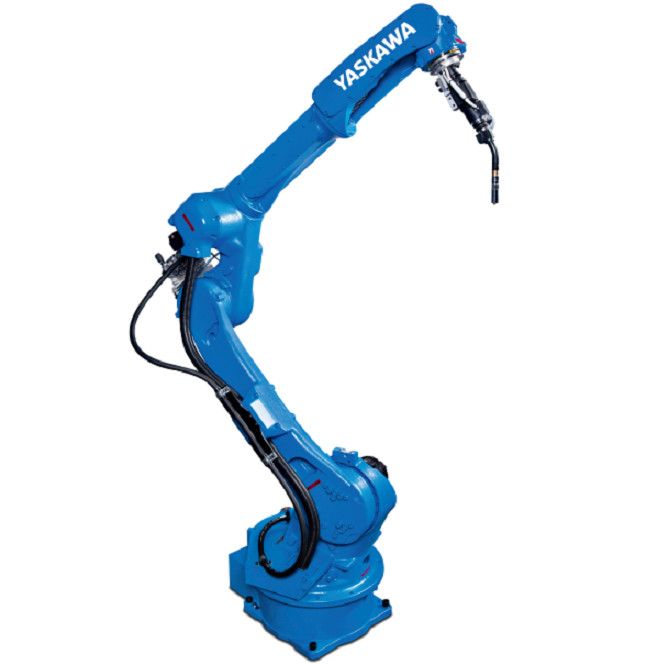

AR2010 Introduction:

The 6-axis robot MOTOMAN AR2010 of our AR series, thanks to its high path accuracy, is an optimal robot for arc welding applications.

6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot

With a payload of up to 12 kg and a wide working range of 2010 mm this robot supports welding of bulky workpieces. Its hollow arm design enables leading the welding cables and wire feeding through the arm to the wrist, which saves valuable space around it. The MOTOMAN AR2010 allows easy programming and enables high freedom of motion.

6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot

The wire feeder can be mounted in the prepared space at axis 3, supporting short distance and centric supply of the welding wire to the weld torch. The streamlined, slightly bowed arm structure reduces the interference area between the jigs and work pieces.

6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot

The robot is controlled by the YRC1000 controller which facilitates both programming and use with a wide range of functions specially designed for arc welding applications.



KEY BENEFITS
Wide motion range
High path accuracy
Easy programming
Less interferences due to optimized design



Applications:

Welding and simple machining of bulky and hard-to-access workpieces
