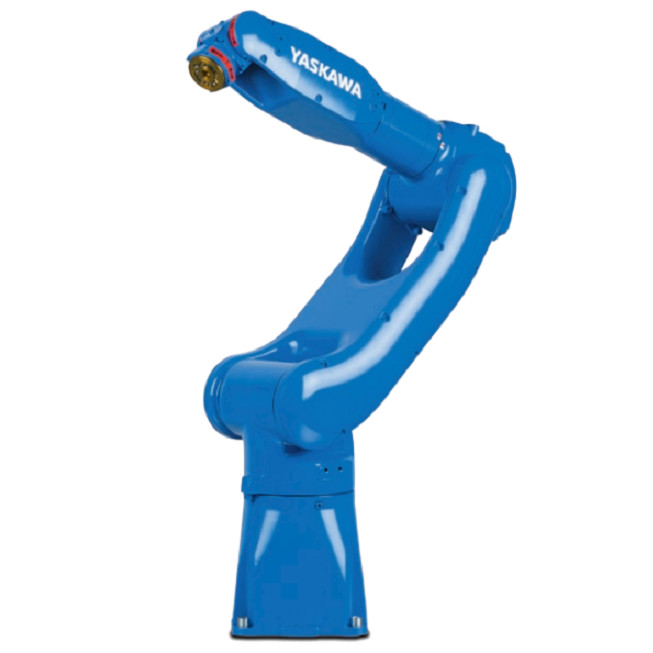

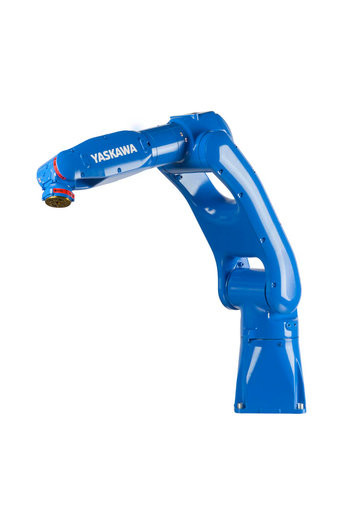

6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot
Main Specifications:
Model:GP7
Maximum reach:927mm
Maximum payload:7kg
Pose repeatability:± 0.03mm
Number of axes:6
Weight:34kg
| Product Name | 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot |
| Model | GP7 |
| Application | Handling & General Application |
| Maximum reach | 927mm |
| Maximum payload | 7kg |
| Pose repeatability (ISO 9283) | ± 0.03mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 34kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |

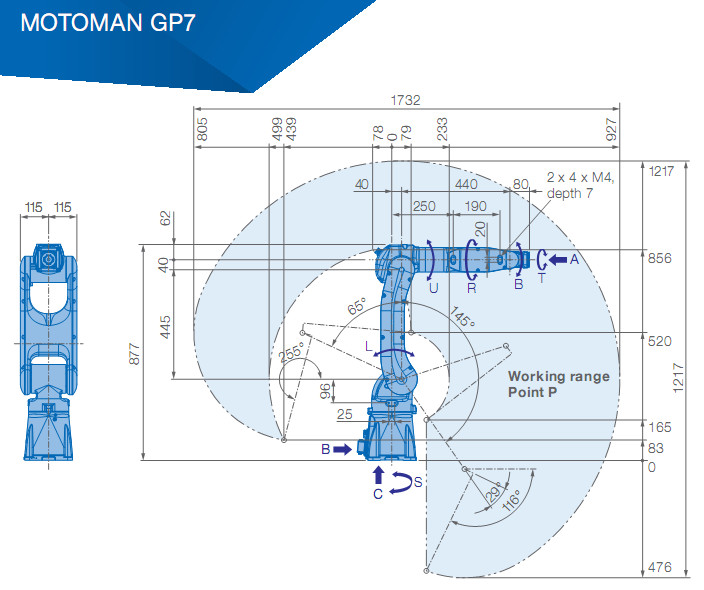

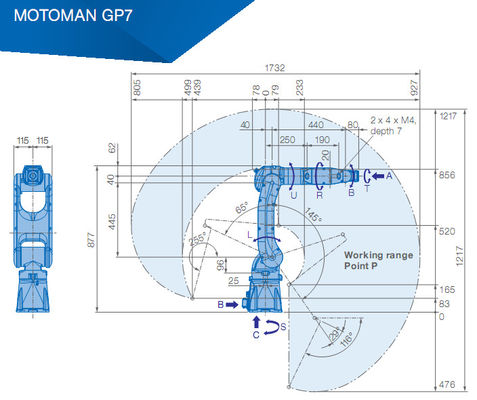

| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 190° tp -70° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
GP7 Introduction:

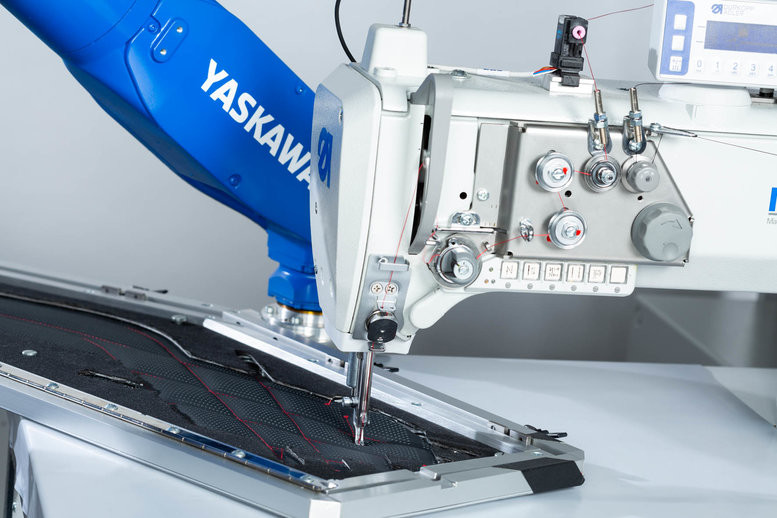

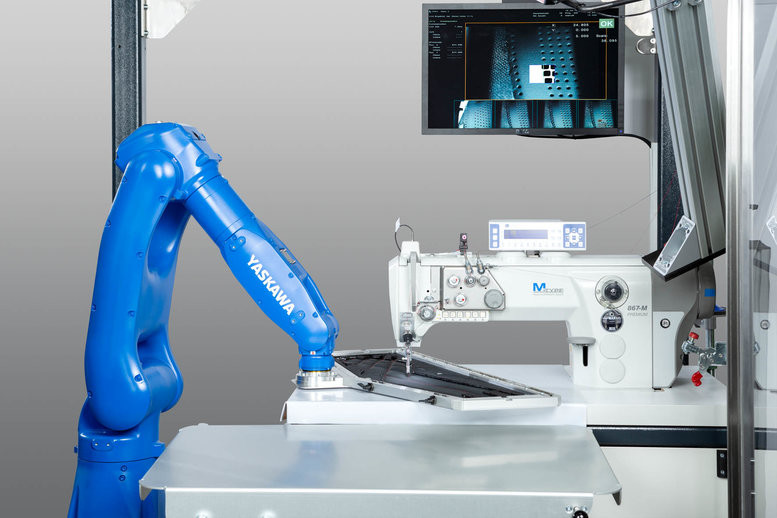

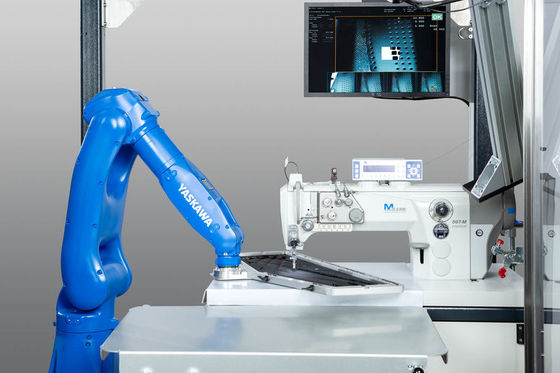

The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.03 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package.
A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics.
As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 927 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance
Applications:
Handling & General Application
