Place of Origin:
China
Brand Name:
Yaskawa
Model Number:
MOTOMAN GP12
Contact Us
Video
Video
Industrial robot arm YASKAWA GP12 for pick and place 12kg Payload 1440mm Arm robots
Main Specifications:
Model:GP12
Maximum reach:1440mm
Maximum payload:12kg
Pose repeatability:± 0.06mm
Number of axes:6
Weight:150kg
| Product Name | Industrial robot arm YASKAWA GP12 for pick and place 12kg Payload 1440mm Arm robots |
| Model | GP12 |
| Application | Handling & General Application |
| Maximum reach | 1440mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.06mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 150kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller |

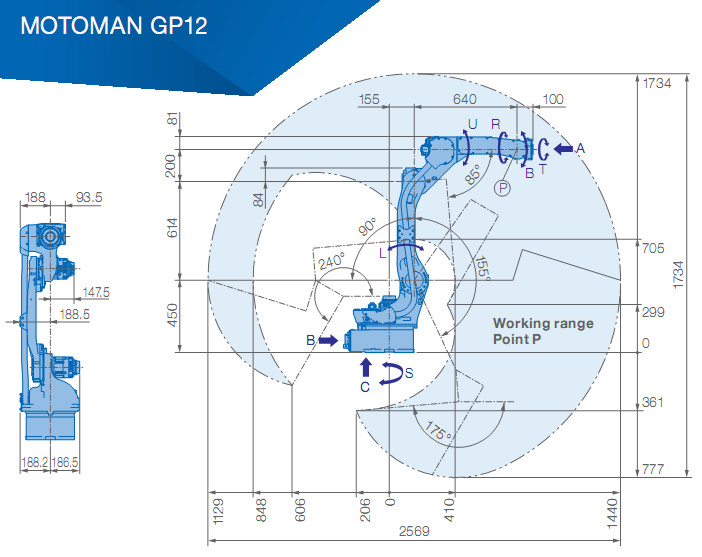

| Motion range | |
| S | 170° to -170° |
| L | 155° to -90° |
| U | 155° tp -85° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 455° to -455° |
GP12 Introduction:

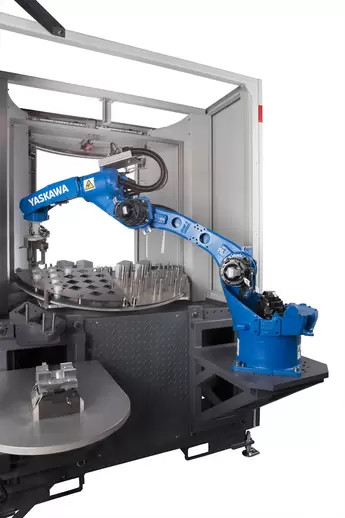

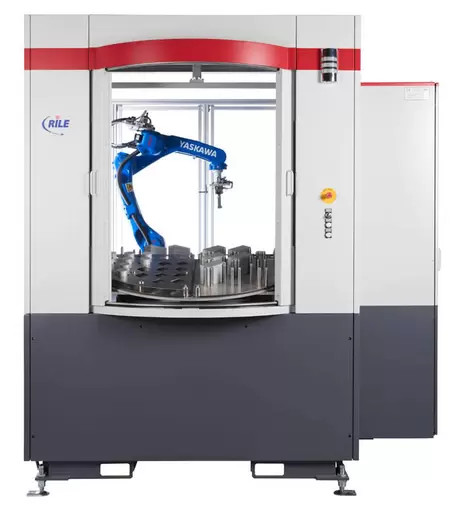

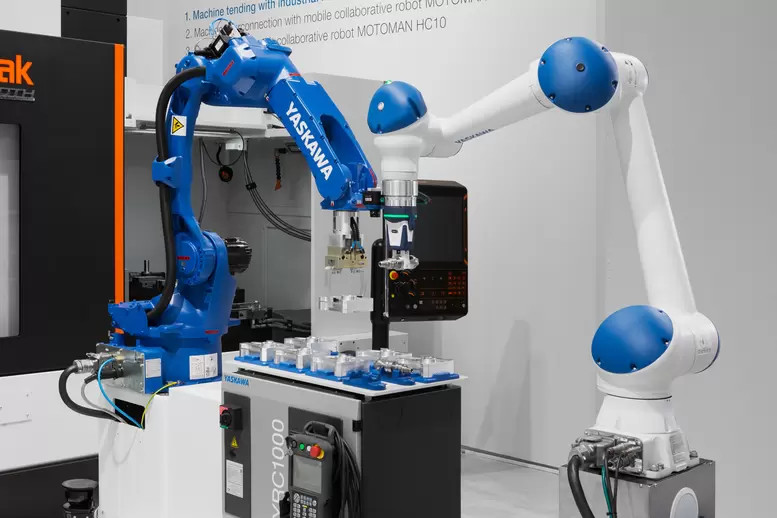

The MOTOMAN GP12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a reach of 1440 mm and a high repeatability of ± 0.08 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its streamlined modern industrial design minimizes the space requirements at the installation site.
The prepared routing of the supply lines through the hollow arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours.
With the MOTOMAN GP12 and numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000 micro controller a wide range of applications can be realized. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the Smart Pendant, it provides an excellent point of entry into industrial automation.
As standard, the MOTOMAN GP12 is designed with the high protection classification IP67 (wrist). Other variants (e.g. with food-compatible grease in the food industry, special anticorrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
• Fast and powerful
• Compact and flexible
• Large working range: 1440 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance
Applications:
Handling & General Application
