Yaskawa GP25-12 12kg Payload 2010mm 6 Axis Robot Arm

Basic Information
Place of Origin: China
Brand Name: Yaskawa
Model Number: MOTOMAN GP25-12
Minimum Order Quantity: 1 set
Packaging Details: ONE Yaskawa large industrial total station robotic 6 axis YRC1000 material handling machine packing with fumigation wooden frame, WG:605KG Controller and other parts packing with brown box, WG:75KG Total WG:680KG(>VG)
Delivery Time: 30 work days
Supply Ability: 5 sets per month
Product Name: 6 Axis Robot Arm GP25-12 Pick And Place Machine Industrial Robot Function: Multifunctional
Controlled Axes: 6 Max. Payload: 12kg
Repeatability: ±0.08mm Max. Working Range R: 2010mm
Temperature: 0-45 ℃ Humidity: 20%-80%
Weight: 260kg Power Supply, Average: 2.0KVA
High Light:

2010mm 6 Axis Robot Arm

,

12kg Payload 6 Axis Arm

,

2.0KVA Yaskawa Robot Arm

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot





Main Specifications:

Model:GP25-12
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260 kg

Specification



Product Name 6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot
Model GP25-12
Application Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place,
Maximum reach 2010mm
Maximum payload 12kg
Pose repeatability (ISO 9283) ± 0.08mm
Number of axes 6

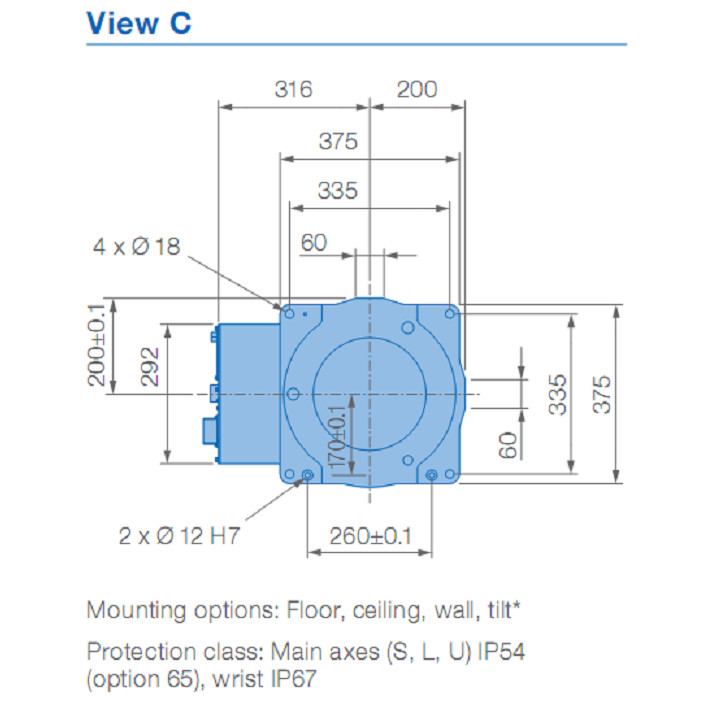

Mounting position Floor, Wall, Ceiling
Weight 260 kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller

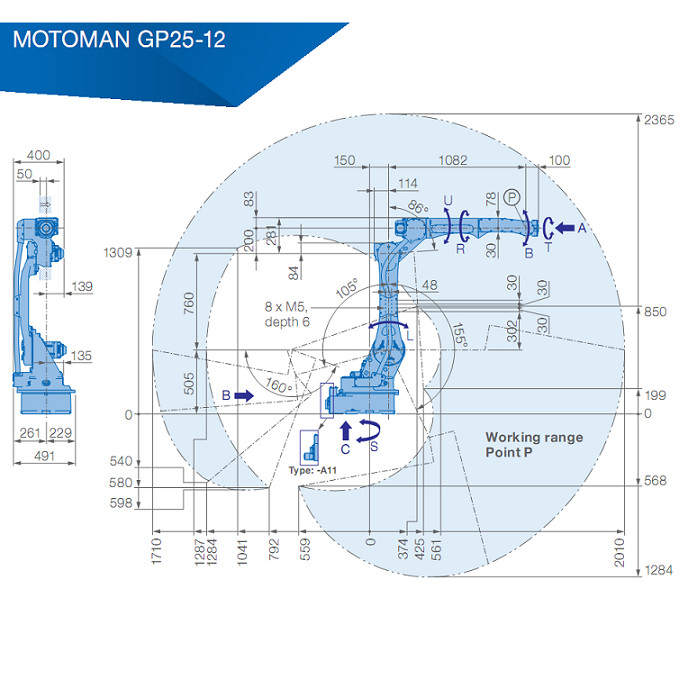

Motion range
S 180° to -180°
L 155° to -105°
U 160° tp -86°
R 200° to -200°
B 150° to -150°
T 455° to -455°

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot



GP25-12 Introduction:

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot

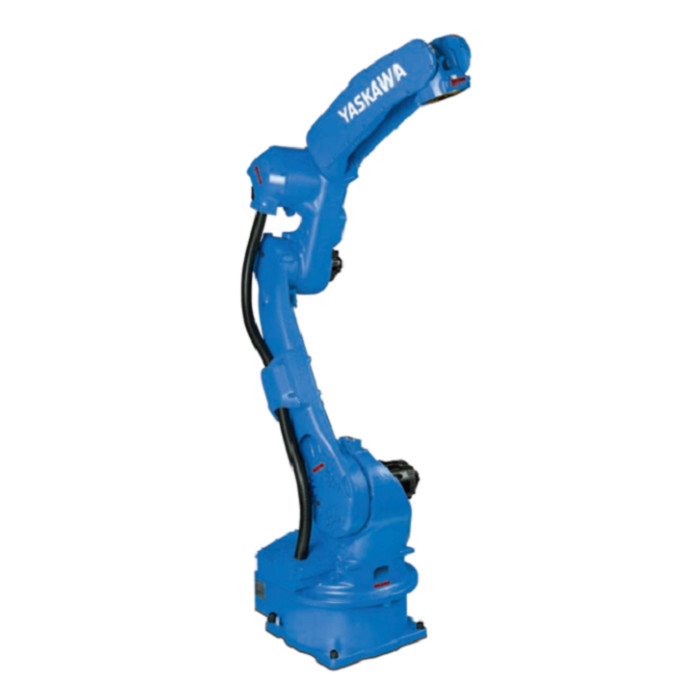

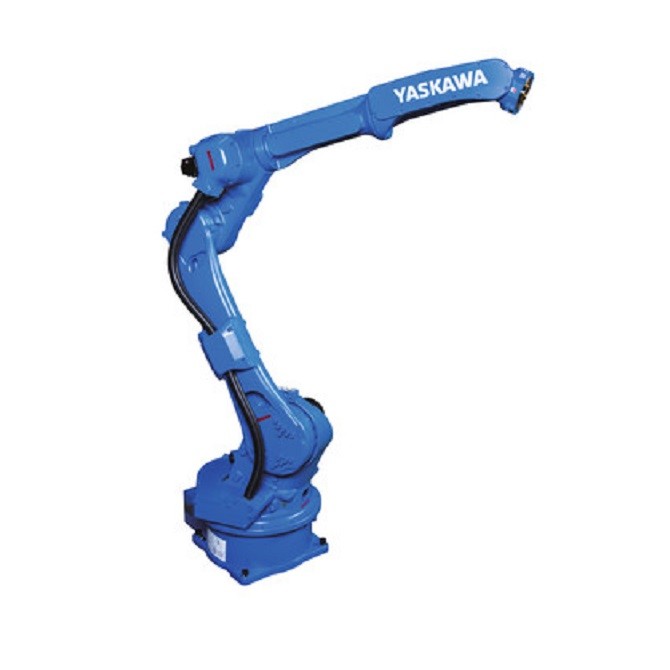

The MOTOMAN GP25-12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a even larger working range, which reach of 2010 mm and a high repeatability of ±0.08mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. The streamlined modern industrial design minimizes the space requirements at the installation site.

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot

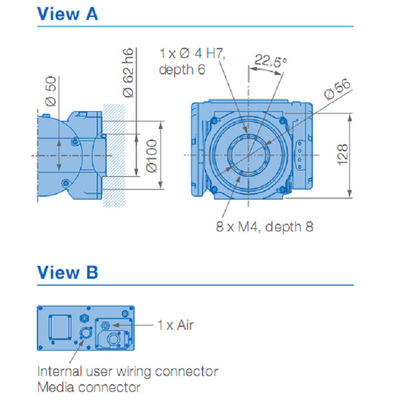

Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into the environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours.

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot

A world of possibilities is open to the MOTOMAN GP25-12 robots with the numerous functions of the MOTOMAN YRC1000 controller. In conjunction with the conventional teach pendant, these robots are reliable mechanical engineering partners. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into industrial automation.

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot

As standard, the MOTOMAN GP25-12 are designed with the high protection classification IP67(wrist). Other variants of the MOTOMAN GP25 (e.g. with food-compatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.



KEY BENEFITS

Flexible, fast and powerful
Large working range: 2010 mm
Reduced interference contours due to optimized design
Simple commissioning and maintenance



Applications:
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, IP67
