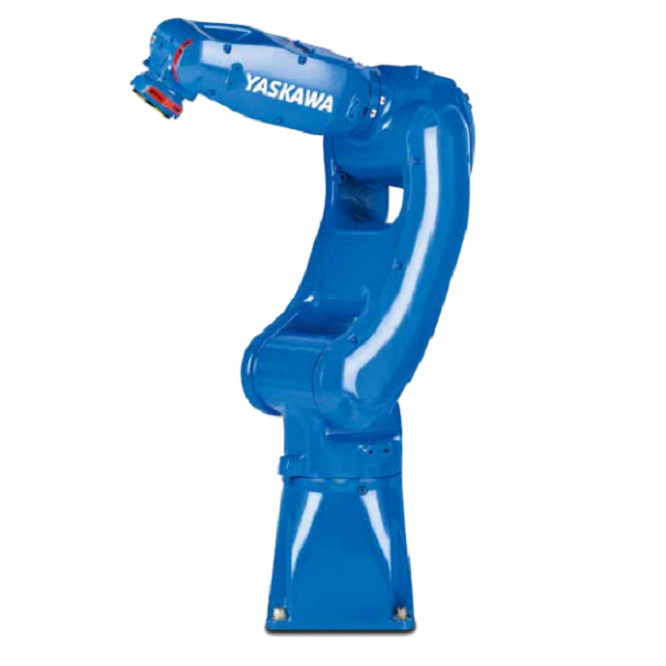

Pick And Place IP67 927mm 6 Axis Yaskawa Robot Arm

Basic Information
Place of Origin: China
Brand Name: Yaskawa
Model Number: MOTOMAN GP7 ACC
Minimum Order Quantity: 1 set
Packaging Details: ONE YASKAWA GP7 ACC industrial robot 6 Axis robot arm for pick and place in corrosive Environments machine packing with fumigation wooden frame, WG:205KG Controller and other parts packing with brown box, WG:75KG Total WG:280KG(>VG)
Delivery Time: 30 work days
Supply Ability: 5 sets per month
Product Name: 6 Axis Robot GP7 ACC For Pick And Place Machine Industrial Robot Function: Multifunctional
Controlled Axes: 6 Max. Payload: 7kg
Repeatability: ±0.03mm Max. Working Range R: 927mm
Temperature: 0-45 ℃ Humidity: 20%-80%
Weight: 34kg Power Supply, Average: 1.0KVA
High Light:

6 Axis Yaskawa Robot Arm

,

927mm Yaskawa Robot Arm

,

IP67 Yaskawa Robot Arm

6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot



Main Specifications:

Model:GP7 ACC
Maximum reach:927mm
Maximum payload:7kg
Pose repeatability:± 0.03mm
Number of axes:6
Weight:34kg





Specification



Product Name 6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot
Model GP7 ACC
Application Handling & General Application in corrosive Environments
Maximum reach 927mm
Maximum payload 7kg
Pose repeatability (ISO 9283) ± 0.03mm
Number of axes 6
Mounting position Floor, Wall, Ceiling
Weight 34kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller
Motion range
S 170° to -170°
L 145° to -65°
U 255° tp -116°
R 19 to -190°
B 135° to -135°
T 360° to -360°



6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot





GP7 ACC Introduction:

6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot

Increase Productivity

Highest payloads, speeds and wrist allowable moment in its class
• A variety of workpieces can be transferred and different grippers can be mounted with 7-kg payloads and 38 % greater allowable moment
• Speeds of all axes have been increased by 39 % (max)
• Acceleration/deceleration control has been improved to achieve maximum reduction of acceleration/deceleration times for all robot postures

6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot

6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot

Make Equipment compact

Slim and easy-to-use structure
• Slim robot body requires minimum installation space (minimizes L-U axis offset)
• The manipulator cable can be connected at the bottom section, which reduces interference with walls and requires far less installation space when compared with cable connections on the side of the robot
• Increased maximum reach and horizontal reach enables robots to operate in wider work areas
• The slim, straight, and symmetrical arm design minimize interference with peripheral devices even in small spaces

6 axis robot YASKAWA GP7 ACC for pick and place machine in corrosive Environments 7kg Payload 927mm Arm industrial robot







KEY BENEFITS

• Anti-Corrosive painting allows robot to be used in environments with corrosive atmosphere such as acids, alkali and vapors
• Drip proof design assures smooth disposal of a liquid on the robot surface
• Excellent resistance to oil and chemicals
• Good abrasion resistance



Applications:
Handling & General Application in corrosive Environments, IP67
