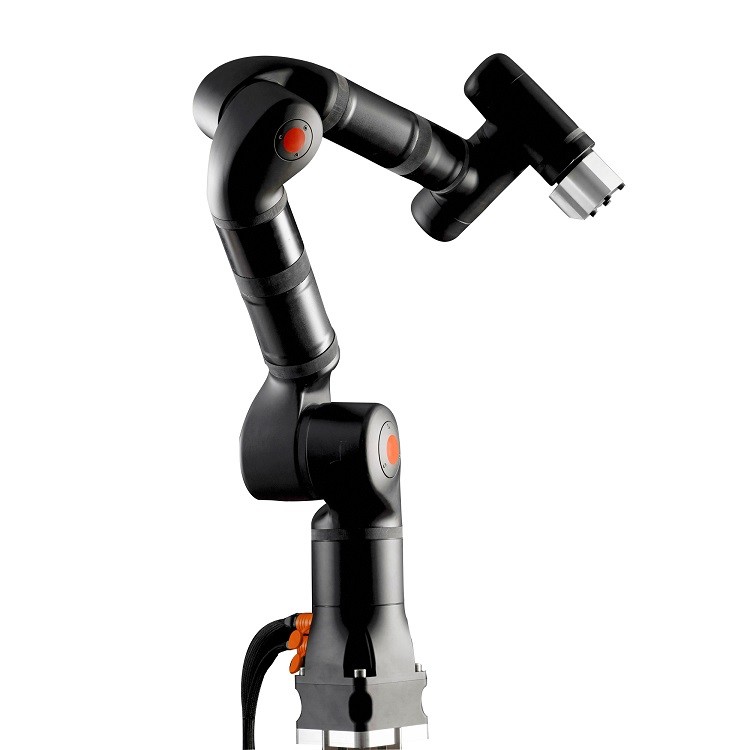

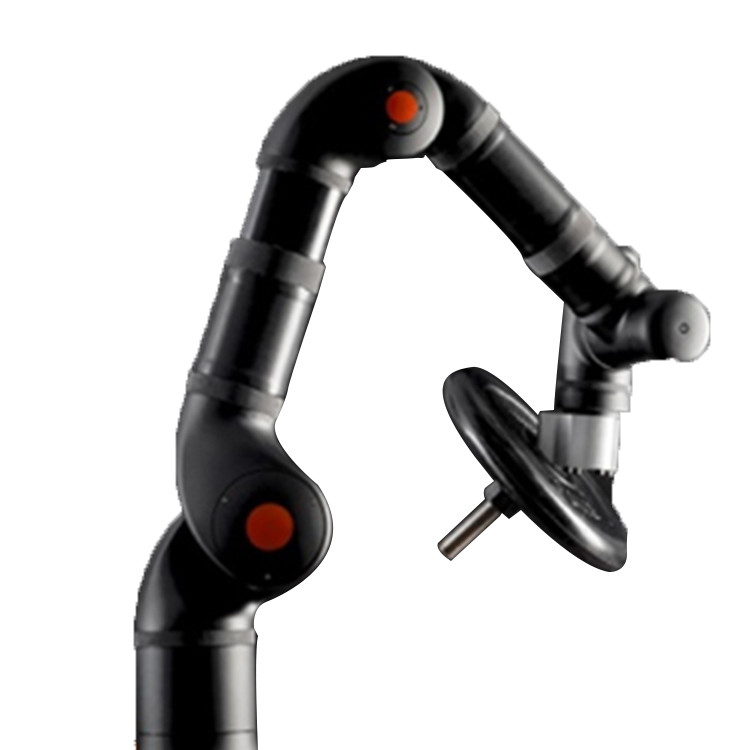

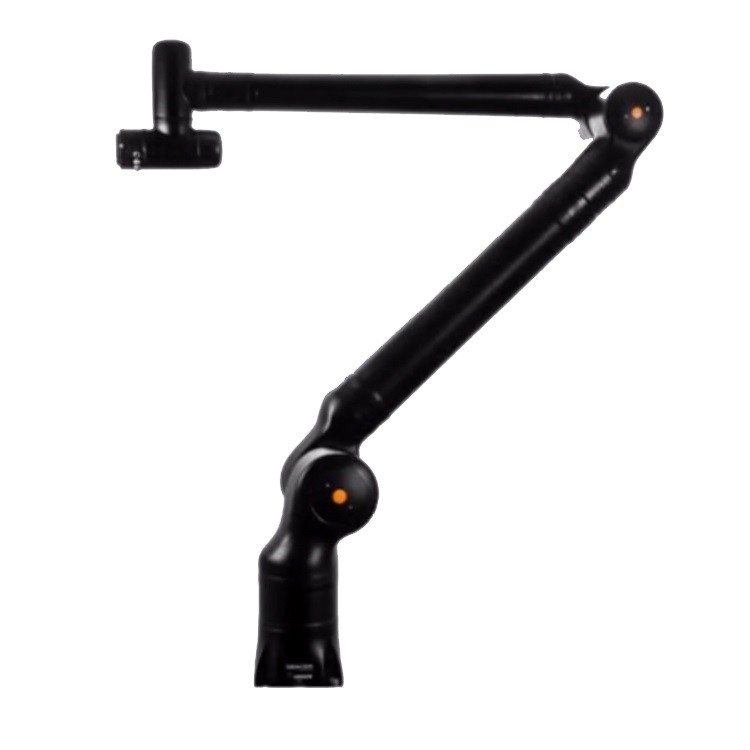

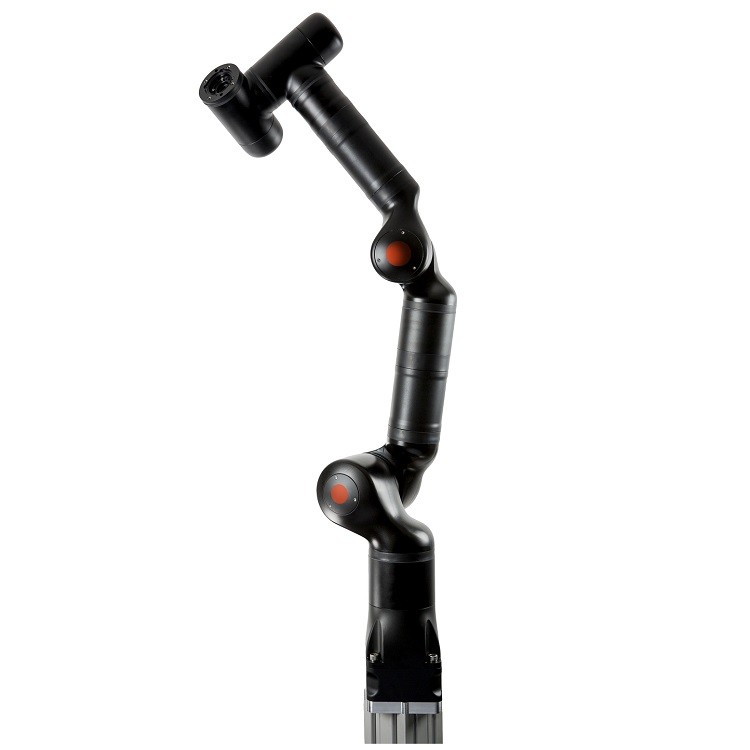

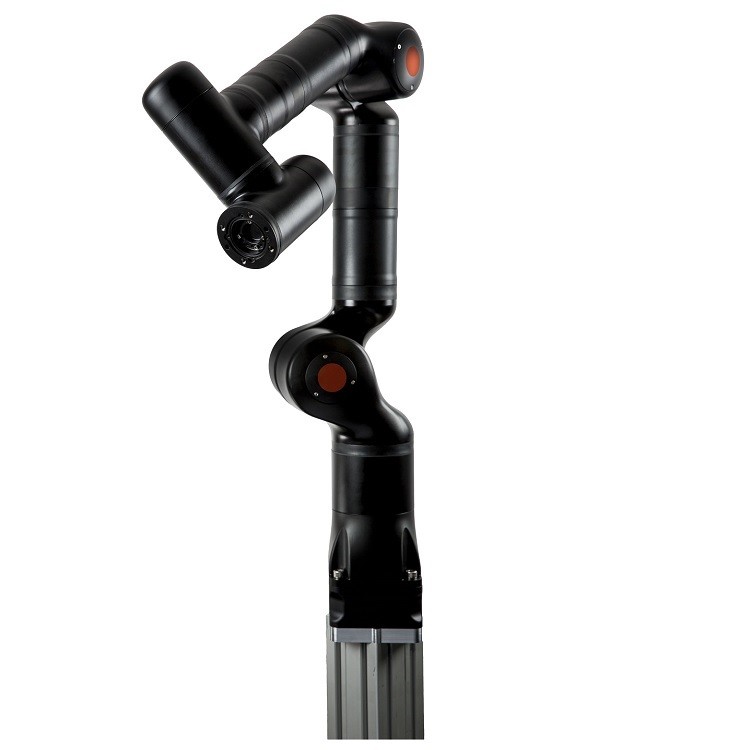

KR810 7 Axis Reach 850mm IP54 Collaborative Robot Arm

Basic Information
Place of Origin: China
Brand Name: KOSSOW
Certification: CE
Model Number: KR810
Minimum Order Quantity: 1 set
Price: USD 20000/set
Packaging Details: One 7 axis industrial robotic arm KR810 collaborative robot for kossow robot with robotiq gripper packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time: 7 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets /Month
Product Name: 7 Axis Industrial Robotic Arm KR810 Collaborative Robot For Kossow Robot With Robotiq Gripper Axis: 7
Payload: 10kg Reach: 850mm
IP Protection: IP54 Handling Capacity: 23.4kg
Repeatability: +/- 0.1mm Joint Speed: 225deg / Sec
Brakes On Joints: Yes
High Light:

IP54 Collaborative Robot Arm

,

Reach 850mm Collaborative Robot Arm

,

KR810 Collaborative Robot Arm

7 axis industrial robotic arm KR810 collaborative robot for kossow

robot with robotiq gripper



Specification





General specifications KR 810
Reach (mm) 850
Payload (kg) 10
Weight (kg) 24
Joint Speed (deg / sec) 225
Joint Ranges J2 and J4: -70°/+180°. J1, J3, J5, J6 and J7: ±360°
Brakes on joints Yes
Absolute encoders on joints Yes
Repeatability (mm) +/- 0.1
Degrees of freedom 7
Foot print (mm) 130x130
Operating temperature (C°) 0-45
Body material Anodized aluminum



Safety KR 810
Protection rating IP54
Work without shielding Yes*
Impact control Yes
150N safe force limit on tool Yes



Controller I/O KR 810
Digital outputs 24V (pcs) 8
Relay outputs (pcs) 4
Digital inputs 3-30V (pcs) 16
Analogue I/O 0-10V (pcs) 2/2
Analogue I/O 4-20mA (pcs) 2/2
