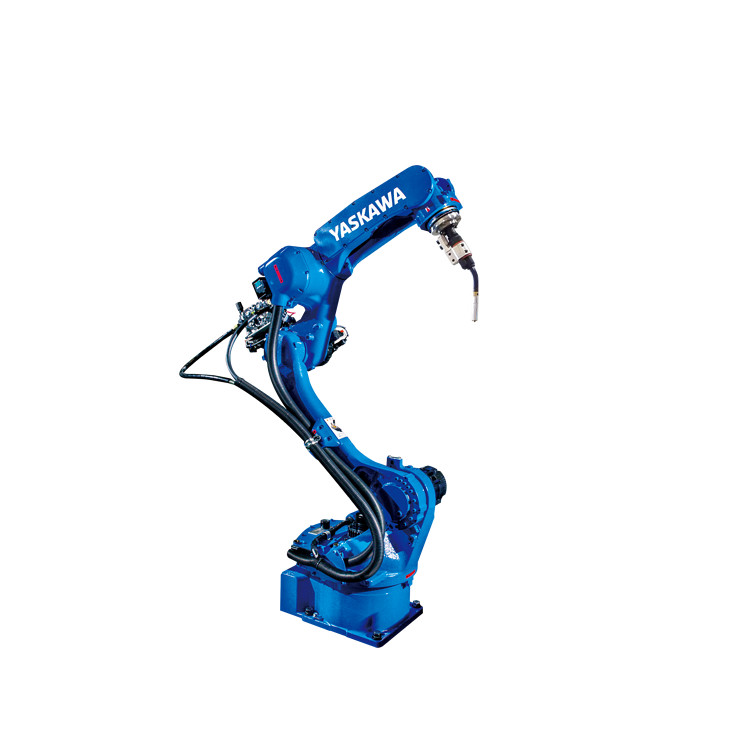

AR1440 1440mm 6 Axis Arc Welding Yaskawa Robot Arm

AR1440 1440mm 6 Axis Arc Welding Yaskawa Robot Arm

Arc Welding Yaskawa Robot Arm

6 Axis Yaskawa Robot Arm

1440mm Yaskawa Robot Arm

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
6-axis AR1440 Arc Welding Robot
Maximum Reach:
Maximum Payload:
12 Kg
Pose Repeatability:
± 0.06 Mm
Number Of Axes:
150 Kg
Protection Rating:
Product Description

AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller


Main Specifications:

Maximum reach:1440 mm
Maximum payload:12 kg
Number of axes:6
Protection rating:IP40


Key Benefits
1.Increased payload, axis speeds and wrist inertia improve throughput and quality
2.Streamlined arm design reduces interference
3.Expanded wrist range improvesapplication flexibility
4.Single robot-to-controller cableconnection enables fast setup
5.Proven torch cable reliability;backed by industry's first two-year torch cable warranty.



. Slim, fast, six-axis AR1 440 welding robot achieves unrivaled welding performance and productivity.
. Axis composite speed increased by 11 % over previous model.
· 12 kg payload supports a wide variety of motorized torches andsensors.
· Slim profile design allows close proximity placement of robots for high-density work cells.
. Contoured arm allows easy access to parts in tight spots and avoids potential interference with fixtures.
· Symmetric wrist profile, with ample range, provides equal torch access to both sides of part.
. High allowable moment and inertia ratings provide wrist rigidity and consistent weld quality.
.50mm thru-hole for torch cabling, hoses and sensor wires reducescable interference and wear.
. Minimal U-axis cable protrusion and S-axis internal cable managementprolongs cable life and maximizespart access.
. Optimized feeder mounting area on arm reduces equipment interference.
. Single power and control cable reduces wiring time and increases work efficiency.
. New robot harness designfor improved diagnostics andmaintenance.
. Home position data can be saved without battery connection for easy maintenance.
. Variety of advanced, exclusiveprogramming functions maximizeweld quality and speed.
. Floor-mounted model is standard. Wall-, tilt- or ceiling-mounted versions are available.
. Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programing.




Product Description
Product Name 6-axis AR1440 arc welding robot providing fast and accurate performance to boost productivity supplier from China
Model AR1440
Application 6 axis welding robot;welding robot China;robotic arms for weld;
Maximum reach 1440 mm
Maximum payload 12 kg
Pose repeatability (ISO 9283) ± 0.06 mm
Number of axes 6
Mounting position Floor mounted
Footprint 620 mm x 450 mm
Weight 150 kg
Protection rating IP40
Controller YRC1000
