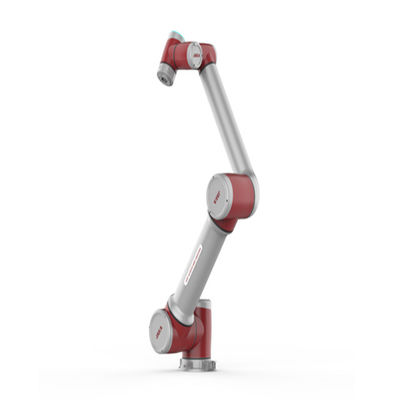

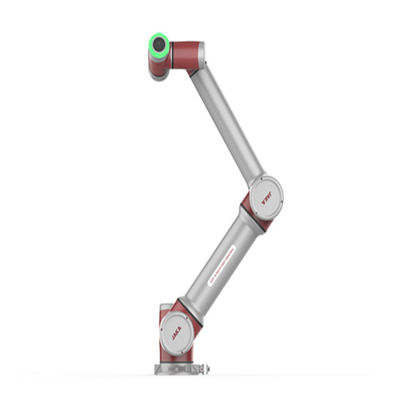

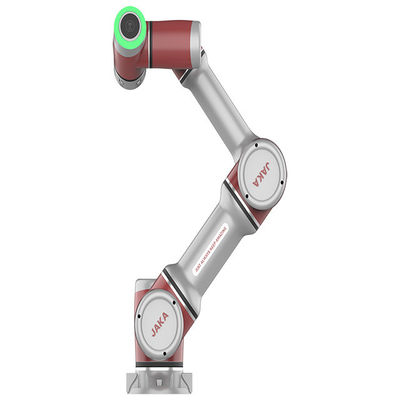

Chinese brand cobot JAKA Zu 12 with 6 axis robot arm collaborative robot with low cost
| Product Name | Chinese brand cobot JAKA Zu 12 with 6 axis robot arm collaborative robot with low cost |
| Application | 6 axis robot arm collaborative robot |
| Model | JAKA Zu 12 |
| Robot Arm | |
| Maximum reach | 1327mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | any angle |
| Lifetime | 30000h |
| Weight | 41kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 500W |
| Material | Aluminum alloy |
| Ambient temperature | 0-50°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±270° |
| A2 | -85°,+265° |
| A3 | ±175° |
| A4 | -85°,+265° |
| A5 | ±270° |
| A6 | ±270° |
| Controller | |
| Size | 410mm*307mm*235mm |
| Weight | 16Kg |
| Cable length | 6m |
| Colour | silver and red |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP44 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 6m |
| Protection rating | IP54 |
| Colour | silver and red |
