6 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing

1
MOQ

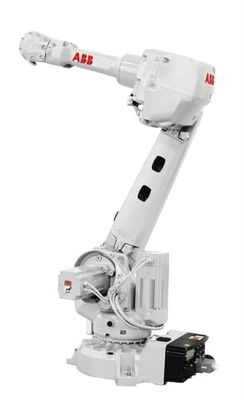

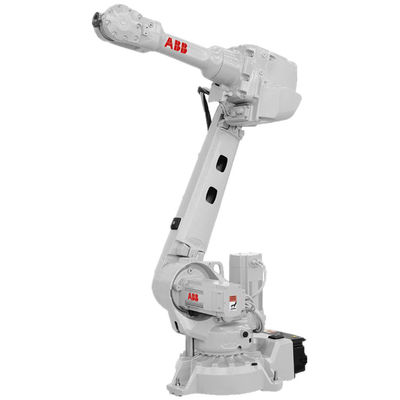

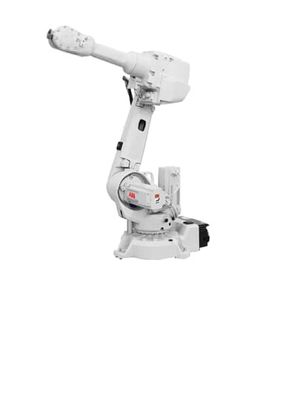

6 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing
Features Gallery Product Description Request A Quote
Features
Specifications
Robot Version: IRB 2600-12/1.65
Reach (m): 1.65
Handling Capacity (kg): 12
Wrist (Nm)Axis 4 & 5: 21.8
Number Of Axes: 6+3 External (up To 36 With MultiMove)
Protection: Standard IP67; Optional FoundryPlus 2
Controller: IRC5 Single Cabinet
Position Repeatability: 0.04mm
Highlight:

6 Axis ABB Robot Arm

,

1.65m Reach ABB Robot Arm

,

IP67 ABB Robot Arm

Basic Infomation
Place of Origin: China
Brand Name: ABB
Model Number: 2600
Payment & Shipping Terms
Packaging Details: ONE ABB large industrial total station robotic 6 axis IRB2600material handling machine packing with fumigation wooden frame, 6 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing.
Delivery Time: 60days
Product Description

6 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing



Robot version IRB 2600-12/1.65
Reach (m) 1.65
Handling capacity (kg) 12
Wrist (Nm)Axis 4 & 5 21.8
Number of axes 6+3 external (up to 36 with MultiMove)
Protection Standard IP67; optional FoundryPlus 2
Controller IRC5 Single Cabinet
Position repeatability 0.04mm
Path repeatability 0.14mm
Supply voltage 200-600 V, 50/60 Hz
Energy consumption 3.4 kW
Robot base 676x511mm
Robot height 1382 mm
Robot weight 272 kg
During operation +5°C (41°F) up to +50°C (122°F)
During transportation and storage –25°C (13°F) up to +55°C (131°F)
During short periods (max. 24 h) up to +70°C (158°F)
Relative humidity Max. 95%
Noise level Max. 69 dB (A)
Safety Double circuits with supervision, emergency stops and safety func tions, 3-positions enable device.
Emission EMC/EMI-shielded
Options Foundry Plus 2
Axis 1 rotation +180° to -180°175°/s
Axis 2 arm +155° to -95°175°/s
Axis 3 arm +75° to -180°175°/s
Axis 4 rotation +400° to -400°Max. rev: +251 to -251 360°/s
Axis 5 band +120° to -120°360°/s
Axis 6 turn +400° to -400°Max. rev: + 274 to - 274 500°/s



6 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing 06 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing 16 arm axis robot of ABB IRB2600 industrial robots that the best accuracy in its class for welding and material handing 2
