| Place of Origin: | China |
|---|---|
| Brand Name: | Fisher |
| Model Number: | EZ |
| Minimum Order Quantity: | 1 |
| Packaging Details: | One Differential pressure transmitter with metal sensor for measurement PMD75 E+H instrument packed with one fumigation wooden box |
| Delivery Time: | 60days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 |
| Certifications: | SIL Capable, Fugitive Emission, NACE | Critical Service: | Noise Abatement |
|---|---|---|---|
| Flow Characteristics: | Equal Percentage | Material: | Carbon Steel |
| Operating Temperature: | Standard Temperature | Pressure Class: | PN, ASME |
| Process Connection Type: | Flanged | Shutoff Class: | Class IV (FCI 70-2) |
| Valve Size: | NPS 1/2 | Valve Size Standard: | NPS |
| High Light: | ASME Carbon Steel Control Valve,NPS 1/2 Steel Control Valve,NPS Flanged Control Valve |
||

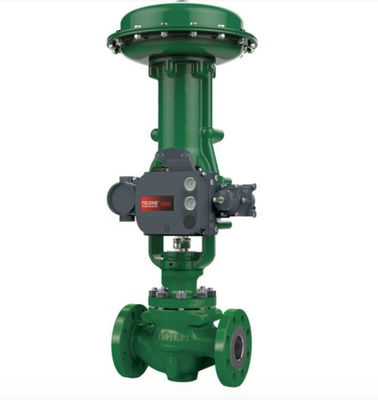

Fisher easy e EZ Control Valve in chemical or hydrocarbon processing applications and material in Carbon Steel, Stainless
Features
Post-guiding provides valve plug stability with less chance of a sticking valve plug due to non-lubricating or sticky process fluids or build-up of entrained solids. A flow-straightening, vaned seat ring is available in full port and first reduction port sizes. It offers excellent open- and closed-loop performance and may be used as a direct replacement for the non-vaned seat ring. Complies with the Clean Air Act with ENVIRO-SEAL™ packing systems. The process fluid flows through the trim, flushing away solid deposits above and below the guide bushing, thus reducing the possibility of a sticking valve plug. Quick-change trim, with a clamped-in seat ring, reduces the disassembly time. Low-flow requirements can be satisfied with standard restricted-capacity trim or with Micro-Form, Micro-Flute, or Micro-Flow valve plugs. Streamlined flow passages provide greater capacities than most globe valves of the same line size.
| Certifications | SIL capable, Fugitive Emission, NACE |
| Critical Service | Noise Abatement, Dirty Service, Steam Condition, Erosive, Low Flow, Corrosive, General Service, Outgassing, Flashing |
| Flow Characteristics | Equal percentage, Linear, Special Characterization, Quick Opening |
| Material | Carbon Steel, Stainless, Duplex, Alloy |
| Operating Temperature | Standard Temperature |
| Pressure Class | PN, ASME |
| Process Connection Type | Flanged, Butt Weld, RTJ, Threaded, Socket Weld |
| Shutoff Class | Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2) |
| Valve Size | NPS 1/2, NPS 3/4, NPS1, NPS 1-1/2, NPS 2, NPS 3, NPS 4 |
| Valve Size Standard | NPS, DN |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
