| Place of Origin: | China |
|---|---|
| Brand Name: | ABB |
| Model Number: | IRB2400 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | ABB IRB2400 industrial robot with robotic 6 axis arm and Maximum payload12 kg for welding as mig welding robot packing with fumigation wooden frame, |
| Delivery Time: | 60days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 |
| Production Name: | ABB IRB 2400 Robotic Arm | Model: | IRB 2400-12/1.55 |
|---|---|---|---|
| Application: | Grinding And Polishing Robot Arm | Maximum Reach: | 1550 Mm |
| Maximum Payload: | 12kg | Pose Repeatability (ISO 9283): | ± 0.03 Mm |
| Number Of Axes: | 6 | Mounting Position: | Floor Mounted And Inverted Mounted |
| Footprint: | 723mm X 660mm | ||
| High Light: | IRB2400 ABB Robot Arm,Payload 12Kg ABB Robot Arm,6 Axis ABB Robot Arm |
||

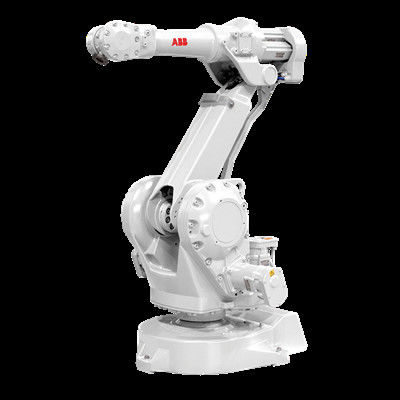

ABB IRB2400 industrial robot with robotic 6 axis arm and Maximum payload12 kg for welding as mig welding robot
| Production Name | ABB IRB 2400 Robotic arm |
| Model | IRB 2400-12/1.55 |
| Application | grinding and polishing robot arm |
| Maximum reach | 1550 mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 723mm x 660mm |
| Weight | 380 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet |

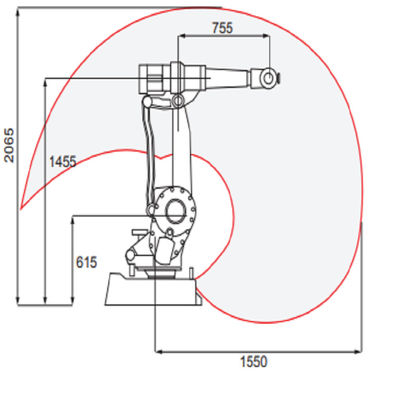

| Motion range | |
| A1 | + 180° to - 180° |
| A2 | + 110° to - 100° |
| A3 | + 65° to - 60° |
| A4 | + 200° to - 200° Optional: Unlimited |
| A5 | + 120° to - 120° |
| A6 | + 400° to - 400° Max. rev: +250° to -250° |
