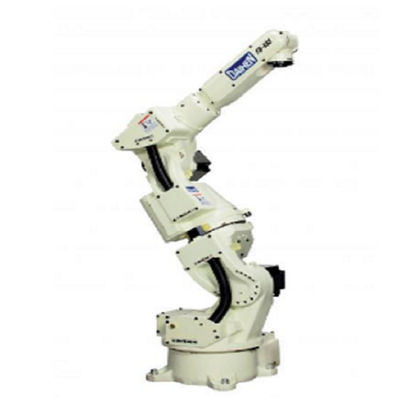

mig mag welding machine OTC FD-V6S 7axis cnc welding robot arm and Industrial Robot suitable for arc-welding packing wit

Basic Information
Place of Origin: China
Brand Name: OTC
Model Number: FD-V6S
Minimum Order Quantity: 1
Packaging Details: mig mag welding machine OTC FD-V6S 7axis cnc welding robot arm and Industrial Robot suitable for arc-welding packing with fumigation wooden frame,
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 99
Specification: Value Number Of Axes: 7
Maximum Payload Capacity: 6 Kg Positional Repeatability: +/- 0.08 Mm (Note 1)
Horizontal Reach: 1427mm Vertical Reach: 2424mm
Drive Capacity: 3600W
High Light:

Mig Mag Welding Machine

,

OTC Arc Welding Robot

,

7 Axis OTC Welding Robot

mig mag welding machine OTC FD-V6S 7axis cnc welding robot arm and Industrial Robot suitable for arc-welding packing with fumigation wooden frame



Specification Value
Number of Axes 7
Maximum Payload Capacity 6 kg
Positional Repeatability +/- 0.08 mm (Note 1)

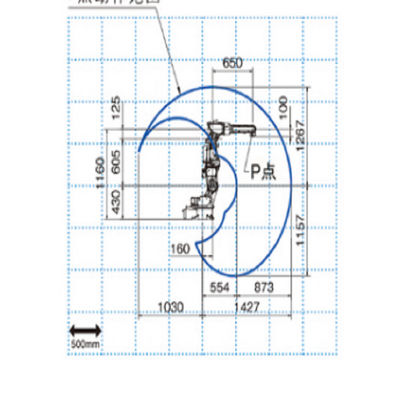

Horizontal Reach 1427mm
Vertical Reach 2424mm
Drive Capacity 3600W

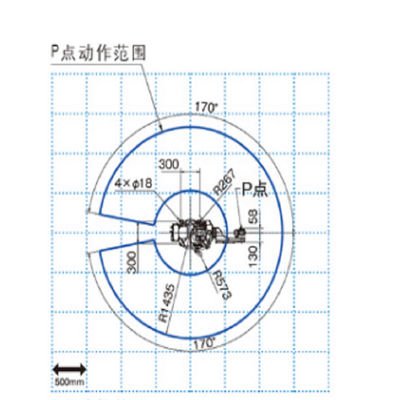

Working Range, Arm, J1 (Rotation) +/- 170°
Working Range, Arm, J2 (Lower Arm) -145°~ +70°
Working Range, Arm, J3 (Upper Arm) -170°~ +149°
Working Range, Wrist, J4 (Swing) +/- 180°
Working Range, Wrist, J5 (Bending) -50°~ +230° (Note 2)
Working Range, Wrist, J6 (Twist) +/- 360° (Note 2)
Maximum Velocity, Arm, J1 (Rotation) 3.66 rad/s {210°/s}
Maximum Velocity, Arm, J2 (Lower Arm) 3.66 rad/s {210°/s}
Maximum Velocity, Arm, J3 (Upper Arm) 3.66 rad/s {210°/s}
Maximum Velocity, Wrist, J4 (Swing) 7.33 rad/s {420°/s}
Maximum Velocity, Wrist, J5 (Bending) 7.33 rad/s {420°/s}
Maximum Velocity, Wrist, J6 (Twist) 10.82 rad/s {620°/s}
Wrist Load, Allowable Moment, J4 (Swing) 11.8 N*m
Wrist Load, Allowable Moment, J5 (Bending) 9.8 N*m
Wrist Load, Allowable Moment, J6 (Twist) 5.9 N*m
Wrist Load, Allowable Moment of Inertia, J4 (Swing) 0.30 kg*m^2
Wrist Load, Allowable Moment of Inertia, J5 (Bending) 0.25 kg *m^2
Wrist Load, Allowable Moment of Inertia, J6 (Twist) 0.06 kg *m^2
Arm operation cross-sectional area 2.58 m^2 x 340°
Environmental Conditions 0 ~ 45°C, 20 ~ 80 %RH (No condensation)
Mass 178 kg
Upper arm payload capacity 10 kg (Note 3)
Installation type Floor type
Paint color White (Munsell 10GY9/1)mig mag welding machine OTC FD-V6S 7axis cnc welding robot arm and Industrial Robot suitable for arc-welding packing wit 0mig mag welding machine OTC FD-V6S 7axis cnc welding robot arm and Industrial Robot suitable for arc-welding packing wit 1mig mag welding machine OTC FD-V6S 7axis cnc welding robot arm and Industrial Robot suitable for arc-welding packing wit 2
