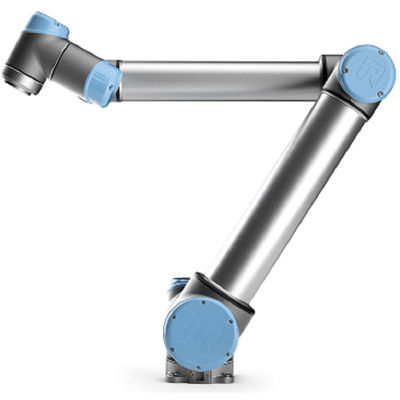

Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot

Basic Information
Place of Origin: China
Brand Name: UR
Model Number: UR3
Minimum Order Quantity: 1
Packaging Details: ONE ABB large industrial total station robotic 6 axis IRB6700 material handling machine packing with fumigation wooden frame, ,
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 99
Weight: 11 Kg Loading: 3 Kg
Running Range: 500 Mm Reiterate Range: +/- 0.1 Mm
Bottom Width: 118 Mm Free Roll Degree: 6 Units Round Joints
High Light:

3kg Playload Collaborative Robot Arm

,

550m Reach Collaborative Robot Arm

,

Articular Type Robot Arm

Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot



UR3 Specification
UR 3 Running Area 500 mm 6 axis Articular Type Robot Arm
Weight 11 kg
Loading 3 kg
Running range 500 mm
Articular Range +/- 360°
No limits of Last Articular rounding
Speed All wrist joint ; 360 degree/second
other Joint : 180 degree/second
Tool : Normal 1 m/sec. 39.4 inches/sec
Tool Normal 1 m/sec. 39.4 inch/sec.
Reiterate Range +/- 0.1 mm
Bottom width Ø118 mm
Free roll degree 6 units round joints

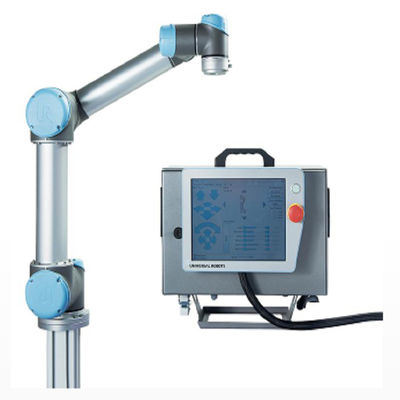

Control Box Size(WxHxD) 475 mm x 423 mm x 268 mm
I/O ports   Con.Box Tool Conect
Digital In 16 2
Digital Out 16 2
Analog In 2 2
Analog out 2 -
I/O Power Suppling Control Box 24 V 2A &, Tool 12 V/24 V 600 mA
Communication TCP/IP 100 Mbit: IEEE 802.3u, 100BASE-TX
Socket & Mod bus TCP
Programming Consumer familier 12 inch touch screen Poly scope
Grapic User Interface(GUI) Installation
Noise Comparatively non noise
IP class IP64
Power Usage Around 100W in case of general program usage
Co work 15 kinds progressed controlable safety function
Materials Alumimun , PP Plastic
Temperature Operating from cetigrade 0 degree to 50
Power 100-240 VAC, 50-60 Hz
Power Line 6m between Robot and Control box
4.5m between Touch screen and Control Box



Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot 0Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot 1Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot 2Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot 3Collaborative robot UR3 with 6 axis and maxmium reach 550m and playload 3kg for mig welding robot 4
