Pilot Integrally Mounted NPT Pressure Reducing Regulator

Pilot Integrally Mounted NPT Pressure Reducing Regulator

NPT Pressure Reducing Regulator

Pilot Integrally Mounted Valve Positioner

Casing Pressure Reducing Regulator

Place of Origin:

China

Brand Name:

Fisher

Model Number:

299H

Contact Us

Request A Quote
Product Details
Body Sizes And End Connection:
Sizes:NPS 2 / DN 50
Styles:
Connections: NPT,
Maximum Operating Inlet Pressure:
1/4 X 3/8 In. / 6.4 X 9.5 Mm :
Maximum Outlet Pressure:
66 Psig / 4.5 Bar
Minimum Differential Pressure:
1.5 Psid / 0.10 Bar D
Outlet Pressure Ranges:
3.5-inches In Nine Ranges
Approximate Weight:
21 Lbs / 10 Kg
Product Description

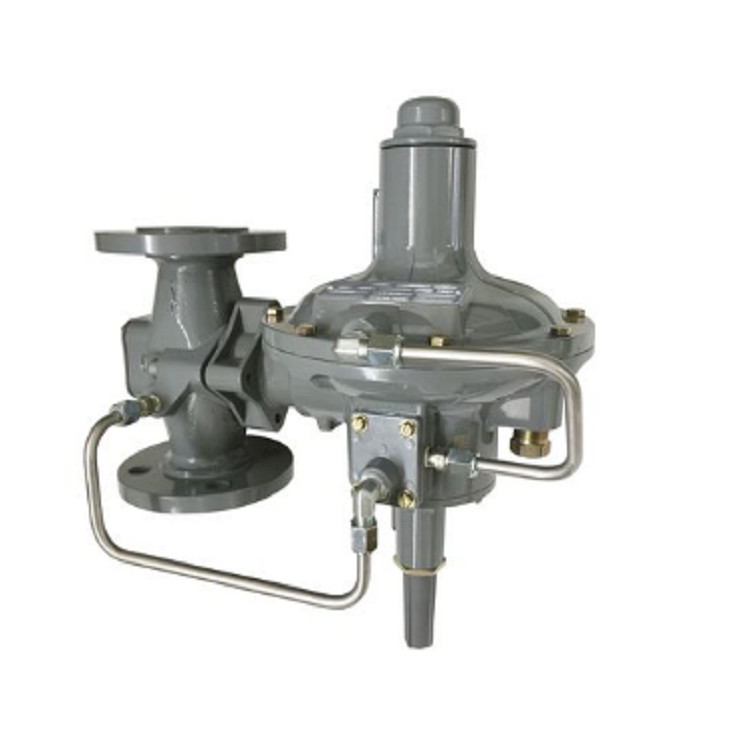

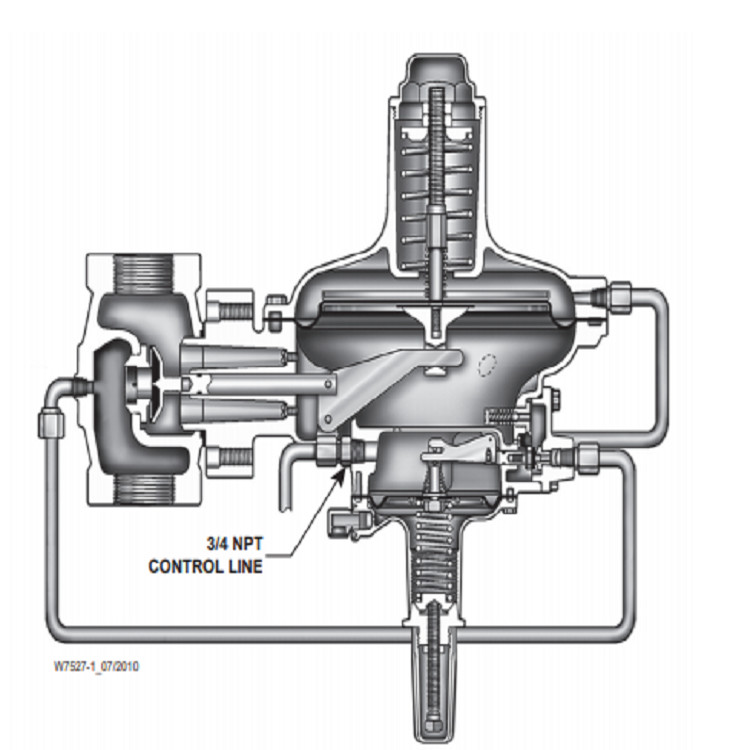

299H pressure reducing regulator of with a pilot integrally mounted to the actuator casing as fisher valve for valve



Specifications for 299H Series constructions are given below. Some specifications for a given regulator as it originally

comes from the factory are stamped on a nameplate located on the actuator upper casing.
Body Sizes and End Connection Sizes: NPS 1-1/4, NPS 1-1/2, NPS 2 / DN 50
Styles Connections: NPT, CL125 FF Flanged, CL250 RF flanged, PN 10/16 flanged
Maximum Operating Inlet Pressure 1/4 x 3/8 in. / 6.4 x 9.5 mm : 175 psig / 12.1 bar
  3/8 in. / 9.5 mm : 175 psig / 12.1 bar
Maximum Outlet (Casing) Pressure 66 psig / 4.5 bar
Minimum Differential Pressure for Full Stroke 1.5 psid / 0.10 bar d
Outlet Pressure Ranges 3.5-inches w.c. to 60 psig / 9 mbar to 4.14 bar in nine ranges
Pressure Registration Internal, External, or Dual Registration
Approximate Weight 21 lbs / 10 kgPilot Integrally Mounted NPT Pressure Reducing Regulator 0Pilot Integrally Mounted NPT Pressure Reducing Regulator 1Pilot Integrally Mounted NPT Pressure Reducing Regulator 2
