KUKA small industrial robot KR 3 AGILUS top performance 6 axis material handling robot

Basic Information
Place of Origin: CHINA
Brand Name: KUKA
Certification: CE CO
Model Number: KR 3 AGILUS
Minimum Order Quantity: one set
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Maximum Reach: 541mm Application: Material Handing Robot Arm
Model: KR 3 AGILUS Protection Rating: IP40
Controller: KR C4 Compact Weight: Approx. 26.5 Kg
Footprint: 179 Mm X 179 Mm Mounting Position: Floor; Ceiling; Wall
Number Of Axes: 6 Pose Repeatability (ISO 9283): ± 0.02 Mm
Maximum Payload: 3kg
High Light:

Material Handling Kuka Robot Arm

,

6 Axis Kuka Robot Arm

,

541mm Reach Kuka Robot Arm



KUKA small industrial robot KR 3 AGILUS top performance 6 axis material handling robot





Product Description
Production Name KR 3 AGILUS industrial robot arm
Model KR 3 AGILUS
Application material handing robot arm
Maximum reach 541 mm
Maximum payload 3kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor; Ceiling; Wall
Footprint 179 mm x 179 mm
Weight approx. 26.5 kg
Protection rating IP40
Controller KR C4 compact

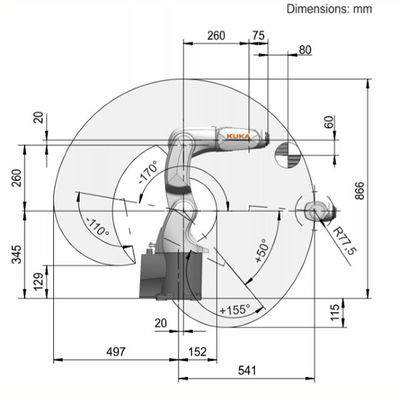

Motion range
A1 ±170 °
A2 -170 ° / 50 °
A3 -110 ° / 155 °
A4 ±175 °
A5 ±120 °
A6 ±350 °

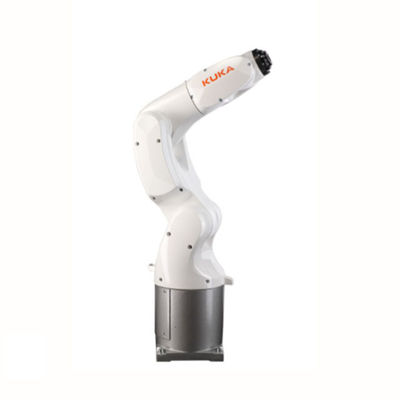

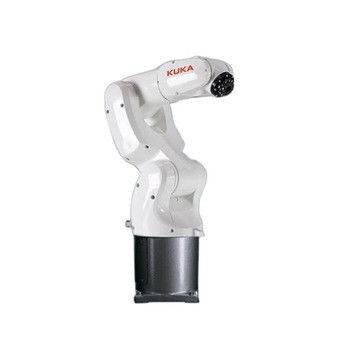

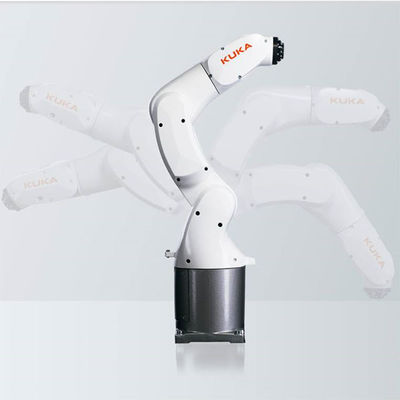

Detailed Images

 KUKA small industrial robot  KR 3 AGILUS  top performance  6 axis  material  handling robot  KUKA small industrial robot  KR 3 AGILUS  top performance  6 axis  material  handling robot  KUKA small industrial robot  KR 3 AGILUS  top performance  6 axis  material  handling robot  KUKA small industrial robot  KR 3 AGILUS  top performance  6 axis  material  handling robot







 KUKA small industrial robot KR 3 AGILUS top performance 6 axis material handling robot
