Compact flexible robot electronics industrial application KUKA KR 4 AGILUS mini industrial robot

Basic Information
Place of Origin: CHINA
Brand Name: KUKA
Certification: CE CO
Model Number: KR 4 600
Minimum Order Quantity: one set
Price: 99999usd/set
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Maximum Reach: 601 Mm Application: Material Handing Robot Arm
Model: KR 4 600 Protection Rating: IP40
Controller: KR C5 Micro Weight: Approx. 27 Kg
Footprint: 179 Mm X 179 Mm Mounting Position: Floor; Ceiling; Wall; Desired Angle
Number Of Axes: 6 Pose Repeatability (ISO 9283): ± 0.015mm
Maximum Payload: 4.63kg
High Light:

Compact Flexible Kuka Robot Arm

,

Electronics Kuka Robot Arm

,

IP40 Kuka Robot Arm





Compact flexible robot electronics industrial application KUKA KR 4 AGILUS mini industrial robot









Product Description
Production Name KR 4 AGILUS industrial robot arm
Model KR 4 600
Application electronics robot arm
Maximum reach 601 mm
Maximum payload 4.63kg
Pose repeatability (ISO 9283) ± 0.015 mm
Number of axes 6
Mounting position Floor; Ceiling; Wall; Desired angle
Footprint 179 mm x 179 mm
Weight approx. 27 kg
Protection rating IP40
Controller KR C5 micro

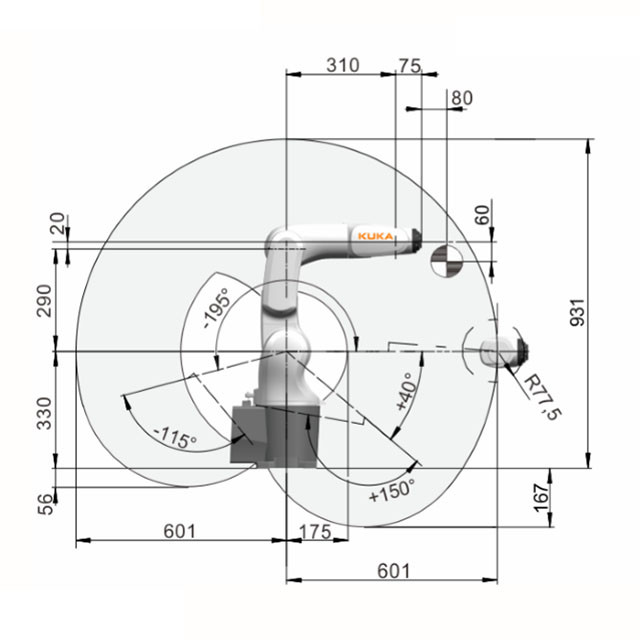

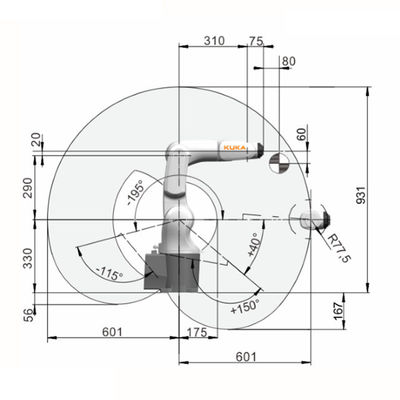

Motion range
A1 ±170 °
A2 -195 ° / 40 °
A3 -115 ° / 150 °
A4 ±185 °
A5 ±120 °
A6 ±350 °

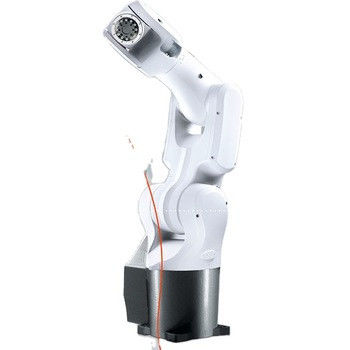

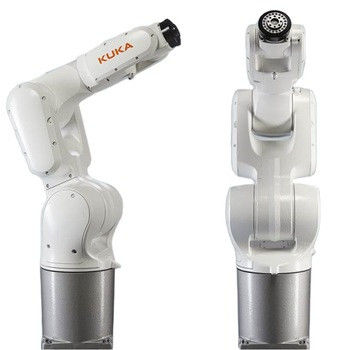

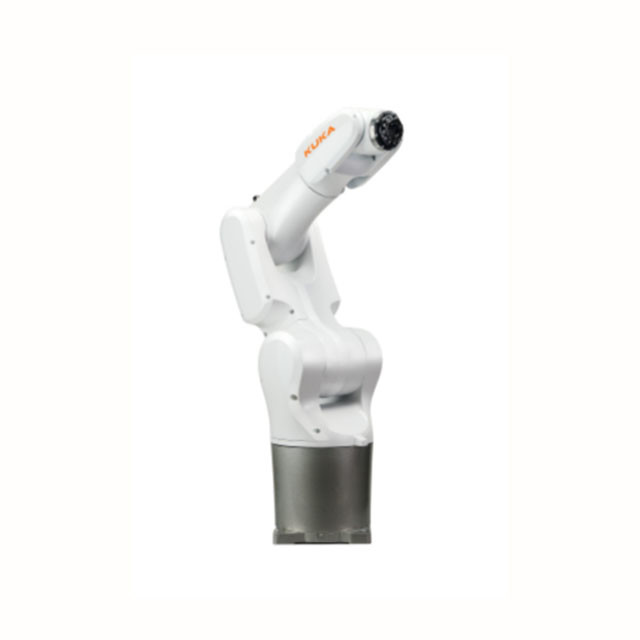

Detailed Images

Compact flexible robot  electronics industrial application KUKA KR 4  AGILUS  mini  industrial robot Compact flexible robot  electronics industrial application KUKA KR 4  AGILUS  mini  industrial robot Compact flexible robot  electronics industrial application KUKA KR 4  AGILUS  mini  industrial robot Compact flexible robot  electronics industrial application KUKA KR 4  AGILUS  mini  industrial robot Compact flexible robot  electronics industrial application KUKA KR 4  AGILUS  mini  industrial robot







 Compact flexible robot  electronics industrial application KUKA KR 4  AGILUS  mini  industrial robot
