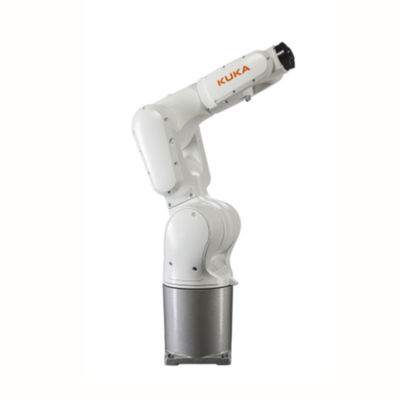

KR 6 R700-2 Clean Room Automation Kuka Robot Arm

Basic Information
Place of Origin: Chinese
Brand Name: KUKA
Certification: CE CO
Model Number: KR 6 R700-2
Minimum Order Quantity: one set
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Protection Rating: IP65 / IP67 Model: KR 6 R 700-2
Maximum Reach: 726 Mm Maximum Payload: 6.8 Kg
Pose Repeatabilit: ± 0.02mm Number Of Axes: 6
Weight: Approx. 53 Kg Controller: KR C4 Compact
High Light:

Automation Kuka Robot Arm

,

Clean Room Kuka Robot Arm

,

6.8kg Payload Kuka Robot Arm







KUKA Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis

Main Specifications

Model: KR 6 R 700-2
Maximum reach: 726 mm
Maximum payload:6.8 kg
Pose repeatabilit: ± 0.02mm
Number of axes :6
Weight: approx. 53 kg
Protection rating: IP65 / IP67



KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis



Product Description
Production Name KR 6 R 700-2 industrial robot arm
Model KR 6 R 700-2
Application electronic robot arm
Maximum reach 726 mm
Maximum payload 6.8 kg
Pose repeatability (ISO 9283) ± 0.02 mm
Number of axes 6
Mounting position Floor; Ceiling; Wall; Desired angle
Footprint 208 mm x 208 mm
Weight approx. 53 kg
Protection rating IP65 / IP67
Controller KR C4 compact

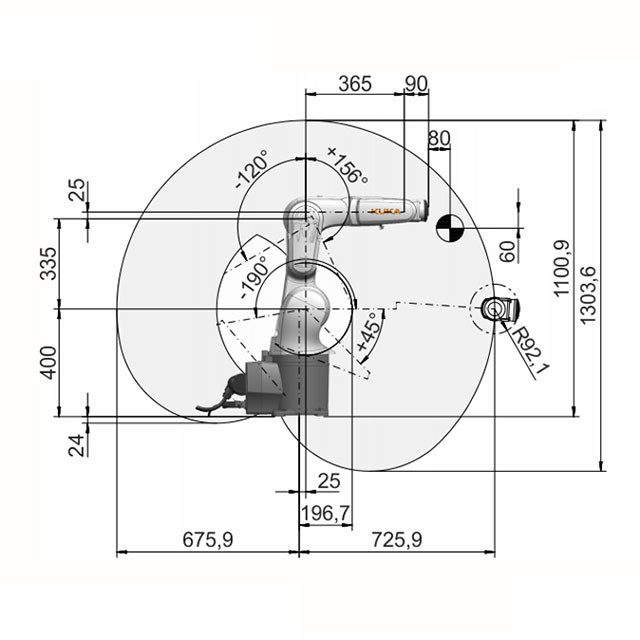

Motion range
A1 ±170 °
A2 -190 ° / 45 °
A3 -120 ° / 156 °
A4 ±185 °
A5 ±120 °
A6 ±350 °
Detailed Images



KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis

KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis

KUKA  Clean room automation solution KR 6 R700-2 industrial robot arm with 6 axis
