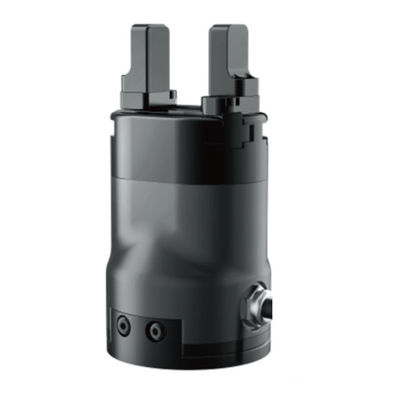

Chinese brand robotic grippers DH-ROBOTICS PGC-50 Collaborative parallel grippers

Basic Information
Place of Origin: Chinese
Brand Name: DH-ROBOTICS
Certification: CE CO
Model Number: PGC-50
Minimum Order Quantity: one set
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Max Payload: 0.5 Kg Stroke (adjustable): 35 Mm
Ingress Protection Rating: IP 54 Grip Force (adjustable): 15~50 N
Gripper Mass: 0.5 Kg Position Resolution (fingertip): ± 0.03mm
Nominal Supply Voltage: 24VDC±10% Full-stroke Closing Time: 0.7 S
Communication Protocol: TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT
High Light:

Robotic Collaborative Parallel Grippers

,

IP54 Collaborative Parallel Grippers

,

RS485 Collaborative Parallel Grippers



Chinese brand robotic grippers DH-ROBOTICS PGC-50 Collaborative parallel grippers

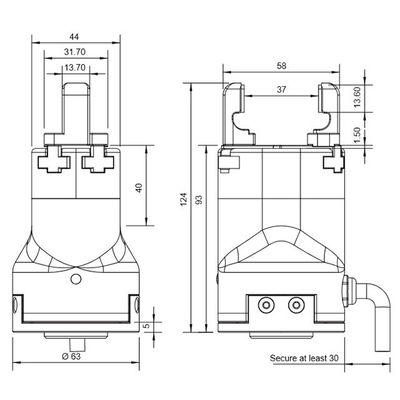

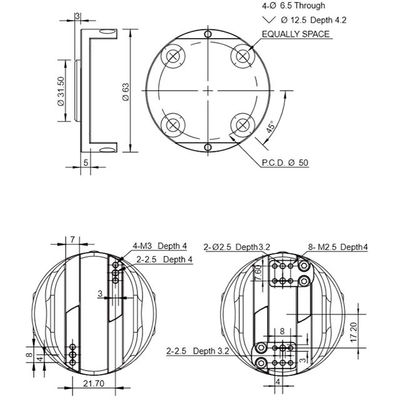

Detailed Images
Production Name Chinese brand robotic grippers DH-ROBOTICS PGC-50 Collaborative parallel grippers
Model PGC-50 robotic clamp device
Application robotic clamp device
Stroke (adjustable) 35 mm
Max payload 0.5 kg
Ingress protection rating IP 54
Grip force (adjustable) 15~50 N
Gripper mass 0.5 kg
Position resolution (fingertip) ± 0.03mm
Nominal supply voltage 24VDC±10%
Full-stroke closing time 0.7 S
Communication protocol TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT

Chinese brand  robotic grippers DH-ROBOTICS  PGC-50  Collaborative parallel grippersChinese brand  robotic grippers DH-ROBOTICS  PGC-50  Collaborative parallel grippersChinese brand  robotic grippers DH-ROBOTICS  PGC-50  Collaborative parallel grippersChinese brand  robotic grippers DH-ROBOTICS  PGC-50  Collaborative parallel grippers





Chinese brand  robotic grippers DH-ROBOTICS  PGC-50  Collaborative parallel grippers
