DH-ROBOTICS gripping froce 300N PGC-300 combined with 6 axis robot arm for material handling

one set
MOQ
DH-ROBOTICS gripping froce 300N PGC-300 combined with 6 axis robot arm for material handling
Features Gallery Product Description Request A Quote
Features
Specifications
Stroke (adjustable): 75mm
Position Resolution (fingertip): ± 0.03mm
Gripper Mass: 1.6 Kg
Grip Force (adjustable): 40~300 N
Friction Grip Payload: 6 Kg
Nominal Supply Voltage: 24VDC±10%
Full-stroke Closing Time: 0.8 S
Communication Protocol: TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT
Highlight:

300N Robotic Grippers

,

75mm Stroke Robotic Grippers

,

6 Axis Robotic Grippers

Basic Infomation
Place of Origin: Chinese
Brand Name: DH-ROBOTICS
Certification: CE CO
Model Number: PGC-300
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Product Description



DH-ROBOTICS gripping froce 300N PGC-300 combined with 6 axis robot arm for material handling

DH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handling

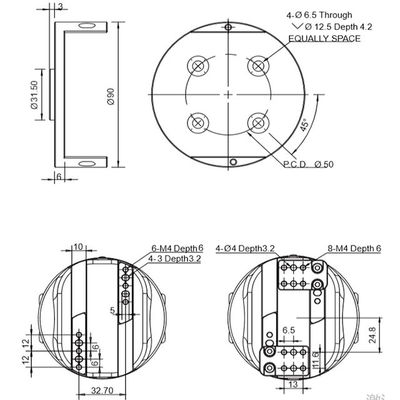

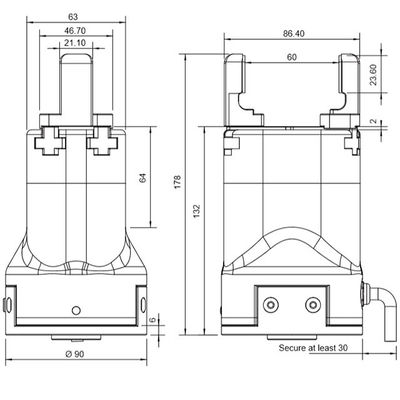

Detailed Images
Production Name DH-ROBOTICS gripping froce 300N PGC-300 combined with 6 axis robot arm for material handling
Model PGC-300 robotic clamp device
Application robotic clamp device
Stroke (adjustable) 75 mm
Max payload 6 kg
Ingress protection rating IP 67
Grip force (adjustable) 40~300 N
Gripper mass 1.6kg
Position resolution (fingertip) ± 0.03mm
Nominal supply voltage 24VDC±10%
Full-stroke closing time 0.8 S
Communication protocol TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT







DH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handlingDH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handling

DH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handlingDH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handlingDH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handling

DH-ROBOTICS  gripping froce 300N  PGC-300 combined with 6 axis robot arm for material handling
