famous Chinese brand robotic gripper DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm

Basic Information
Place of Origin: Chinese
Brand Name: DH-ROBOTICS
Certification: CE CO
Model Number: PGE-5
Minimum Order Quantity: one set
Price: 3800usd/set
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Stroke (adjustable): 0-26 Mm Position Resolution (fingertip): ± 0.02mm
Gripper Mass: 0.4 Kg Grip Force (adjustable): 0.8-5 N
Maximum Payload: 0.1 Kg Nominal Supply Voltage: 24VDC±10%
Full-stroke Closing Time: 0.2 S Communication Protocol: TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT
Ingress Protection Rating: IP 40
High Light:

Machine Tending Robotic Gripper

,

24VDC Collaborative Robotic Gripper

,

26mm Stroke Robotic Gripper

famous Chinese brand robotic gripper DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm







Product Description
Production Name famous Chinese brand robotic gripper DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm
Model PGE-5 robotic grib hand
Application robotic clamping device
Stroke (adjustable) 0-26mm
Maximum payload 0.1 kg
Ingress protection rating IP 40
Grip force (adjustable) 0.8-5 N
Gripper mass 0.4 kg
Position resolution (fingertip) ±0.02 mm
Nominal supply voltage 24VDC±10%
Full-stroke closing time 0.2 S
Communication protocol TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT

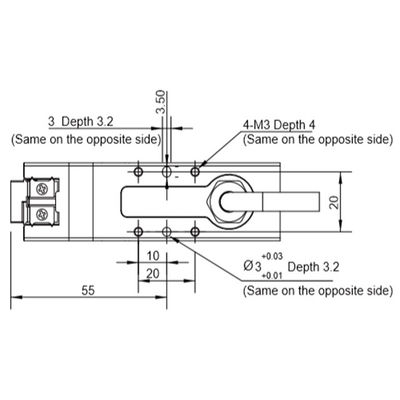

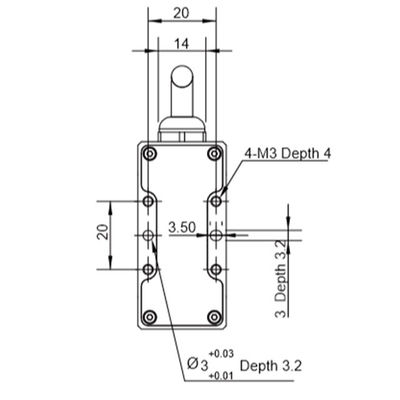

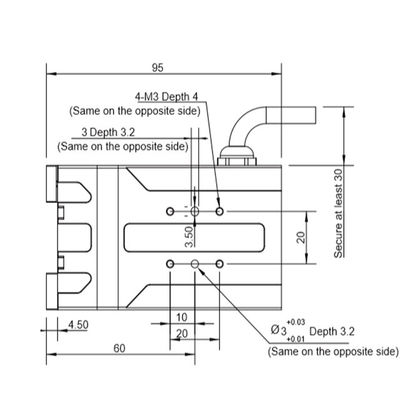

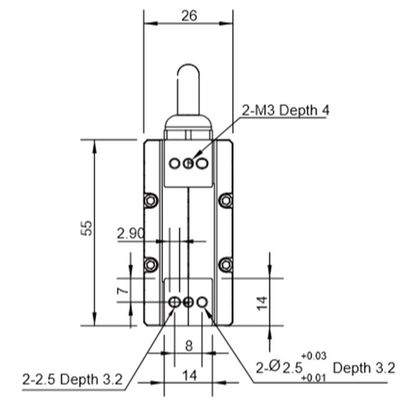

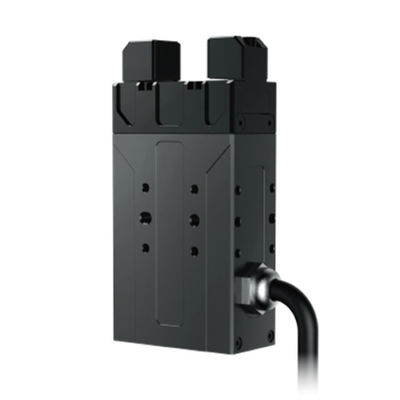

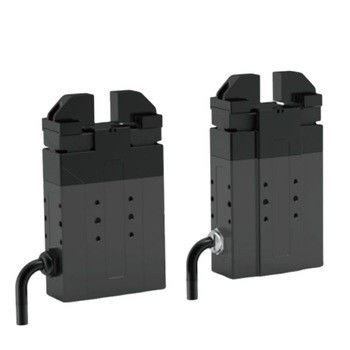

Detailed Images

famous Chinese brand robotic gripper  DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm famous Chinese brand robotic gripper  DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm famous Chinese brand robotic gripper  DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm famous Chinese brand robotic gripper  DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm famous Chinese brand robotic gripper  DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm famous Chinese brand robotic gripper  DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm
