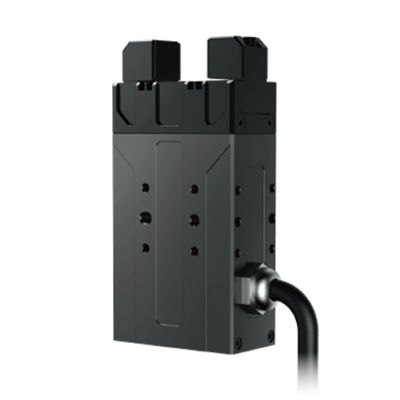

famous Chinese brand robotic gripper DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm

Basic Information
Place of Origin: Chinese
Brand Name: DH-ROBOTICS
Certification: CE CO
Model Number: PGE-8
Minimum Order Quantity: one set
Packaging Details: cartons
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 sets /month
Stroke (adjustable): 0-14mm Position Resolution (fingertip): ± 0.02mm
Gripper Mass: 0.4 Kg Grip Force (adjustable): 2-8 N
Friction Grip Payload: 0.1 Kg Nominal Supply Voltage: 24VDC±10%
Full-stroke Closing Time: 0.2 S Communication Protocol: Modbus RTU (RS485), I/O
High Light:

14mm Stroke Robot Clamping Device

,

RS485 Robot Clamping Device

,

IP40 Robot Clamping Device

famous Chinese brand robotic gripper DH-ROBOTICS PGE-5 for Machine Tending 6 axis robot arm





Product Description
Production Name Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device
Model PGE-8 robotic grib hand
Application robotic clamping device
Stroke (adjustable) 0-14 mm
Maximum payload 0.1 kg
Ingress protection rating IP 40
Grip force (adjustable) 2-8 N
Gripper mass 0.4 kg
Position resolution (fingertip) ±0.02 mm
Nominal supply voltage 24VDC±10%
Full-stroke closing time 0.2 S
Communication protocol Modbus RTU (RS 485), I/O



Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device

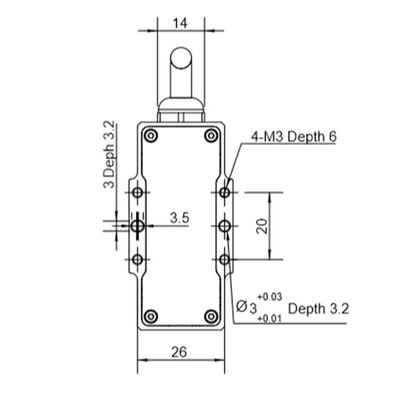

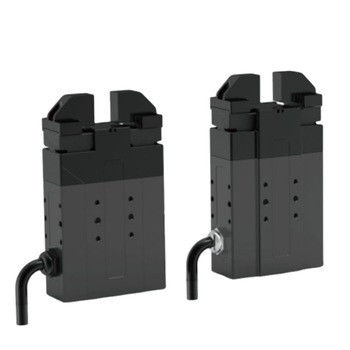

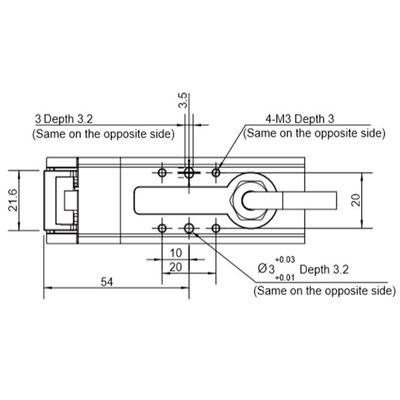

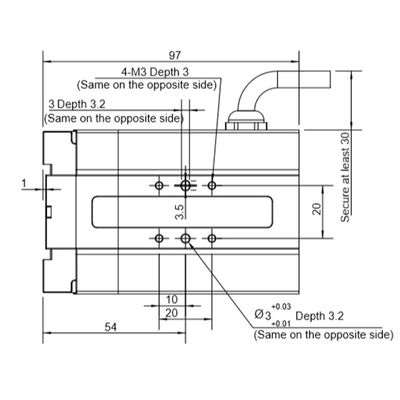

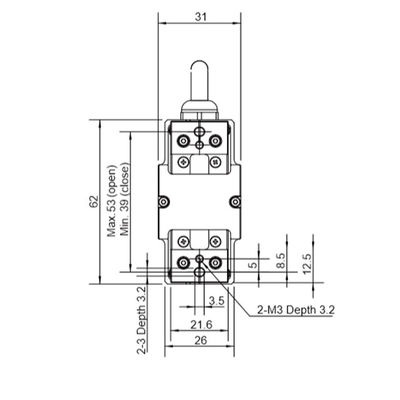

Detailed Images

Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device Universal-robots grip-pers collaborative robot DH-robotics PGE-8 chinese brand clamping device
