WLKATA robot is a brand of Beijing Tsinew Technologies Co., Ltd,located in Zhongguancun energy and security science and technology park.
WLKATA is a high-tech enterprise established by the research team of mining robot research center of China University of mining and Technology (Beijing),
relying on R & D institutions in China and the United States,include State University of New York, Stevens Institute of Technology, China University of mining and
Technology (Beijing) and WL Intelligent Manufacturing Research Center. Focus on artificial intelligence product development and AI robot education solution construction.

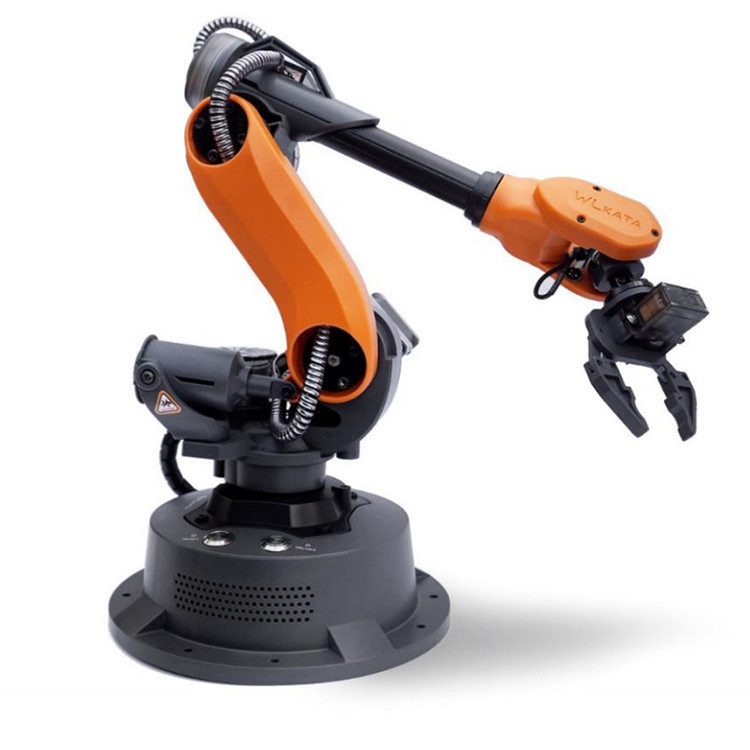

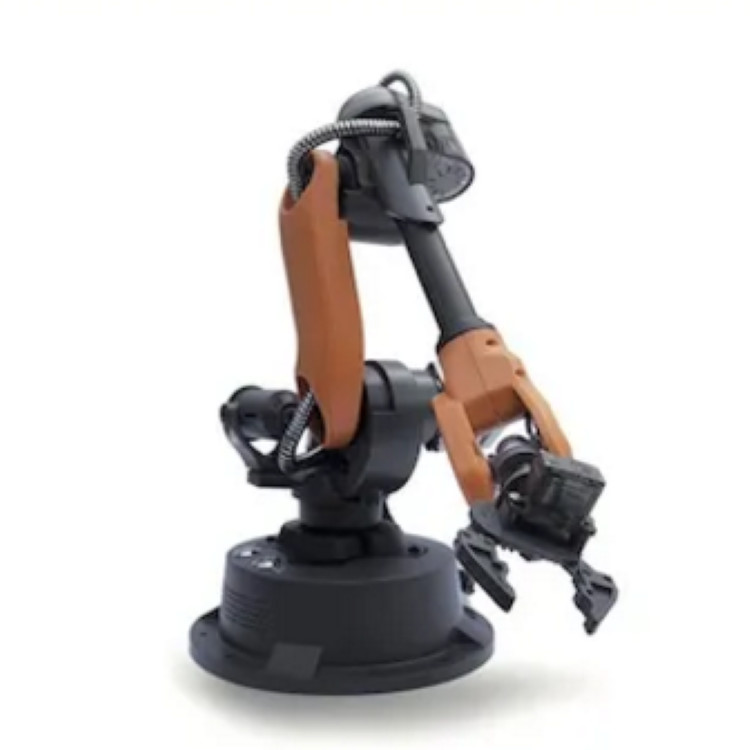

Wlkata mirobot is a desktop six axis robot with light and small intelligence. It is specially designed for steam youth robot science education and
independently developed by Beijing qinniu Chuangzhi Technology Co., Ltd. Mirobot has almost the same performance and operation as the real
industrial robot, which can really meet the needs of teaching, experiment and competition of robot engineering education in middle school and

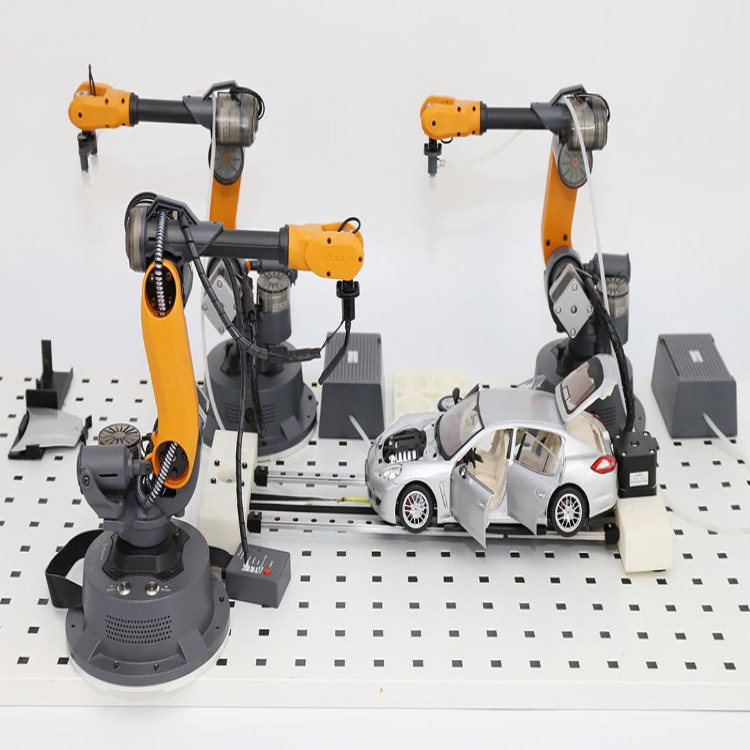

university. The product provides rich software and hardware operation modes and a variety of expansion interfaces, supports multiple equipment
linkage and intelligent production line construction, and brings more fun and creativity for robot competition and intelligent manufacturing training.
Mirobot implanted the dream of China intelligent manufacturing 2025 into every teenager's heart
| 型号 WL-MiroBAS-6R200-02MM | ||||||
Mirobot robot professional |
Axis number | 6 + 1 | ||||
| Max load | 250g | |||||
| Working range | 350mm | |||||
| Net weight | 1.5kg | |||||
| Communication Interface | USB / WiFi / Bluetooth | |||||
| Base size diameter | 160mm | |||||
| Axis motion parameters (Load 160g) |
1 axis: - 100 ° to + 100 ° Max speed 31 °/s | |||||
| 2-axis: - 60 ° to + 90 ° Max speed 65 °/s | ||||||
| 3-axis: - 180 ° to + 50 ° Max speed 28 °/s | ||||||
| 4-axis: - 180 ° to + 180 ° Max speed 110 °/s | ||||||
| 5-axis: - 180 ° to + 50 ° Max speed 33 °/s | ||||||
| 6-axis: - 180 ～ + 180 ° Max speed 66 °/s | ||||||
| Parameters of pen holder | diameter of pen hole: 10mm | |||||
| Sucker actuator parameters | Suction cup diameter: 10mm | |||||
| Pressure of sucker actuator: - 58kpa | ||||||
| Actuator parameters of steering gear clamp |
Tensile resultant force: 27.5mm | |||||
| Intensity: 8N | ||||||
| Parameters of flexible gripper actuator |
Tensile resultant force: 27.5mm | |||||
| Intensity: -58Kpa | ||||||
| Teaching device parameters | Voltage: 3.7V | |||||
| Power : 1000mAh | ||||||

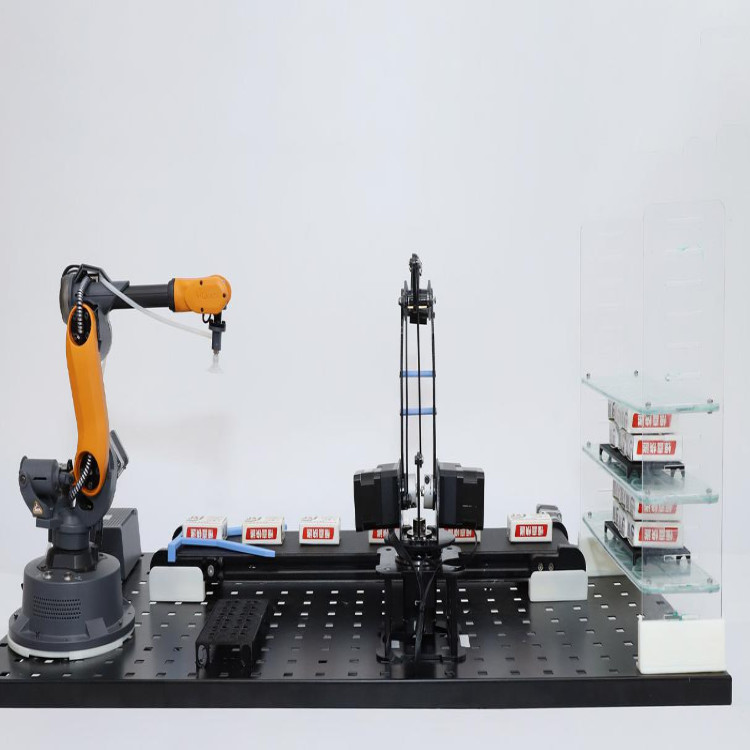

| Conveyor belt | Application | studio, grblcontroller 3.6, blockly graphical interface programming | ||||
| Equipped with color recognition sensor unit | ||||||
| Operating load | 1kg | |||||
| Effective carrying length | 600mm | |||||
| Max running speed Size 650mm * 210mm * 60MM Weight 2.27kg |
100 mm / s | |||||
| Size | 650mm * 210mm * 60MM | |||||
| Weight | 2.27kg | |||||
