6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 900mm Max Payload 5kg Armload 0.3 Kg

6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 900mm Max Payload 5kg Armload 0.3 Kg

ABB Articulated Robot Arm

Reach 900mm ABB Robot Arm

IP67 Articulated Robot Arm

Place of Origin:

China

Brand Name:

ABB

Model Number:

IRB 1200-5/0.9

Contact Us

Request A Quote
Product Details
Robot Version:
IRB 1200-5/0.9
Reach:
900mm
Payload:
54Kg
Armload:
0.3Kg
Protection:
Standard Robot(IP40) Optional
Mounting:
Any Angle
Weight:
54Kg
Controller:
IRC5 Compact/IRC5 Single Cabinet
Position Repeatability:
0.02mm
Accuracy:
0.02mm
Product Description

Specification

Robot version Reach(m) Payload(kg) Armload(kg)
IRB 1200-7/0.7 0.7 7 0.3
IRB 1200-5/0.9 0.9 5 0.3
Protection Standard robot(IP40) or IP67,Foundry Plus 2 based on IP67,Food Grade Lubricant and Clean Room(ISO class 3)based on IP67

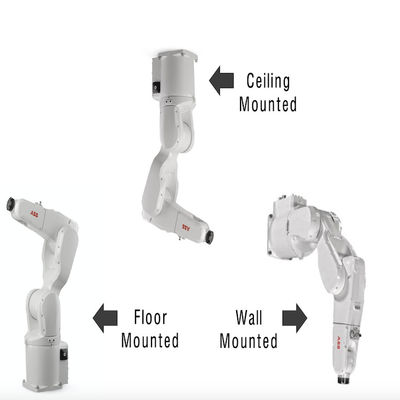

Mounting Any angle
Controllers IRC5 compact/IRC5 single cabinet
Integrated signal and power supply 10 signals on wrist
Integrated air supply 4 air on wrist(5 Bar)
Integrated ethernet One 100/10 Base-TX Ethernet port
Accuracy 0.02mm

Performance (according to ISO 9283)

Robot version

1 kg picking cycle

Reach(m)



Payload(kg)
25x300x25 mm 0.42s 0.42s
Max.TCP Acceleration 35m/s*s 36m/s*s
Acceleration time 0-1m/s 0.06s 0.06s
Position repeatability 0.02mm 0.025mm

Applications:Assembly/Material Handling/Machine Tending/Laser Marking/Polishing/Die Casting/Packaging6 Axis Industrial Articulated Robot Arm China Assembly Polishing Robot Reach 900mm Max Payload 5kg Armload 0.3 Kg 0
